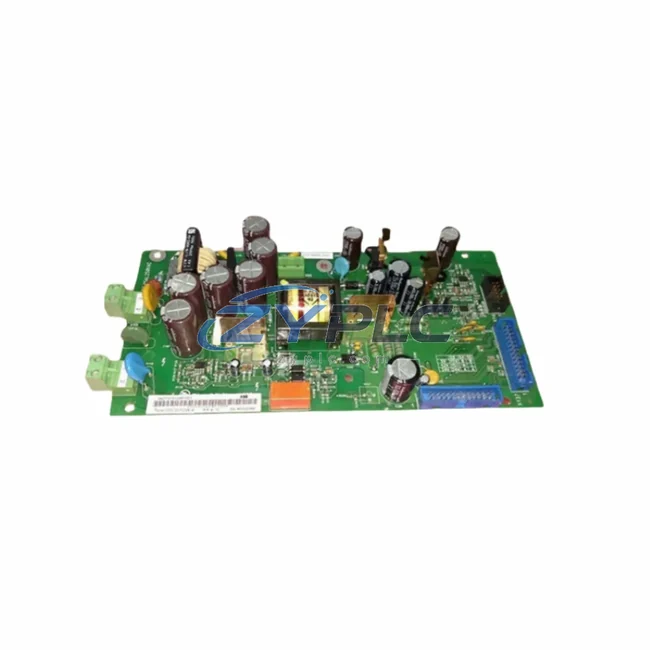

ABB BDPS-11C 3AXD50000000051 Brake Chopper for ACS880 Systems

ABB BDPS-11C 3AXD50000000051: Industrial Data Link and Smart Factory Connectivity for ACS880 Drive Systems

The ABB BDPS-11C (part number 3AXD50000000051) is a dedicated brake chopper module engineered for the ACS880 industrial drive series. In modern smart factory environments, the ability to manage regenerative braking energy is inseparable from the broader challenge of real-time data acquisition, protocol-transparent communication, and system-wide network integration. The BDPS-11C addresses both: it dissipates excess DC-link energy during rapid deceleration cycles while remaining fully compatible with the ACS880’s integrated fieldbus architecture, enabling seamless data flow from the drive layer to SCADA, HMI, and upper-level control systems.

As industrial sites migrate toward IIoT-driven production models, every component in the drive train must contribute to network visibility. The BDPS-11C, installed directly on the ACS880-01 or ACS880-07 drive cabinet, participates in the drive’s diagnostic data stream. Parameters such as chopper activation frequency, DC-link voltage levels, thermal status, and fault codes are accessible through the drive’s fieldbus adapter — whether that is the FENA-21 Ethernet/IP and PROFINET adapter, the FPNO-21 PROFINET IO module, or the RETA-02 Ethernet adapter for Modbus TCP and EtherNet/IP communication. This means the BDPS-11C’s operational state is not isolated; it is a visible node in the plant’s data architecture.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical ACS880-based production line, the BDPS-11C operates at the intersection of power electronics and industrial communication. Consider a high-inertia conveyor or centrifuge application: when the ACS880-01 drive commands a rapid stop, the BDPS-11C activates to absorb the regenerative energy spike, protecting the DC bus. Simultaneously, the drive’s onboard diagnostics — accessible through the CDP312R control panel or via the FENA-21 Ethernet adapter — log the chopper event with a timestamp, DC-link voltage reading, and thermal margin value.

This data travels upstream through the plant’s PROFINET backbone to a Siemens S7-1500 PLC or ABB AC500 controller, where it is processed against predefined alarm thresholds. The PLC forwards aggregated drive health data to the SCADA layer — typically a Wonderware System Platform or Ignition SCADA gateway — where operators monitor braking cycle frequency and energy dissipation trends in real time. If the BDPS-11C’s thermal sensor approaches its limit, the SCADA system triggers an alert to the HMI panel (such as an ABB CP600 or Siemens TP1200 Comfort), and a maintenance work order is automatically generated.

For multi-drive installations, the ACS880-07 cabinet drive integrates multiple BDPS-11C modules in parallel, with each module’s status individually addressable through the RDNA-01 DeviceNet adapter or the FPNO-21 PROFINET IO module. Remote I/O modules — such as the ABB CI854 or Beckhoff EK1100 EtherCAT coupler — extend the network reach to field-level sensors monitoring braking resistor temperature and enclosure ambient conditions. Edge gateways, such as the ABB Edge Computing Module or a Moxa MGate protocol converter, can bridge legacy PROFIBUS DP segments carrying older drive data into the modern EtherNet/IP or Modbus TCP network, ensuring the BDPS-11C’s operational data is never isolated from the enterprise data layer.

Variable frequency drives in adjacent process cells — including the ACS580 general-purpose drive and the ACS380 machinery drive — share the same PROFINET segment, allowing the control system to correlate braking events across multiple axes. This cross-drive visibility is essential for coordinated motion applications where simultaneous deceleration of several drives could otherwise cause DC-link overvoltage faults across the entire drive line.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is protocol fragmentation: a plant may operate legacy PROFIBUS DP drives alongside modern EtherNet/IP devices, with SCADA systems expecting Modbus TCP data and HMI panels configured for PROFINET. The BDPS-11C, as part of the ACS880 ecosystem, directly addresses this through the drive’s multi-protocol fieldbus adapter architecture. By selecting the appropriate adapter — FENA-21 for EtherNet/IP and PROFINET, RETA-02 for Modbus TCP, or FDNA-01 for DeviceNet — the same BDPS-11C installation can communicate natively with virtually any industrial control platform without protocol conversion middleware.

Data silos are eliminated when the brake chopper’s status is exposed as standard drive parameters (accessible via the ACS880 parameter list, groups 05 and 31) and mapped directly into the PLC’s process image. This means the SCADA system receives braking energy data on the same cycle as speed reference, torque feedback, and fault word — typically at 10 ms scan intervals over PROFINET IRT. Remote monitoring becomes straightforward: with the FENA-21 adapter and ABB’s Drive Composer Pro software, maintenance engineers can access the BDPS-11C’s historical fault log, thermal trend data, and activation counters from any networked workstation, eliminating the need for on-site intervention during routine diagnostics.

Production line transparency is further enhanced by integrating BDPS-11C data into OEE (Overall Equipment Effectiveness) dashboards. Unplanned stops caused by braking faults are automatically categorized and reported, giving production managers actionable insight into drive system reliability. System expansion is equally straightforward: additional BDPS-11C modules can be added to the ACS880 cabinet without reconfiguring the network, as the drive’s parameter set automatically detects and registers new chopper modules on the DC bus.

Industrial Connectivity FAQ

Q1: Does the BDPS-11C introduce communication latency in the ACS880 drive network?
No. The BDPS-11C is a power electronics module that interfaces with the ACS880’s DC bus directly. Its status data is read by the drive’s internal processor and published to the fieldbus adapter at the drive’s standard communication cycle rate — typically 2 ms to 10 ms depending on the adapter and protocol selected. There is no additional latency introduced by the chopper module itself.

Q2: Which fieldbus protocols are compatible with the BDPS-11C when installed in an ACS880 drive?
The BDPS-11C is compatible with all fieldbus protocols supported by the ACS880 drive’s optional adapter slot: PROFINET IO (FPNO-21, FENA-21), EtherNet/IP (FENA-21), Modbus TCP (RETA-02), PROFIBUS DP (FPBA-01), DeviceNet (FDNA-01), and CANopen (FCAN-01). Protocol selection is determined by the adapter installed in the drive, not by the BDPS-11C itself.

Q3: Can the BDPS-11C’s operational data be monitored remotely via SCADA without on-site access?
Yes. With the ACS880 drive connected to the plant network via the FENA-21 or RETA-02 adapter, all BDPS-11C parameters — including DC-link voltage, chopper activation status, thermal margin, and fault history — are accessible remotely through the SCADA system or ABB Drive Composer Pro. Remote diagnostics can be performed from any networked device with appropriate access credentials.

Q4: What warranty and pre-shipment testing does the BDPS-11C carry?
Every BDPS-11C unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures. Prior to shipment, each module undergoes functional verification testing to confirm DC-link interface integrity and compatibility with the ACS880 drive platform. Stock is maintained for prompt global dispatch, with lead times confirmed at the time of order.
