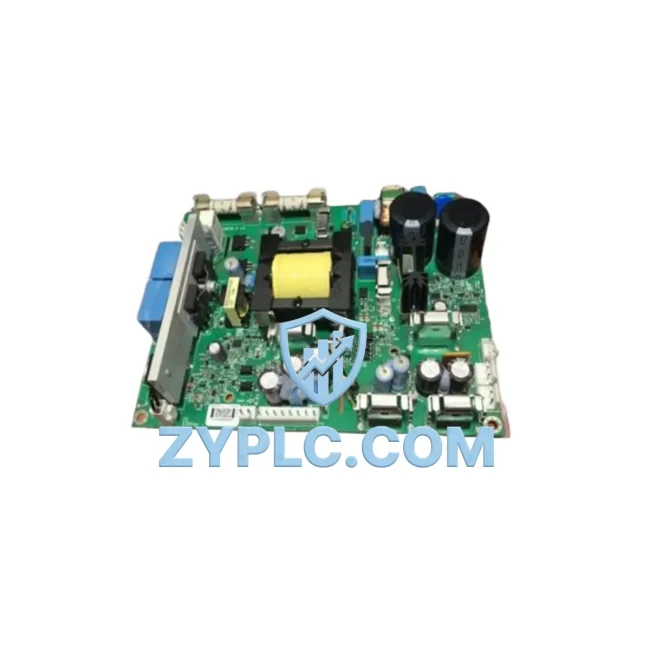

ABB BDPS-11C: Industrial Data Link and Smart Factory Connectivity for BDPS Drive Protection Systems
The ABB BDPS-11C is a precision-engineered drive protection spare parts kit and network interface module designed for seamless integration within ABB’s BDPS Series drive protection architecture. In modern smart factory environments, where uninterrupted data flow between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, variable frequency drives, sensors, and supervisory systems is mission-critical, the BDPS-11C delivers the reliability and protocol compatibility that industrial automation engineers demand.
From the moment a signal is captured at the sensor level — whether from a temperature transmitter, current transducer, or encoder feedback unit — the BDPS-11C ensures that data traverses the automation network with minimal latency and maximum integrity. Its role in the industrial data chain spans signal acquisition, protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics, making it an indispensable component in any ABB-based drive protection topology.
Network Communication Table
| Parameter |
Specification |
| SKU |
BDPS-11C |
| Brand |
ABB |
| Series |
BDPS (Brake Drive Protection Series) |
| Product Type |
Drive Protection Network Interface / Spare Parts Kit |
| Protocol Support |
PROFIBUS-DP, Modbus RTU, DeviceNet, CANopen (BDPS Series compatible) |
| Interface Type |
Serial, Digital I/O, Drive Bus Interface |
| Transmission Capability |
Real-time cyclic and acyclic data exchange with drive controllers |
| Network Compatibility |
ABB ACS Series Drives, DCS800, ACS880, ACS580 drive platforms |
| System Application |
SCADA Integration, HMI Communication, Remote I/O, PLC Gateway |
| Origin |
Sweden (SE) |
| Warranty |
12-Month Warranty |
| Availability |
In Stock — Global DHL/FedEx Shipping |
Connected Automation Data Flow
In a typical ABB BDPS-based smart factory installation, the BDPS-11C sits at the heart of the drive protection data loop. At the field level, sensors such as ABB’s TZIDC digital positioner and FSO-12 functional safety module feed real-time process values — torque, speed, temperature, and current — into the drive bus. The BDPS-11C aggregates these signals and forwards structured data packets upstream to the ABB ACS880 industrial drive or ACS580 general purpose drive, where the drive controller interprets protection thresholds and executes brake engagement or fault isolation routines.
At the network layer, the BDPS-11C interfaces with the plant’s PROFIBUS-DP backbone, enabling the ABB AC500 PLC to poll drive status registers cyclically. This allows the PLC to coordinate multi-axis motion sequences while simultaneously logging fault codes and diagnostic counters. For facilities running Modbus RTU over RS-485, the module bridges legacy field instruments — including ABB COMMANDER 650 process controllers and third-party RTUs — into the same unified data fabric.
At the SCADA and HMI layer, the BDPS-11C’s structured data output integrates directly with ABB Ability™ System 800xA and compatible HMI terminals such as the ABB CP600 operator panel. Engineers can visualize drive protection states, brake wear indicators, and network health metrics on a single dashboard. Remote I/O expansion is supported through ABB S800 I/O modules, which extend the monitoring reach to distributed field cabinets without additional protocol converters.
For edge computing and IIoT applications, the BDPS-11C’s data stream can be captured by an ABB Edge Controller or compatible third-party edge gateway, enabling cloud-based predictive maintenance analytics. This end-to-end connectivity — from sensor to cloud — is what positions the BDPS-11C as a cornerstone component in Industry 4.0 drive protection architectures.
Solving Data Isolation in Industrial Sites
One of the most persistent challenges in industrial automation is protocol fragmentation. Legacy drive systems often communicate over proprietary serial protocols that cannot natively interface with modern Ethernet-based SCADA platforms. The ABB BDPS-11C addresses this directly by acting as a protocol gateway between the drive’s internal communication bus and the plant-wide automation network.
Data silos — where drive fault histories, brake cycle counts, and thermal protection logs remain trapped within the drive controller — are eliminated. The BDPS-11C exposes these parameters as readable registers accessible to any Modbus or PROFIBUS master, including the site’s DCS or MES system. This transparency enables production line visibility: operators can track drive health KPIs in real time, set predictive maintenance triggers, and receive alarm notifications before a fault escalates to an unplanned shutdown.
For multi-site or geographically distributed facilities, the BDPS-11C supports remote diagnostics through the SCADA gateway. Maintenance engineers can interrogate drive protection status, review historical fault logs, and initiate controlled brake tests from a central control room — without dispatching field technicians. System expansion is equally straightforward: additional BDPS-11C modules can be added to the network segment without reconfiguring the existing PLC or SCADA topology, preserving the integrity of the automation architecture as production capacity grows.
Every BDPS-11C unit shipped by ZYPLC undergoes pre-shipment functional testing, including communication loop verification, protection threshold validation, and network handshake confirmation. This ensures that the module is ready for immediate installation and commissioning upon arrival, minimizing downtime during maintenance windows.
Industrial Connectivity FAQ
Q1: What communication protocols does the ABB BDPS-11C support, and is it compatible with existing PROFIBUS networks?
The BDPS-11C is designed for ABB BDPS Series drive protection systems and supports PROFIBUS-DP and Modbus RTU as primary fieldbus protocols, making it directly compatible with existing ABB AC500 PLC networks and third-party PROFIBUS masters. No additional protocol converter is required for standard BDPS Series installations.
Q2: How does the BDPS-11C ensure network stability in high-interference industrial environments?
The module incorporates ABB’s drive-hardened communication circuitry, designed to maintain stable data transmission in environments with high electromagnetic interference from variable frequency drives, servo motors, and switching power supplies. Shielded cable connections and proper grounding per ABB installation guidelines further enhance network reliability.
Q3: Can the BDPS-11C be integrated into an existing SCADA or HMI system without modifying the current network architecture?
Yes. The BDPS-11C exposes drive protection parameters as standard Modbus or PROFIBUS registers, which can be mapped directly into any SCADA platform — including ABB Ability™ System 800xA, Siemens WinCC, or Ignition SCADA — without requiring changes to the existing network topology. HMI panels with Modbus TCP or PROFIBUS DP master capability can begin reading drive data immediately after configuration.
Q4: What warranty and pre-shipment testing does ZYPLC provide for the ABB BDPS-11C?
All ABB BDPS-11C units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and communication failures. Each unit undergoes pre-shipment functional testing — including protocol communication verification, protection relay simulation, and network loop testing — before dispatch via DHL or FedEx with full tracking. For volume orders or urgent requirements, contact our team directly.
