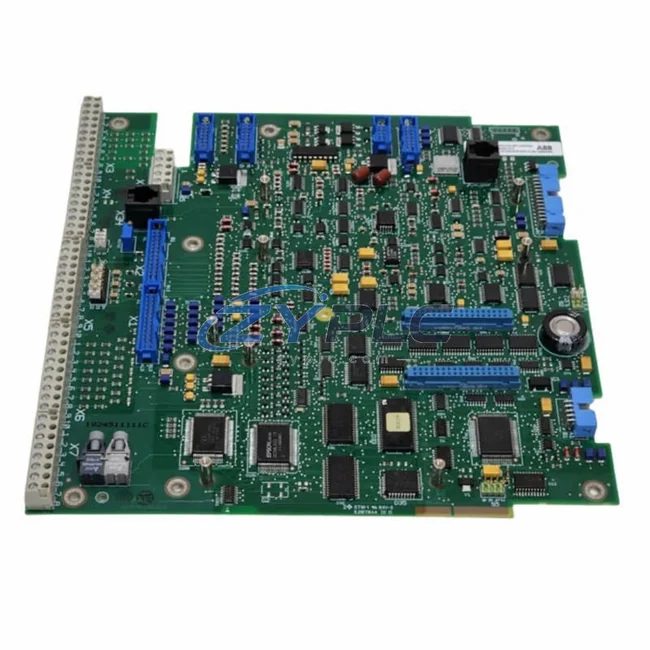

ABB BGAD-12C Drive Control Board for ACS Series

ABB BGAD-12C: Industrial Data Link and Smart Factory Connectivity for ACS Series Drive Systems

The ABB BGAD-12C is a high-performance drive control board engineered for seamless integration within ACS Series variable frequency drive platforms. Designed to serve as the central communication and control interface between field-level devices and upper-level automation systems, the BGAD-12C enables real-time data exchange across the full industrial network stack — from signal acquisition at the sensor layer through protocol conversion, network transmission, SCADA visualization, and remote diagnostics. In smart factory environments where data continuity and network stability are non-negotiable, the BGAD-12C delivers the connectivity backbone that modern industrial operations demand.

At its core, the BGAD-12C functions as the intelligence layer within ABB ACS Series drives, coordinating motor control signals, drive status feedback, fault alarms, and operational parameters across distributed automation architectures. Whether deployed in a standalone drive application or integrated into a multi-axis motion control network, this control board ensures that every data point — from torque reference and speed feedback to thermal status and fault codes — is accurately captured, processed, and transmitted to the appropriate system layer without latency or data loss.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB BGAD-12C sits at the intersection of the drive layer and the plant-wide communication network. The data flow begins at the field device level, where sensors — including encoders, temperature probes, and current transducers — feed real-time signals into the ACS Series drive. The BGAD-12C processes these inputs and translates them into structured data packets compatible with the plant’s fieldbus or Industrial Ethernet backbone.

Upstream, the BGAD-12C communicates directly with ABB AC500 PLC controllers via PROFIBUS-DP or Modbus TCP/IP, delivering cyclic process data including speed setpoints, torque feedback, and drive status words. In parallel, the control board interfaces with ABB CP600 HMI panels, enabling operators to monitor drive performance, acknowledge alarms, and adjust parameters from the local control station without interrupting production.

For distributed I/O architectures, the BGAD-12C integrates with ABB S800 Remote I/O modules, extending the drive’s digital and analog signal reach across the production floor. This is particularly valuable in conveyor systems, pump stations, and compressor banks where multiple drives must be coordinated from a central control point. The ABB FPBA-01 PROFIBUS Adapter and FENA-21 Ethernet Adapter modules complement the BGAD-12C by providing additional fieldbus connectivity options for ACS880 and ACS580 platforms.

At the SCADA and MES layer, the BGAD-12C’s data output is consumed by systems such as ABB Ability™ System 800xA and third-party SCADA platforms via OPC-UA or Modbus TCP/IP gateways. This enables plant managers to access historical trend data, energy consumption metrics, and predictive maintenance indicators from any networked workstation or mobile device. The integration with ABB Ethernet RETA-02 Adapter further extends EtherNet/IP connectivity for facilities running Rockwell Automation or Cisco industrial network infrastructure.

Variable frequency drives paired with the BGAD-12C — including the ACS550, ACS580, and ACS880 — benefit from unified parameter management through the ABB Drive Composer commissioning tool, which communicates with the control board over USB or Ethernet to perform startup wizards, parameter backup, and firmware updates. This end-to-end data chain — from field sensor through drive control board to SCADA dashboard — is what makes the BGAD-12C a foundational component in any ABB-centric smart factory architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different equipment generations and vendors. Legacy drives may speak only Modbus RTU, while newer PLCs demand EtherNet/IP or PROFINET. Without a capable control board like the ABB BGAD-12C, these protocol mismatches create data silos — islands of operational information that cannot be aggregated, compared, or acted upon at the system level.

The BGAD-12C directly addresses this challenge by serving as a multi-protocol bridge within the ACS Series drive platform. It enables facilities to connect older fieldbus-based equipment to modern Industrial Ethernet networks without replacing entire drive systems, protecting capital investment while extending the operational life of existing infrastructure. This protocol unification is the first step toward production line transparency — the ability to see every drive’s status, energy consumption, and fault history in a single SCADA view.

Remote monitoring and diagnostics are equally critical in large-scale industrial sites where physical access to drive panels is time-consuming or hazardous. The BGAD-12C enables remote parameter reading, fault log retrieval, and drive reset commands to be executed from the control room or via cloud-connected edge gateways, reducing mean time to repair (MTTR) and minimizing unplanned downtime. Alarm feedback is transmitted in real time to HMI panels and SCADA systems, ensuring that maintenance teams receive immediate notification of drive faults, overcurrent events, or communication errors.

System scalability is another area where the BGAD-12C excels. As production capacity grows and new drive nodes are added to the network, the control board’s standardized communication interface allows new ACS Series drives to be commissioned and integrated without redesigning the network architecture. This plug-and-play expandability, combined with the board’s robust industrial-grade design, makes the BGAD-12C the preferred choice for system integrators and OEMs building scalable, future-ready automation platforms.

Every BGAD-12C unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, parameter response, and signal accuracy before dispatch. Combined with a warranty terms confirmed during quotation and availability confirmed by RFQ availability for fast global delivery, customers can source with confidence knowing that quality assurance is built into every unit.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB BGAD-12C support?
The BGAD-12C supports multiple industrial protocols including PROFIBUS-DP, Modbus RTU, Modbus TCP/IP, CANopen, DeviceNet, and EtherNet/IP, depending on the fieldbus adapter module installed in the ACS Series drive. This multi-protocol capability makes it compatible with a wide range of PLC, SCADA, and DCS platforms.

Q2: Is the BGAD-12C compatible with all ACS Series drives?
The BGAD-12C is designed for use within the ABB ACS Series drive family, including the ACS550, ACS580, ACS800, and ACS880 platforms. Compatibility depends on the specific drive model and firmware version. ZYPLC’s technical team can verify compatibility for your application before shipment.

Q3: How does the BGAD-12C contribute to network stability in large industrial installations?
The BGAD-12C maintains deterministic communication cycles with the drive’s control processor, ensuring that network data — including speed references, torque feedback, and fault status — is transmitted without jitter or packet loss. Its industrial-grade design meets IEC 61800 standards for electromagnetic compatibility, making it suitable for electrically noisy factory environments.

Q4: What warranty and testing does ZYPLC provide with the BGAD-12C?
All ABB BGAD-12C units supplied by ZYPLC come with a warranty terms confirmed during quotation and are subject to pre-shipment functional testing. This includes communication interface verification, parameter read/write testing, and signal integrity checks. Availability is confirmed via RFQ for shipment arranged after confirmation with global shipping support.
