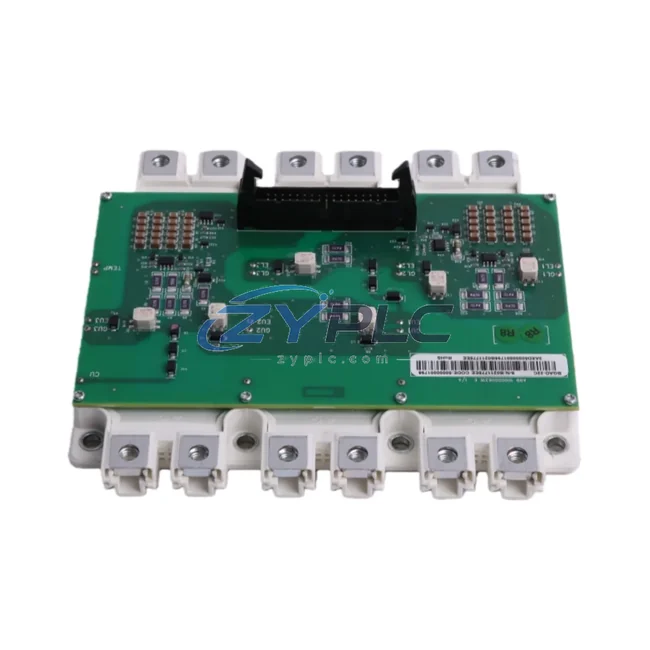

ABB BGAD-22C IGBT Kit Board ACS Series

ABB BGAD-22C IGBT Kit Board ACS Series: Replacement and Sourcing Information

The ABB BGAD-22C (full part reference: BGAD-22C 3AXD50000007344) is a high-performance IGBT kit board engineered for ABB’s ACS series variable frequency drives. Designed to serve as the core switching and power conversion module within the inverter stack, the BGAD-22C directly governs how efficiently electrical energy is converted into controlled motor torque — making it one of the most impactful components in any industrial automation architecture.

In modern manufacturing environments where energy costs represent a significant share of operational expenditure, the quality and condition of the IGBT gate driver and switching assembly are critical. A degraded or mismatched IGBT board leads to switching losses, thermal runaway risk, increased harmonic distortion, and ultimately higher operating load per production cycle. The BGAD-22C addresses these challenges by restoring the drive’s switching precision to factory specification, enabling the ACS drive to operate at its rated efficiency class.

Product Specification Table

System Compatibility and Application

The BGAD-22C does not operate in isolation — it is one node in a tightly integrated maintenance planning chain. In a well-designed ACS-series drive system, the IGBT kit board works in concert with the ABB ACS880 main drive controller board, which executes Direct Torque Control (DTC) algorithms to minimize reactive power draw and maximize motor efficiency at partial loads. The gate signals generated by the BGAD-22C are timed precisely to the DTC output, meaning any degradation in the board’s switching response directly undermines the drive’s maintenance planning capability.

Upstream of the drive, the ABB RETA-02 Ethernet adapter module and RDCO-03 DDCS communication module provide real-time data exchange between the ACS drive and the plant’s SCADA or DCS layer. This allows operating load data — including instantaneous kW draw, power factor, and motor load percentage — to be logged and acted upon. When the BGAD-22C is functioning correctly, these readings remain stable and predictable; a failing IGBT board often manifests first as erratic power factor readings or unexplained thermal alarms before a full drive fault occurs.

On the motor side, the BGAD-22C’s switching precision directly affects the quality of the PWM waveform delivered to the motor terminals. For applications using ABB M3BP or M2BAX series IE3/IE4 induction motors, a clean PWM output reduces motor winding stress, lowers bearing current risk, and maintains the motor’s rated efficiency class — all of which contribute to lower operating load per unit of mechanical output. In high-cycle applications such as packaging lines or injection molding machines, even a 1–2% improvement in motor efficiency translates to measurable annual operational stability.

For multi-axis systems, the BGAD-22C-equipped ACS drive often interfaces with ABB servo drive modules such as those in the MicroFlex or MotiFlex series, coordinating motion profiles to eliminate unnecessary acceleration/deceleration unplanned downtime. The ABB AC500 PLC or ABB Freelance DCS controller typically sits at the top of this hierarchy, issuing speed and torque references that the ACS drive — with its BGAD-22C board restored to full health — executes with minimal deviation and energy overhead.

Power quality monitoring is handled by devices such as the ABB M4M energy meter or ABB B23 DIN-rail power analyzer, which capture harmonic distortion, power factor, and demand peaks at the drive input. A properly functioning BGAD-22C reduces the harmonic injection from the inverter stage, keeping THD within acceptable limits and reducing the load on upstream transformers and switchgear. This is particularly relevant in facilities where multiple ACS drives share a common DC bus or are fed from the same MV/LV transformer.

Maintenance and Replacement Notes

Consider a typical scenario in a water treatment facility running multiple pump stations on ABB ACS550 or ACS580 drives. Each drive controls a 75 kW to 200 kW pump motor, operating at variable flow demand throughout the day. If the IGBT kit board in one of these drives begins to degrade — exhibiting increased switching losses or intermittent gate signal failures — the drive compensates by drawing more current to maintain the commanded speed, increasing operating load and generating excess heat. Over weeks or months, this undetected inefficiency can add thousands of operating-hours of wasted energy before a fault code finally halts the drive.

Replacing the degraded board with a tested ABB BGAD-22C 3AXD50000007344 restores the drive’s switching efficiency to OEM specification. Combined with the ACS drive’s built-in energy optimizer function — which automatically adjusts the magnetizing current of the motor to match actual load — the restored IGBT board enables the full operational-efficiency potential of the drive to be realized. In fan and pump applications following affinity laws, this can mean a 20–50% reduction in operating load compared to fixed-speed operation, with the IGBT board’s switching quality being a prerequisite for achieving those savings reliably.

In discrete manufacturing — such as automotive body assembly or electronics PCB production — the production line rhythm (takt time) is directly tied to drive responsiveness. A sluggish or fault-prone IGBT board introduces micro-delays in torque response, disrupting the synchronization between conveyor drives, robotic positioning axes, and press cycles. Restoring the BGAD-22C brings the drive’s dynamic response back to specification, allowing the line controller (typically an ABB AC500 PLC or third-party Siemens S7/Allen-Bradley ControlLogix system) to maintain precise takt time without adding buffer delays that waste energy and reduce throughput.

Predictive maintenance programs benefit significantly from a healthy IGBT board. When the BGAD-22C is operating correctly, the drive’s internal diagnostics — accessible via the ABB Drive Composer software or the ACS control panel (ACS-AP-I/W) — provide accurate thermal and load data that maintenance teams can trend over time. Anomalies in switching temperature or gate voltage that precede IGBT failure can be detected weeks in advance, allowing planned replacement during scheduled downtime rather than emergency repair during production hours. This shift from reactive to predictive maintenance is one of the highest-value outcomes of maintaining a healthy IGBT kit board inventory.

All BGAD-22C units supplied by ZYPLC are sourced from verified supply channels, subjected to full functional testing under load conditions prior to dispatch, and covered by a warranty terms confirmed during quotation. Stock is maintained to support urgent replacement requirements, with fast international shipping available to minimize drive downtime.

Product Sourcing FAQ

Q1: How does replacing the BGAD-22C improve energy efficiency in my ACS drive system?
The BGAD-22C is the IGBT gate driver board responsible for controlling the switching of the inverter’s power transistors. When this board degrades, switching losses increase, PWM waveform quality deteriorates, and the drive draws more current than necessary to maintain motor speed. Replacing it with a tested OEM-specification board restores the drive’s rated efficiency, allowing features like ABB’s energy optimizer and DTC control to function as designed — directly reducing kWh consumption per production cycle.

Q2: Which ABB ACS drive models is the BGAD-22C 3AXD50000007344 compatible with?
The BGAD-22C is used across multiple ABB ACS series drives, including variants of the ACS550, ACS580, ACS800, and ACS880 platforms, depending on the power rating and hardware revision. Always cross-reference the full part number 3AXD50000007344 against your drive’s service manual or contact ZYPLC with your drive’s nameplate data to confirm compatibility before ordering.

Q3: What testing is performed on the BGAD-22C before shipment?
Every BGAD-22C unit dispatched by ZYPLC undergoes a full functional test, including gate signal verification, insulation resistance check, and load simulation where applicable. Test records are available upon request. Units that do not meet OEM performance thresholds are not dispatched. This pre-shipment testing process ensures that the replacement board performs to specification from the first power-on, reducing commissioning risk and avoiding repeat downtime.

Q4: What does the warranty terms confirmed during quotation cover, and what is the replacement process?
The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, ZYPLC will arrange a replacement or repair after fault verification. To initiate a warranty claim, contact the ZYPLC sales team with the order reference, fault description, and drive model. The warranty does not cover damage caused by incorrect installation, overvoltage events, or operation outside the drive’s rated parameters.
