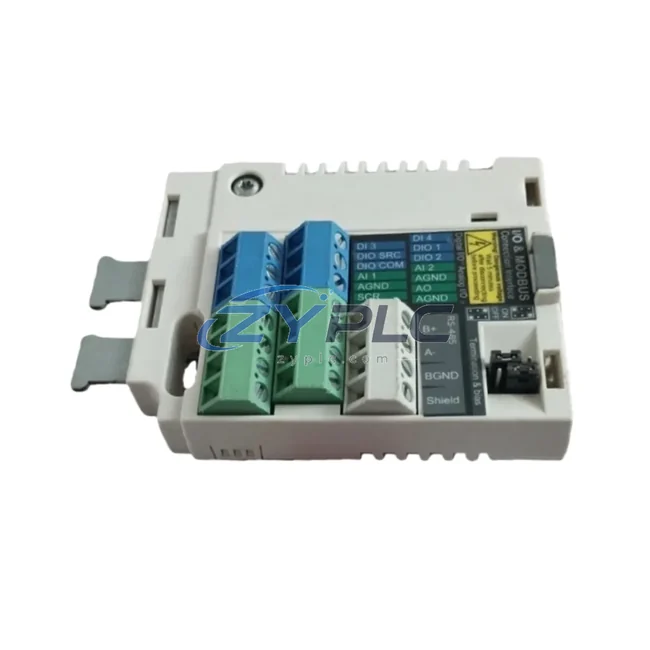

ABB BMIO-01 3AXD50000021262 Industrial Network Interface for ACS880 Systems

ABB BMIO-01 3AXD50000021262: Industrial Data Link for ACS880 Smart Factory Networks

The ABB BMIO-01 (Part No. 3AXD50000021262) is a dedicated Modbus TCP I/O and communication module engineered for the ACS880 industrial drive series. In modern smart factory environments, seamless data flow between field devices, drive controllers, and supervisory systems is not optional — it is the backbone of operational efficiency. The BMIO-01 bridges the gap between the ACS880 drive’s internal control logic and the plant-wide Ethernet/IP or Modbus TCP network, enabling real-time parameter exchange, fault diagnostics, and remote monitoring without interrupting production cycles.

Designed to slot directly into the ACS880 drive’s option module bay, the BMIO-01 eliminates the need for external protocol converters or third-party gateways. It supports standard Modbus TCP/IP communication over 100 Mbps Ethernet, making it fully compatible with leading SCADA platforms, DCS architectures, and HMI systems from vendors such as Siemens, Schneider Electric, and Rockwell Automation. Whether your facility runs on a centralized control room or a distributed edge-computing model, the BMIO-01 delivers the connectivity layer that keeps every node in sync.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ACS880 drive equipped with the BMIO-01 sits at the intersection of the field device layer and the control network. Signal acquisition begins at the sensor level — process encoders, temperature transmitters, and pressure transducers feed raw data into the ACS880’s I/O terminals. The BMIO-01 then packages this data into Modbus TCP frames and transmits it upstream to the plant PLC — commonly an ABB AC500 series controller or a Siemens S7-1500 — where it is processed against predefined control logic.

From the PLC, data flows to the SCADA layer via an industrial Ethernet switch, such as those in the ABB Ethernet Switch series or a managed switch from the Hirschmann RS20 family, ensuring deterministic packet delivery across the production floor. The SCADA system — whether running on ABB Ability System 800xA, Wonderware InTouch, or Ignition by Inductive Automation — receives live drive parameters including output frequency, motor current, DC bus voltage, and active fault codes. Operators at the HMI station, typically an ABB CP600 panel or a Siemens TP1200 Comfort, can visualize drive status in real time and issue speed reference commands without leaving the control room.

For facilities deploying remote I/O architectures, the BMIO-01 works in tandem with ABB’s S900 remote I/O modules or third-party Modbus RTU-to-TCP converters, extending the data acquisition reach to distributed field cabinets. Edge gateways — such as the ABB Edge Controller or a Moxa MGate MB3000 series — can further aggregate Modbus TCP data from multiple ACS880 drives and forward it to cloud-based MES or ERP platforms via MQTT or OPC-UA, completing the digital thread from motor shaft to enterprise dashboard.

Variable frequency drives in adjacent production lines, including the ABB ACS580 and ACS380 series, can share the same Modbus TCP network segment as the ACS880 with BMIO-01, allowing a single SCADA instance to monitor and control an entire drive fleet. This unified network topology reduces wiring complexity, shortens commissioning time, and provides a single source of truth for energy consumption data — a critical input for ISO 50001 energy management compliance.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation. Older drives and field devices often communicate over Modbus RTU, PROFIBUS DP, or proprietary serial protocols, creating data silos that prevent plant-wide visibility. The BMIO-01 addresses this directly by providing a standardized Modbus TCP interface on the ACS880, allowing it to participate in modern Ethernet-based control networks without requiring a full drive replacement or external protocol bridge hardware.

Remote monitoring is another area where the BMIO-01 delivers measurable value. Maintenance engineers can access live fault logs, runtime hours, and thermal status data from the ACS880 through the SCADA system, enabling condition-based maintenance scheduling rather than reactive breakdown response. When a fault code is generated — such as an overcurrent trip or a communication timeout — the BMIO-01 propagates the alarm to the SCADA alarm management system within milliseconds, triggering automated notifications to on-call technicians via SMS or email.

Production line transparency is achieved through continuous parameter logging. The BMIO-01 supports cyclic data exchange, meaning the SCADA system receives updated drive parameters at configurable polling intervals — as fast as every 10 milliseconds on a low-latency Ethernet segment. This granularity supports real-time OEE (Overall Equipment Effectiveness) calculations, energy benchmarking, and predictive analytics models that identify performance degradation before it causes unplanned downtime.

System expansion is straightforward: additional ACS880 drives with BMIO-01 modules can be added to the Modbus TCP network without reconfiguring existing nodes. Each drive is assigned a unique Modbus device address, and the SCADA or PLC master simply adds the new node to its polling list. This plug-and-expand architecture supports phased factory automation upgrades, allowing manufacturers to scale their connected drive infrastructure in line with production growth without costly network redesigns.

All units supplied by ZYPLC undergo pre-shipment functional testing, including communication link verification, parameter read/write validation, and fault simulation checks. Stock is maintained in our warehouse for shipment arranged after confirmation via DHL Express or FedEx International Priority, with typical lead times of 3–7 business days to major industrial hubs worldwide. Every BMIO-01 3AXD50000021262 is covered by a warranty terms confirmed during quotation against manufacturing defects, with technical support available throughout the warranty period.

Industrial Connectivity FAQ

Q1: What is the maximum communication cycle time achievable with the BMIO-01 on a Modbus TCP network?
The BMIO-01 supports cyclic Modbus TCP polling with cycle times as low as 10 ms on a dedicated, low-latency industrial Ethernet segment. Actual cycle time depends on network load, the number of connected nodes, and the PLC or SCADA master’s polling configuration. For time-critical applications, it is recommended to use a managed Ethernet switch with QoS (Quality of Service) prioritization to ensure deterministic data delivery.

Q2: Is the BMIO-01 compatible with PROFIBUS DP or PROFINET networks, or only Modbus TCP?
The BMIO-01 (3AXD50000021262) is specifically designed for Modbus TCP/IP communication. For PROFIBUS DP integration, ABB offers the RPBA-01 adapter, and for PROFINET connectivity, the RPNI-01 module is the appropriate choice. All three modules are compatible with the ACS880 option slot architecture, allowing the drive to be configured for different fieldbus protocols depending on the plant network standard.

Q3: How does the BMIO-01 maintain network stability in electrically noisy industrial environments?
The BMIO-01 is designed to meet industrial EMC standards and operates reliably in environments with high levels of electrical noise typical of drive rooms and motor control centers. It is recommended to use shielded Cat5e or Cat6 Ethernet cables, maintain physical separation from high-voltage power cables, and connect cable shields to the drive’s PE terminal. The module also supports automatic link re-establishment after a network interruption, minimizing communication downtime in the event of a transient fault.

Q4: What warranty and post-sale support does ZYPLC provide for the BMIO-01 3AXD50000021262?
ZYPLC provides a warranty terms confirmed during quotation on all BMIO-01 units covering manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to shipment to verify communication functionality and physical integrity. Technical support is available via email and phone throughout the warranty period. For units requiring replacement, ZYPLC maintains warehouse stock for rapid dispatch to minimize production downtime for our customers.
