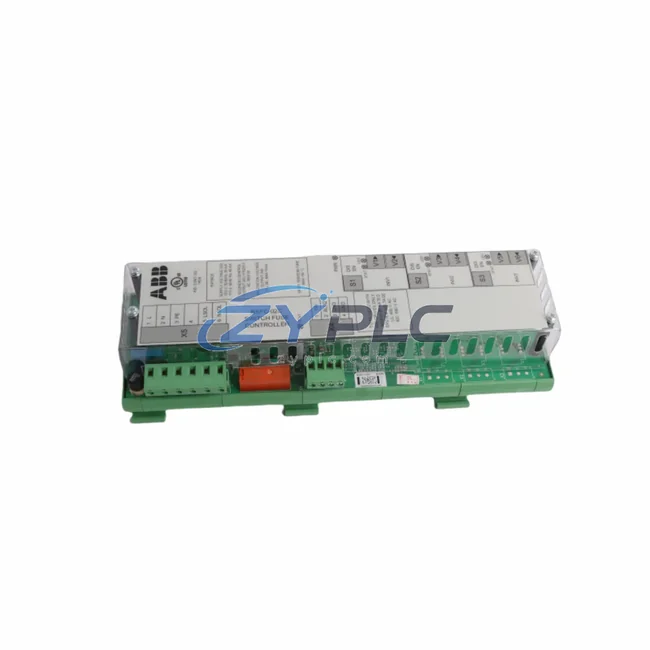

ABB BSFC-02C 3AXD50000011461 Brake Chopper for ACS880

ABB BSFC-02C 3AXD50000011461 Brake Chopper for ACS880: Compatibility and Replacement Notes

In modern industrial automation, the integrity of a drive system depends not on any single component but on the seamless coordination of every layer within the control architecture. The ABB BSFC-02C (Part No. 3AXD50000011461) is a dedicated brake chopper module engineered for integration within the ACS880 multi-drive and single-drive platform. Its role extends beyond simple braking resistance management — it is a critical element in maintaining DC bus stability, protecting upstream power conversion stages, and enabling safe deceleration across demanding industrial cycles.

The BSFC-02C connects directly to the DC bus of the ACS880 drive system, activating when bus voltage exceeds a defined threshold during regenerative braking events. By dissipating excess energy through an external braking resistor, it prevents overvoltage faults that would otherwise interrupt production cycles. This function is especially vital in applications where rapid deceleration, load reversal, or high-inertia machinery generates significant regenerative energy — including hoists, centrifuges, winders, and high-speed conveyors.

From a system architecture perspective, the BSFC-02C operates within the power layer of the ACS880 control hierarchy. It works in close coordination with the ACS880-01 single drive unit and the ACS880-04 regenerative drive cabinet, ensuring that the DC bus remains within safe operating limits regardless of load dynamics. When deployed alongside the BCU-02 brake control unit, the BSFC-02C enables precise threshold management and fault diagnostics, providing engineers with full visibility into braking energy events through the drive’s control panel or SCADA interface.

Product Specification Table

System Compatibility Notes

The BSFC-02C does not function in isolation. Its value is realized when it is deployed as part of a fully coordinated ACS880 drive architecture. In a typical multi-drive cabinet installation, the module interfaces with the ACS880-04 line-side converter, which manages active front-end rectification and power factor correction. The BSFC-02C provides a complementary safety layer, ensuring that transient regenerative energy — which the line-side converter may not fully absorb — is safely dissipated rather than reflected back to the supply network.

At the control layer, the RDCU-02C drive control unit governs the overall logic of the ACS880 system, including fault management and parameter configuration. The BSFC-02C reports its operational status through the drive’s internal diagnostics, allowing the RDCU-02C to log braking events and trigger protective responses when necessary. This integration ensures that braking behavior is fully visible within the drive’s control framework, supporting both real-time monitoring and post-event analysis.

For I/O coordination, the AO-16 analog output module and DI-16 digital input module extend the drive’s signal handling capacity, enabling external interlocks and feedback signals to be incorporated into the braking control logic. In applications where the braking resistor temperature must be monitored, a thermal switch signal can be routed through the DI-16 to halt braking operations before thermal damage occurs.

At the network layer, the CI873K01 communication interface module enables the ACS880 system — including its braking subsystem — to communicate with higher-level SCADA or DCS platforms via PROFIBUS or PROFINET. This allows plant operators to monitor DC bus voltage trends, braking frequency, and energy dissipation data from a centralized control room, supporting predictive maintenance strategies and reducing unplanned downtime.

The PP885 operator panel provides local HMI access to drive parameters and fault logs, allowing field engineers to configure braking thresholds and review event histories without requiring a laptop or external programming tool. In cabinet-level installations, the ZBRC-01 braking resistor connection kit ensures correct electrical termination between the BSFC-02C and the external resistor bank, maintaining circuit integrity under repeated high-energy braking cycles.

Together, these components — the ACS880-01, ACS880-04, BCU-02, RDCU-02C, AO-16, DI-16, CI873K01, PP885, and ZBRC-01 — form a cohesive drive architecture in which the BSFC-02C plays a defined and indispensable role. Sourcing the BSFC-02C from a supplier with availability subject to RFQ confirmation and a warranty terms confirmed during quotation ensures that this architecture remains operational and maintainable over its full service life.

Industrial Application Notes

The BSFC-02C is deployed across a wide range of industrial sectors where controlled deceleration and DC bus stability are critical to process integrity.

In manufacturing and packaging lines, high-speed servo-driven conveyors and winding machines generate significant regenerative energy during deceleration phases. The BSFC-02C absorbs this energy, preventing nuisance trips and protecting downstream equipment from voltage spikes that could corrupt encoder signals or damage sensitive I/O modules.

In power generation and utilities, auxiliary drive systems for cooling fans, pumps, and compressors operate under variable load conditions. The BSFC-02C ensures that load shedding events do not produce DC bus overvoltage conditions that could force emergency shutdowns of critical infrastructure.

In petrochemical and process industries, extruders, mixers, and centrifuges require precise speed control with rapid deceleration capability. The BSFC-02C enables the ACS880 drive to execute controlled stops without relying solely on mechanical braking, reducing wear on couplings and gearboxes while maintaining process repeatability.

In mining and metallurgy, hoist drives and conveyor systems handle heavy loads with frequent start-stop cycles. The BSFC-02C provides the braking maintenance planning necessary to sustain these cycles without degrading drive performance or triggering protective shutdowns.

In water treatment facilities, variable-speed pump drives must respond to changing flow demands while maintaining stable operation. The BSFC-02C supports smooth deceleration profiles that protect pump seals and reduce water hammer effects in pipeline systems.

Product Compatibility FAQ

Q1: Is the BSFC-02C compatible with all ACS880 drive variants, and what external components are required for a complete braking circuit?
The BSFC-02C is designed for use with the ACS880 single-drive and multi-drive platforms. A complete braking circuit requires an appropriately rated external braking resistor, correctly sized for the drive’s power rating and the expected duty cycle of braking events. The ZBRC-01 connection kit is recommended for proper electrical termination. Compatibility should be verified against the specific ACS880 variant and firmware version in use.

Q2: How does the BSFC-02C integrate with the ACS880’s fault management and communication architecture?
The BSFC-02C reports operational status and fault conditions through the ACS880’s internal control bus, making braking events visible within the drive’s diagnostic framework. When combined with the CI873K01 communication module, this data can be transmitted to SCADA or DCS systems for centralized monitoring. The RDCU-02C control unit manages fault responses, including automatic drive shutdown if braking resistor overtemperature is detected via a connected thermal switch.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
The warranty terms confirmed during quotation covers manufacturing defects and component failures under normal operating conditions. For maintenance engineers, this warranty period provides a defined baseline for spare parts planning, allowing procurement teams to schedule replacement cycles and maintain buffer stock without the risk of carrying unsupported components. ZYPLC maintains verified inventory of the BSFC-02C to support both immediate replacement needs and planned maintenance programs.
