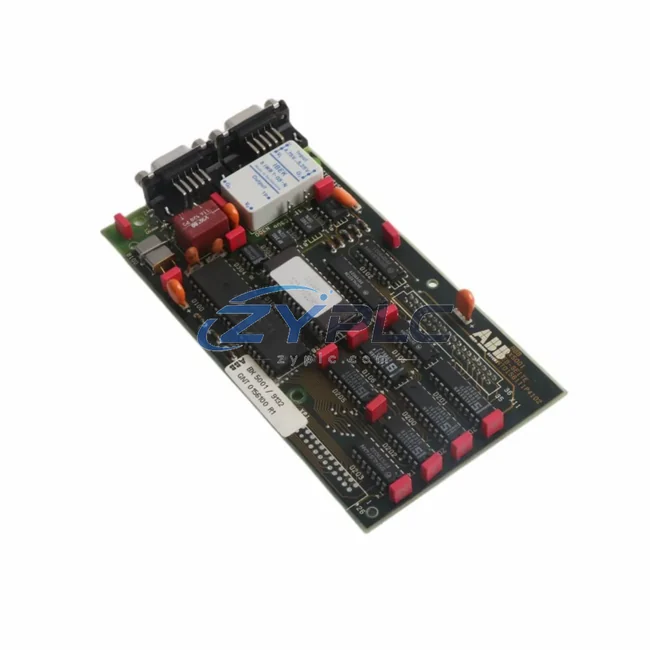

ABB BX5001 GNT0156100R1 Bus Repeater for Symphony Plus

ABB BX5001 GNT0156100R1 Bus Repeater for Symphony Plus: Compatibility and Replacement Notes

The ABB BX5001 GNT0156100R1 is a dedicated bus repeater module engineered for deployment within the ABB Symphony Plus distributed control system (DCS) architecture. Rather than functioning as a standalone component, this module occupies a critical position in the signal propagation layer of a multi-tier automation hierarchy — bridging communication segments, extending bus reach, and ensuring signal integrity across geographically distributed I/O subsystems. In large-scale process control environments such as power generation, petrochemical refining, water treatment, and metallurgical operations, the BX5001 GNT0156100R1 enables engineers to maintain deterministic communication performance without compromising system scalability or redundancy design.

Within the Symphony Plus control architecture, the BX5001 GNT0156100R1 operates at the network and I/O communication layer, sitting between the controller backbone and the field-level I/O modules. Its role is to regenerate and retransmit bus signals, compensating for cable attenuation and segment length limitations inherent in large plant installations. This makes it an indispensable element when designing systems that span multiple control cabinets, remote I/O panels, or geographically separated marshalling rooms.

Product Specification Table

System Compatibility Notes

The BX5001 GNT0156100R1 does not operate in isolation — its value is realized only when considered within the full Symphony Plus system architecture. At the controller tier, the ABB PM865 or PM891 process controller modules serve as the computational core, executing control logic and managing I/O data exchange. These controllers communicate with field devices through the Symphony Plus bus infrastructure, and it is precisely at the segment boundaries of this infrastructure that the BX5001 GNT0156100R1 performs its signal regeneration function.

On the I/O side, modules such as the ABB AI801 (analog input), AO801 (analog output), DI801 (digital input), and DO801 (digital output) are mounted on TB820 or TB840 I/O terminal bases, which in turn connect to the bus segment extended by the BX5001. Without reliable bus signal quality, these I/O modules cannot maintain deterministic scan cycles, leading to process data latency or communication faults. The BX5001 GNT0156100R1 eliminates this risk by ensuring that signal levels remain within specification across extended cable runs.

For redundancy-critical applications, the BX5001 GNT0156100R1 is typically deployed in conjunction with redundant bus configurations supported by the ABB CI857 or CI858 communication interface modules, which manage PROFIBUS DP or Modbus TCP gateway functions between the Symphony Plus backbone and third-party field devices. The bus repeater ensures that redundant communication paths maintain equivalent signal quality, preventing asymmetric failover behavior that could compromise system availability during switchover events.

At the power layer, ABB SD821 or SD823 power supply modules provide the regulated DC supply to the controller and I/O racks. Stable power delivery is a prerequisite for consistent bus repeater performance, and engineers designing Symphony Plus systems should ensure that power distribution architecture accounts for the additional load introduced by extended bus segments and their associated repeater modules.

Human-machine interface integration is typically achieved through ABB 800xA operator workstations or Panel 800 series HMI terminals, which receive process data via the Symphony Plus network layer. The BX5001 GNT0156100R1 contributes to HMI data integrity by ensuring that I/O modules in remote segments report accurately and without communication-induced delays, supporting real-time operator visibility across the entire plant.

Industrial Application Notes

Power Generation: In thermal or hydroelectric power plants, Symphony Plus DCS systems often span turbine halls, boiler rooms, and auxiliary control buildings separated by hundreds of meters of cable. The BX5001 GNT0156100R1 enables engineers to extend bus segments to remote I/O panels without signal degradation, maintaining reliable communication between the central control room and distributed field instruments including temperature transmitters, pressure sensors, and valve positioners.

Petrochemical and Refining: Process control systems in refineries require high availability and fault-tolerant communication architectures. The BX5001 GNT0156100R1 supports redundant bus topologies that ensure continuous I/O communication even during single-point failures, meeting the stringent uptime requirements of continuous process operations.

Water and Wastewater Treatment: Municipal water treatment facilities frequently deploy remote I/O stations at pump stations, filtration units, and chemical dosing points distributed across large geographic areas. The BX5001 GNT0156100R1 allows Symphony Plus systems to reach these remote nodes while maintaining the communication quality required for accurate flow control and chemical dosing regulation.

Metallurgy and Mining: Smelting, ore processing, and materials handling systems demand robust communication infrastructure capable of operating in electrically noisy environments. The galvanic isolation and signal regeneration capabilities of the BX5001 GNT0156100R1 provide the noise immunity necessary for reliable operation in these demanding industrial settings.

Packaging and Discrete Manufacturing: High-speed packaging lines and assembly systems using Symphony Plus for supervisory control benefit from the BX5001’s ability to maintain low-latency communication across multi-cabinet control architectures, supporting the fast I/O scan rates required for coordinated motion and process control.

Product Compatibility FAQ

Q1: How many BX5001 GNT0156100R1 bus repeaters can be cascaded in a single Symphony Plus bus segment, and what are the architectural constraints?
The Symphony Plus architecture supports a defined number of bus repeater stages per segment, typically up to two cascaded repeaters depending on the total cable length and the number of connected I/O nodes. Engineers should consult the ABB Symphony Plus system engineering guide for segment length tables and node count limits. Each BX5001 GNT0156100R1 introduces a small propagation delay, which must be accounted for in the overall bus timing budget. For systems approaching the maximum segment length, it is advisable to review the complete cable topology with ABB-certified engineering support before commissioning.

Q2: Is the BX5001 GNT0156100R1 compatible with both the legacy Harmony DCS and the current Symphony Plus platform, and what migration considerations apply?
The BX5001 GNT0156100R1 is designed for the Symphony Plus platform, which evolved from the ABB Harmony DCS architecture. While many hardware components share physical compatibility between Harmony and Symphony Plus, firmware and configuration tool compatibility must be verified on a project-by-project basis. When migrating from Harmony to Symphony Plus, engineers should validate bus repeater placement and segment configuration using the Symphony Plus Control Builder engineering tool to ensure that the upgraded architecture meets current communication performance specifications. ZYPLC can provide pre-migration compatibility assessments as part of the procurement process.

Q3: What does the warranty terms confirmed during quotation cover for the BX5001 GNT0156100R1, and what support is available during the warranty period?
ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects, functional failures under normal operating conditions, and verified compatibility issues identified during system commissioning. Each BX5001 GNT0156100R1 unit is tested and inspected prior to shipment to confirm operational integrity. During the warranty period, ZYPLC provides technical support for installation guidance, system integration questions, and replacement logistics. For urgent production-critical requirements, expedited replacement arrangements are available. Contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 to discuss warranty terms and support options specific to your project requirements.
