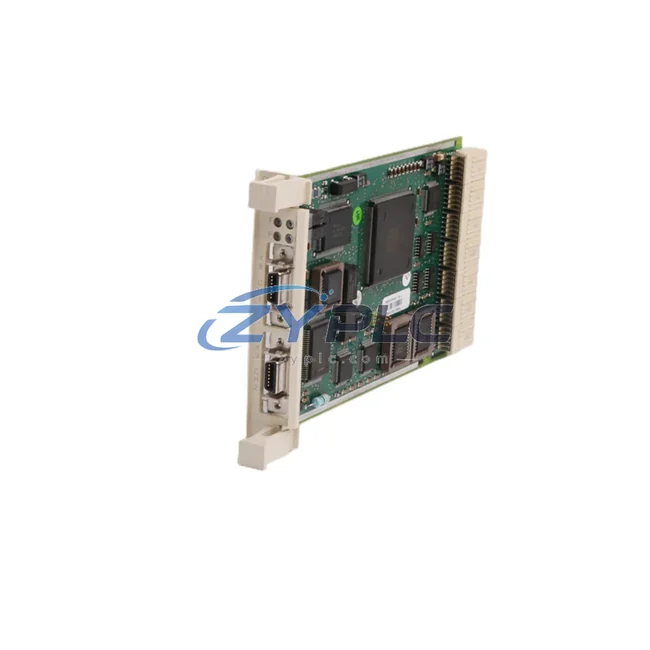

ABB CI522A 3BSE018283R1 Communication Interface

ABB CI522A 3BSE018283R1 Communication Interface for Advant AF100 Automation

The ABB CI522A (3BSE018283R1) is a high-performance communication interface module engineered for the Advant AF100 distributed control system. In modern industrial environments where energy efficiency and uptime are directly tied to profitability, the CI522A plays a pivotal role in bridging field-level devices with supervisory control layers — enabling real-time data exchange that drives smarter energy decisions across the production floor.

By facilitating low-latency, deterministic communication between PLCs, I/O modules, and drive systems, the CI522A reduces polling overhead and eliminates redundant signal processing that silently inflates operating load. When integrated into an AF100 architecture, it enables the control system to respond dynamically to load changes, motor states, and process deviations — cutting unnecessary actuator cycling and reducing idle-state power draw across connected equipment.

Product Specification Table

System Compatibility and Application

The CI522A does not operate in isolation — its true efficiency value emerges when deployed within a well-designed automation architecture. In a typical AF100-based control system, the CI522A interfaces directly with the ABB AC450 Advant Controller, which manages process sequencing and setpoint control. Paired with ABB DSAI130 analog input modules, the system continuously samples current, voltage, and temperature signals from field instruments, feeding real-time energy data into the control loop without requiring additional gateway hardware.

On the drive side, the CI522A enables coordinated communication with ABB ACS800 series variable frequency drives, allowing the controller to dynamically adjust motor speed based on actual process demand rather than fixed schedules. This alone can help restore stable operation when a compatible replacement is required. The ABB DSDO110 digital output module works in tandem to execute switching commands with millisecond precision, eliminating the unplanned downtime associated with delayed actuator response.

For power quality monitoring, the architecture integrates ABB DSDP170 pulse counter modules to track operating load at the sub-process level, providing granular visibility into which equipment segments are drawing excess power. The ABB CI532V01 communication interface can extend this monitoring capability across multiple AF100 nodes, enabling plant-wide energy dashboards without additional infrastructure investment.

At the HMI layer, operators interact with the system through ABB Panel 800 series operator terminals, where energy KPIs — including real-time kWh consumption, motor efficiency ratings, and alarm states — are displayed in configurable dashboards. The CI522A’s reliable data throughput ensures that HMI refresh rates remain consistent even under high process load, preventing operator blind spots that can lead to energy-wasting manual overrides.

For facilities running mixed automation environments, the CI522A’s compatibility with ABB S800 I/O modules and PROFIBUS DP adapters allows seamless integration with third-party PLCs and SCADA systems, preserving existing infrastructure investments while extending the maintenance planning reach of the AF100 platform.

Maintenance and Replacement Notes

In continuous process industries — including chemical, pulp and paper, water treatment, and food manufacturing — the CI522A delivers measurable operational stability by enabling closed-loop control strategies that were previously limited by communication latency. When a process variable drifts outside its setpoint, the CI522A ensures that corrective commands reach the relevant drive or actuator within the control cycle, preventing the energy-intensive overshoot-and-correct patterns that characterize poorly integrated systems.

Predictive maintenance is another area where the CI522A contributes to energy efficiency. By maintaining a stable, high-integrity data link between field sensors and the AC450 controller, the module supports condition monitoring routines that detect early signs of motor bearing wear, pump cavitation, or heat exchanger fouling — all of which cause operating load to rise before a visible fault occurs. Early detection allows maintenance teams to schedule interventions during planned downtime rather than responding to emergency failures, which typically consume 3–5× more energy due to uncontrolled restart sequences and production catch-up cycles.

Line throughput optimization is equally important. The CI522A’s deterministic communication timing allows the AF100 system to synchronize multi-axis motion sequences and conveyor speeds with precision, reducing inter-station buffer times and the associated idle-running operating load. In automotive and electronics assembly lines, this synchronization can improve overall equipment effectiveness (OEE) by 5–12%, directly translating to lower energy cost per unit produced.

All units supplied by ZYPLC are sourced from verified channels, undergo full functional testing prior to shipment, and are covered by a warranty terms confirmed during quotation. Stock is maintained for rapid dispatch, minimizing production downtime for customers requiring urgent replacement modules.

Product Sourcing FAQ

Q1: How does the CI522A 3BSE018283R1 contribute to operational stability in an AF100 system?
The CI522A enables real-time, low-latency communication between the AC450 controller and field devices including drives, I/O modules, and sensors. This allows the control system to implement demand-responsive strategies — such as variable speed drive modulation and load shedding — that directly reduce operating load compared to fixed-speed or time-scheduled control approaches.

Q2: Is the CI522A compatible with modern ABB drive and I/O systems?
Yes. The CI522A is designed for the Advant AF100 fieldbus architecture and is compatible with ABB AC450 and AC410 controllers, DSAI/DSDO I/O series modules, and can interface with ACS800 drives via appropriate communication adapters. For integration with newer ABB 800xA systems, consult your system integrator regarding gateway options.

Q3: What is the recommended replacement or upgrade path if the CI522A is end-of-life?
For systems where the AF100 platform is being retained, a direct replacement with a tested CI522A unit is the most cost-effective approach. ZYPLC maintains inventory of verified CI522A modules for this purpose. For full platform migrations to ABB 800xA or Symphony Plus, the CI522A’s role is typically assumed by CI854 or CI857 communication interface modules.

Q4: What testing and warranty coverage is provided with each unit?
Every CI522A 3BSE018283R1 supplied by ZYPLC undergoes a full functional test prior to shipment, verifying communication integrity, power rail stability, and module initialization. Each unit is covered by a warranty terms confirmed during quotation from the date of dispatch. In the event of a verified module fault within the warranty period, ZYPLC will provide a replacement unit or full refund.

—
