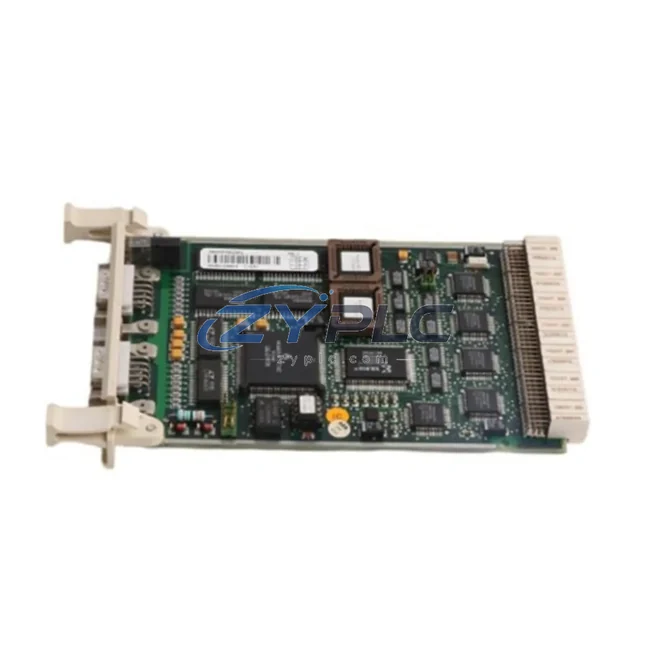

ABB CI531 3BSE003825R1 RS-232 Interface for AC5x

ABB CI531 3BSE003825R1 RS-232 Interface for AC5x

The ABB CI531 (3BSE003825R1) is a dedicated RS-232 serial communication interface module engineered for deployment within the Advant AC5x distributed control system architecture. Rather than functioning as a standalone peripheral, the CI531 occupies a precise role within a layered automation hierarchy — bridging the serial communication layer with the controller backbone, enabling deterministic data exchange between field devices, operator stations, and the central processing units that govern process logic. In complex industrial environments where system consistency, signal integrity, and long-term maintainability are non-negotiable, the CI531 delivers the communication reliability that modern control architectures demand.

Within the Advant OCS (Open Control System) framework, the CI531 connects directly to the AC5x processor rack, providing a standardized RS-232 port for interfacing with external devices such as barcode readers, weighing terminals, third-party PLCs, modems, and legacy instrumentation that rely on serial communication protocols. Its integration into the rack-based architecture ensures that serial data flows are managed at the controller level, reducing latency and eliminating the need for external serial converters that introduce additional failure points into the system.

From a system architecture perspective, the CI531 supports the control layer by maintaining stable, low-overhead communication channels that do not burden the primary process bus. This is particularly important in applications where the AC5x CPU — such as the PM511 or PM510 processor modules — must simultaneously manage real-time I/O scanning, ladder logic execution, and inter-module communication. By offloading serial communication tasks to the CI531, the processor can maintain deterministic scan cycles even under high I/O load conditions.

The module’s compatibility with the Advant rack system means it can be installed alongside other communication and I/O modules without requiring additional mounting hardware or external power supplies. The rack backplane, shared with modules such as the AI810 analog input module, DI810 digital input module, and DO810 digital output module, distributes both power and data bus signals uniformly, ensuring that the CI531 receives stable operating voltage and maintains synchronization with the controller’s communication schedule. This tight integration reduces wiring complexity and simplifies cabinet layout in control panels where space and thermal management are critical constraints.

In redundant control architectures, the CI531 can be deployed in configurations where serial communication paths are mirrored or backed up through alternative routing, supporting the overall system’s fault-tolerance objectives. When paired with redundant AC5x processor modules and redundant power supply units such as the SD821 or SD822, the communication infrastructure maintains continuity even during planned maintenance or unexpected hardware events. This redundancy capability is essential in industries such as oil and gas, power generation, and chemical processing, where communication loss can trigger costly process shutdowns or safety system activations.

The CI531’s role in the network layer is complementary to higher-bandwidth communication modules within the Advant ecosystem. While modules such as the CI532 or CI534 handle fieldbus and Ethernet-based communication, the CI531 addresses the persistent need for RS-232 connectivity in environments where legacy devices, specialized instrumentation, or cost-sensitive field equipment rely on serial interfaces. This coexistence of communication technologies within a single rack architecture reflects the Advant system’s design philosophy of modular, scalable, and backward-compatible automation infrastructure.

For engineering teams responsible for system commissioning and long-term maintenance, the CI531 offers straightforward configuration through the Advant Controller programming environment. Serial port parameters including baud rate, data bits, stop bits, and parity can be configured to match the requirements of the connected device, and the module’s status indicators provide real-time feedback on communication activity and fault conditions. This reduces commissioning time and simplifies troubleshooting during both initial startup and ongoing maintenance cycles.

From an inventory and supply chain perspective, maintaining CI531 modules as part of a critical spare parts strategy is strongly recommended for facilities operating AC5x-based control systems. As the Advant platform continues to serve as the backbone of many established industrial installations, the availability of genuine replacement modules directly impacts mean time to repair (MTTR) and overall plant availability. ZYPLC maintains availability subject to RFQ confirmation of the CI531 3BSE003825R1, supported by a warranty terms confirmed during quotation and full system integration documentation to ensure seamless replacement and system re-commissioning.

Product Specification Table

System Compatibility Notes

The CI531 3BSE003825R1 achieves its full value when considered within the broader context of a coordinated Advant AC5x control system. At the processor level, the PM511 and PM510 CPU modules serve as the computational core, executing control programs and managing I/O data tables. The CI531 extends the processor’s communication reach by providing a dedicated RS-232 channel that does not compete with the primary process bus bandwidth.

On the I/O layer, the CI531 operates alongside analog and digital I/O modules such as the AI810, AO810, DI810, and DO810, all of which share the same rack backplane infrastructure. This co-location simplifies cabinet design and ensures that all modules benefit from the same power conditioning and grounding architecture provided by the SD821 or SD822 power supply modules.

For applications requiring fieldbus connectivity, the CI531 complements higher-level communication modules such as the CI532 (PROFIBUS DP interface) and CI534 (Ethernet interface), creating a multi-protocol communication architecture within a single controller rack. This layered approach allows the AC5x system to simultaneously manage serial device communication, fieldbus I/O, and supervisory network connectivity without requiring separate communication processors or external gateways.

At the human-machine interface layer, operator stations and SCADA systems connected via the Advant network can monitor CI531 communication status and serial device data in real time, providing operators with full visibility into the serial communication layer without requiring direct access to the controller rack. Terminal modules and marshalling panels connected downstream of the CI531 further simplify field wiring and enable modular expansion as the system grows.

Industrial Application Notes

The CI531 3BSE003825R1 finds application across a wide range of industrial sectors where the Advant AC5x platform has been deployed as the primary control infrastructure. In power generation facilities, the module enables serial communication between the AC5x controller and protection relays, energy meters, and excitation system interfaces that rely on RS-232 for configuration and data exchange. In chemical and petrochemical plants, the CI531 supports communication with analytical instruments, flow computers, and custody transfer systems that require reliable serial data links to the process control layer.

Water and wastewater treatment facilities operating AC5x-based SCADA systems use the CI531 to interface with level sensors, dosing pump controllers, and remote telemetry units that communicate via RS-232. In mining and metallurgical operations, the module connects the AC5x controller to weighing systems, conveyor speed controllers, and crusher management units, enabling integrated process control across the entire material handling chain.

Packaging and discrete manufacturing lines benefit from the CI531’s ability to interface with vision systems, label printers, and barcode verification units that use RS-232 as their primary communication interface. In each of these applications, the CI531’s integration into the AC5x rack architecture ensures that serial communication is managed at the controller level, maintaining system consistency and reducing the risk of communication-related process interruptions.

Product Compatibility FAQ

Q1: Is the CI531 3BSE003825R1 compatible with all AC5x rack configurations, and can it be installed alongside other communication modules?
Yes. The CI531 is designed for direct installation into the Advant AC5x rack backplane and is compatible with standard AC5x rack configurations. It can be installed in any available module slot alongside other communication modules such as the CI532 or CI534, as well as I/O modules including the AI810, DI810, and DO810. No additional mounting hardware or external power connections are required, as the module draws power directly from the rack backplane via the SD821 or SD822 power supply.

Q2: What commissioning steps are required to integrate the CI531 into an existing AC5x control system, and how does it affect system scan cycle performance?
Commissioning the CI531 involves configuring the serial port parameters (baud rate, data bits, stop bits, parity) through the Advant Controller programming environment to match the requirements of the connected serial device. The module’s communication tasks are handled independently of the primary process bus, so integration does not significantly impact the AC5x CPU scan cycle. Status LEDs on the module front panel provide real-time indication of communication activity and fault conditions, simplifying both initial commissioning and ongoing diagnostic activities.

Q3: What does the warranty terms confirmed during quotation cover for the CI531 3BSE003825R1, and what system integration support is provided?
The warranty terms confirmed during quotation covers hardware defects and functional failures under normal operating conditions, with replacement or repair provided at no additional cost within the warranty period. system integration support includes technical documentation, compatibility verification with the target AC5x system configuration, and pre-shipment functional testing where applicable. ZYPLC’s engineering team is available to assist with integration planning, spare parts strategy, and system architecture consultation to ensure the CI531 performs reliably within your specific control system environment.
