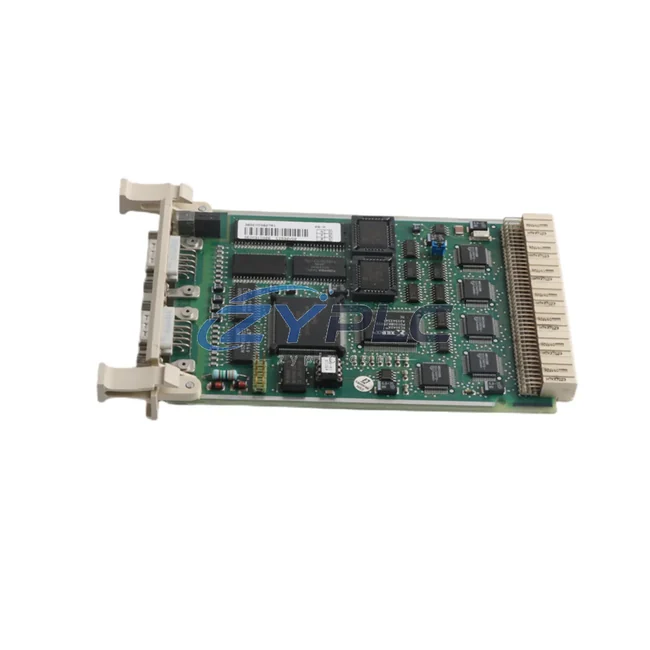

ABB CI532V02 3BSE003827R1 Industrial Network Interface for CI500 Systems

ABB CI532V02 3BSE003827R1: Industrial Data Link for CI500 Smart Factory Systems

The ABB CI532V02 (3BSE003827R1) is a high-performance Modbus Communication Interface engineered for the CI500 series, purpose-built to serve as the critical data bridge between field-level devices and upper-level control and monitoring systems in modern industrial automation environments. Designed to operate seamlessly within ABB’s AC800M Distributed Control System (DCS) architecture, this gateway enables reliable, real-time protocol conversion and network communication across complex plant topologies — from signal acquisition at the sensor layer all the way through to SCADA dashboards and enterprise MES platforms.

In today’s smart factory, data isolation is one of the most persistent barriers to operational efficiency. The CI532V02 directly addresses this challenge by providing a standardized Modbus RTU/TCP communication pathway that connects legacy field instruments, PLCs, remote I/O modules, variable frequency drives, and HMI terminals into a unified, transparent data network. Whether you are integrating a Modbus-enabled pressure transmitter on the plant floor or synchronizing real-time process values with an ABB System 800xA SCADA platform, the CI532V02 delivers the protocol translation and network stability required for uninterrupted industrial operations.

Compatibility & Integration Notes

Connected Automation Data Flow

The CI532V02 sits at the heart of a layered industrial communication architecture. At the field level, Modbus-enabled sensors — including temperature transmitters, pressure transducers, and flow meters — transmit raw process data via RS-485 serial links to the CI532V02 gateway. The module performs real-time protocol conversion, packaging this data into structured Modbus TCP frames that are forwarded upstream to the ABB AC800M controller over the plant Ethernet backbone.

Within the AC800M control cabinet, the CI532V02 interfaces directly with the PM866 processor module, enabling the controller to read and write Modbus register maps with deterministic cycle times. Alongside the CI532V02, the CI501 and CI541 communication interfaces may be deployed in parallel to handle PROFIBUS DP and FOUNDATION Fieldbus H1 segments respectively, creating a multi-protocol gateway cluster that consolidates all field data into the AC800M’s unified process database.

On the drive integration side, ABB ACS880 variable frequency drives equipped with Modbus adapter modules communicate directly with the CI532V02, delivering real-time speed references, torque feedback, and fault status to the DCS without the need for additional protocol converters. Similarly, remote I/O stations — such as the ABB S800 I/O modules — can be networked through Modbus RTU links managed by the CI532V02, extending the control system’s reach to distributed field cabinets across large process plants.

At the supervisory layer, the CI532V02’s Modbus TCP capability allows ABB System 800xA SCADA workstations to poll live process values, acknowledge alarms, and issue setpoint commands in real time. Third-party HMI panels from vendors such as Siemens or Schneider Electric, configured with standard Modbus TCP drivers, can also connect directly to the CI532V02 without custom middleware, significantly reducing integration engineering time. Edge gateway devices — including ABB Ability™ Edge — can subscribe to the Modbus data stream exposed by the CI532V02 to forward anonymized process KPIs to cloud analytics platforms for predictive maintenance and OEE monitoring.

For remote diagnostics, the CI532V02 supports network-level health monitoring through the AC800M’s built-in diagnostic tools, enabling maintenance engineers to identify communication faults, monitor bus load, and perform firmware updates without physical access to the field cabinet — a critical capability for unmanned substations and remote process skids.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with a patchwork of legacy field devices, each communicating over proprietary or incompatible protocols. The result is data silos — islands of process information that cannot be accessed by the plant’s central control or reporting systems. The ABB CI532V02 resolves this by acting as a universal Modbus gateway, translating between serial Modbus RTU devices and modern Ethernet-based Modbus TCP networks, effectively bridging the gap between legacy instrumentation and contemporary DCS/SCADA infrastructure.

Production line transparency is another key benefit. By routing all Modbus device data through the CI532V02 into the AC800M DCS, operators gain a single, consolidated view of plant-wide process variables on their System 800xA SCADA screens. Alarm events from remote sensors are propagated in real time, enabling rapid fault response and reducing unplanned downtime. For facilities undergoing digital transformation, the CI532V02 provides a non-disruptive upgrade path — existing Modbus field devices are retained while the communication backbone is modernized to support IIoT and edge analytics workloads.

System scalability is built into the CI532V02’s design. Additional Modbus slave devices can be added to the network without reconfiguring the host AC800M controller, and the module’s support for multiple Modbus register maps allows simultaneous integration of diverse device types — from smart meters and motor protection relays to barcode readers and RFID gateways — within a single communication segment.

Industrial Connectivity FAQ

Q1: What is the communication latency of the CI532V02 in a Modbus TCP network?
The CI532V02 supports deterministic Modbus TCP polling with cycle times configurable within the AC800M DCS engineering tool. Typical end-to-end latency for a standard Modbus TCP transaction on a 100 Mbps Ethernet network is under 10 ms, making it suitable for real-time process control and alarm management applications.

Q2: Is the CI532V02 compatible with third-party SCADA and HMI systems?
Yes. The CI532V02 exposes a standard Modbus TCP server interface that is compatible with any SCADA or HMI platform supporting the Modbus TCP protocol, including Wonderware, Ignition, Siemens WinCC, and Schneider Electric EcoStruxure. No proprietary drivers or middleware are required for third-party integration.

Q3: How does the CI532V02 ensure network stability in electrically noisy industrial environments?
The CI532V02 is designed to ABB’s industrial-grade hardware standards, incorporating optical isolation on serial interfaces and robust EMC shielding to maintain signal integrity in high-noise environments such as motor control centers and high-voltage switchgear rooms. The module also supports automatic Modbus error detection and retry mechanisms to recover from transient communication faults without operator intervention.

Q4: What warranty and pre-shipment testing does the CI532V02 include?
Every CI532V02 unit supplied by ZYPLC is covered by a warranty terms confirmed during quotation and undergoes full functional testing prior to shipment, including Modbus communication verification, power-on self-test, and interface continuity checks. Units are shipped with original ABB packaging and documentation. Availability is confirmed via RFQ for same-day dispatch with global logistics support.
