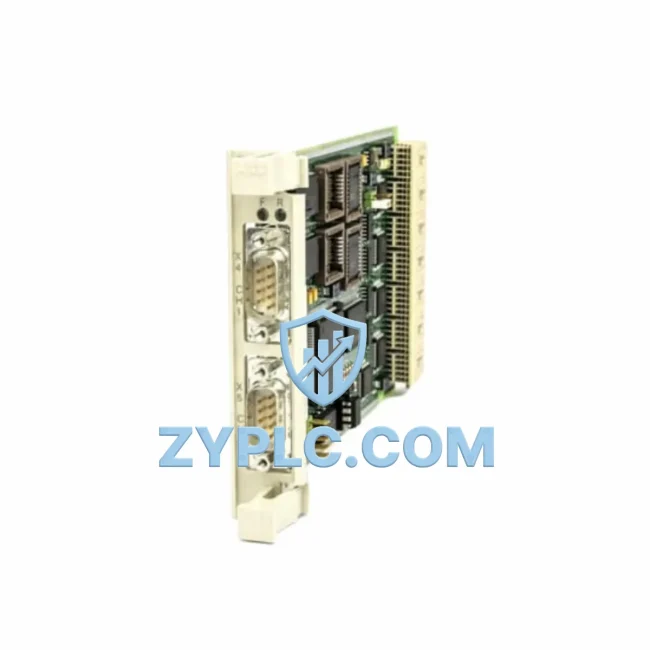

ABB CI534V02 3BSE010700R1 Industrial Network Interface for AC500 Systems

ABB CI534V02 3BSE010700R1: Industrial Data Link for AC500 Smart Factory Networks

The ABB CI534V02 (3BSE010700R1) is a high-performance Modbus communication gateway module engineered for seamless integration within ABB’s AC500 PLC platform. Designed to bridge field-level devices and upper-level control systems, this interface module enables reliable, real-time data exchange across the full automation hierarchy — from sensors and actuators on the plant floor to SCADA servers, HMI panels, and MES platforms in the control room. In an era where smart factory connectivity is no longer optional, the CI534V02 delivers the protocol translation, network stability, and diagnostic transparency that modern industrial sites demand.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the CI534V02 sits at the heart of the communication architecture within the ABB AC500 PLC rack. Field signals originate from distributed sensors — pressure transmitters, flow meters, and temperature probes — and are collected through ABB TU515 / TU516 terminal units and SM560 CPU modules, which handle local logic execution. The CI534V02 then acts as the protocol gateway, converting native AC500 data into Modbus RTU frames transmitted over RS-485 to remote field devices such as ABB ACS580 variable frequency drives and ACS880 industrial drives, enabling closed-loop speed and torque control with full diagnostic feedback.

Upstream, the module bridges to Modbus TCP over Ethernet, feeding real-time process values to ABB CP600 HMI panels for operator visualization and alarm management. Simultaneously, SCADA platforms — including systems built on ABB Ability System 800xA — poll the CI534V02 for live tag data, historical trending, and event logging. This bidirectional data flow ensures that every layer of the automation pyramid, from the field bus to the enterprise network, operates with synchronized, low-latency information.

For remote I/O expansion, the CI534V02 integrates with ABB S500 remote I/O modules deployed across distributed cabinet locations, extending the AC500 control domain without additional CPU overhead. Edge computing nodes and industrial IoT gateways can also subscribe to Modbus TCP data streams published by the CI534V02, enabling cloud-based analytics, predictive maintenance algorithms, and OEE dashboards. The module’s deterministic scan cycle and configurable polling intervals make it equally suited for high-speed discrete manufacturing lines and slower-paced process automation environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is protocol fragmentation — where PLCs, drives, sensors, and SCADA systems speak incompatible communication languages, creating data silos that block real-time visibility and slow down decision-making. The ABB CI534V02 (3BSE010700R1) directly addresses this by providing transparent Modbus RTU-to-TCP bridging, allowing older serial-based field devices to participate in modern Ethernet-based control networks without hardware replacement.

Plant engineers frequently encounter situations where a legacy RS-485 Modbus RTU device — such as an energy meter, a motor protection relay, or a third-party sensor — cannot communicate directly with an Ethernet SCADA server. The CI534V02 resolves this by acting as a transparent protocol converter, mapping Modbus RTU register addresses to Modbus TCP coils and holding registers accessible by any compliant SCADA or HMI client. This eliminates the need for custom middleware or OPC server workarounds, reducing integration complexity and commissioning time.

For production line transparency, the CI534V02 enables continuous data acquisition from multiple slave devices on a single RS-485 bus, aggregating process variables — motor current, conveyor speed, tank level, valve position — into a unified data model visible to operators and engineers alike. Remote diagnostics are supported through Modbus exception codes and communication health registers, allowing maintenance teams to identify bus faults, device timeouts, or wiring issues from the SCADA workstation without dispatching field technicians. System expansion is equally straightforward: additional Modbus slave devices can be added to the bus without modifying the AC500 PLC program, simply by updating the CI534V02 configuration table — a critical advantage for phased factory upgrades and capacity expansions.

Industrial Connectivity FAQ

Q1: What is the communication latency of the CI534V02 in a Modbus RTU network?
The CI534V02 supports configurable polling intervals and response timeouts, typically achieving sub-100ms cycle times for standard Modbus RTU networks at 19200 baud or higher. Actual latency depends on the number of slave devices, register map size, and baud rate settings configured in the AC500 programming environment.

Q2: Is the CI534V02 compatible with third-party SCADA and HMI systems beyond ABB’s own platforms?
Yes. Because the CI534V02 implements standard Modbus TCP and Modbus RTU protocols, it is fully compatible with any SCADA, HMI, or data historian that supports Modbus — including Wonderware, Ignition, Siemens WinCC, Schneider EcoStruxure, and other industry-standard platforms. No proprietary drivers are required.

Q3: How does the CI534V02 maintain network stability in electrically noisy industrial environments?
The module is designed to operate within the AC500 rack’s shielded backplane, benefiting from ABB’s industrial-grade EMC design standards. RS-485 differential signaling provides inherent noise immunity over long cable runs, and the module supports configurable retry logic and error counters to automatically recover from transient communication faults without requiring PLC program intervention.

Q4: What warranty and pre-shipment testing does the CI534V02 include?
Every CI534V02 unit supplied by ZYPLC undergoes functional communication testing prior to shipment, verifying Modbus register read/write operations, interface integrity, and firmware version compatibility with the AC500 platform. All units are covered by a 12-month warranty against manufacturing defects, with technical support available for integration and commissioning assistance.
