ABB CINT-4421C Industrial Network Interface for ACS800 Systems

ABB CINT-4421C: Industrial Data Link and Smart Factory Connectivity for ACS800 Systems

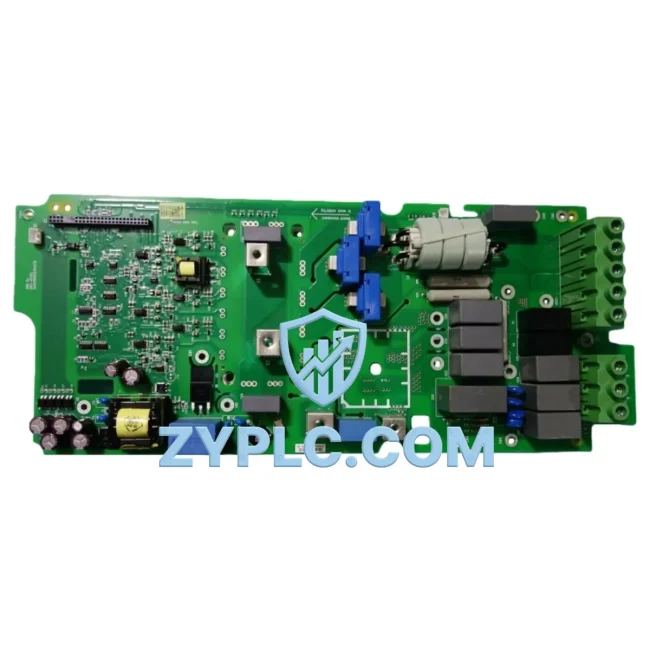

The ABB CINT-4421C is a high-performance inverter driver board engineered for seamless integration within the ACS800 series drive platform. Designed to serve as the critical communication backbone between field-level devices and upper-layer control systems, the CINT-4421C enables reliable, real-time data exchange across the full spectrum of industrial automation architectures — from signal acquisition at the sensor layer to supervisory control at the SCADA and MES level.

In modern smart factory environments, the ability to maintain uninterrupted data flow between variable frequency drives, PLC controllers, remote I/O modules, HMI panels, and cloud-connected edge gateways is no longer optional — it is the foundation of operational transparency. The CINT-4421C fulfills this role by providing a stable, protocol-aware communication interface that bridges the ACS800 drive’s internal data bus with external industrial networks, ensuring that every torque command, speed reference, fault signal, and diagnostic parameter is accurately transmitted and received without latency or data loss.

Network Communication Table

Connected Automation Data Flow

The CINT-4421C operates at the intersection of drive-level intelligence and plant-wide network infrastructure. In a typical ACS800 drive system, the CINT-4421C board interfaces directly with the drive’s internal DDCS fiber optic ring, enabling the ABB RDCO-03 DDCS Communication Module to relay speed references, torque limits, and status words to the drive in real time. This fiber-based communication eliminates electromagnetic interference common in high-power motor environments, ensuring signal integrity even in electrically noisy production floors.

At the PLC layer, the CINT-4421C communicates with ABB AC500 PM595 CPU modules via PROFIBUS DP, allowing the controller to issue start/stop commands, monitor output frequency, and read fault codes without operator intervention. For installations using Siemens S7-300 or S7-1500 PLCs, the board’s Modbus RTU interface provides a straightforward integration path, enabling cross-brand interoperability that is essential in brownfield factory upgrades.

Remote I/O expansion is handled through the network backbone established by the CINT-4421C. Modules such as the ABB CI854A PROFIBUS DP Interface connect distributed I/O racks to the same network segment, allowing sensor data — including temperature readings from PT100 probes, pressure signals from 4–20mA transmitters, and proximity switch states — to be aggregated and forwarded to the drive control loop in milliseconds. This tight integration between field instrumentation and drive response is what enables closed-loop process control at industrial scale.

At the HMI layer, ABB CP635 touch panel displays connected via Ethernet or serial links retrieve drive status parameters from the CINT-4421C’s communication registers, presenting operators with real-time speed, current, voltage, and alarm data on intuitive graphical dashboards. When an overcurrent fault or thermal overload event occurs, the HMI immediately reflects the fault code, and the SCADA system — such as ABB Ability System 800xA or a third-party Wonderware InTouch platform — logs the event with a precise timestamp for post-event analysis and regulatory compliance reporting.

For edge computing and IIoT connectivity, the CINT-4421C’s data output can be aggregated by an ABB Edge Controller EC2 series or compatible industrial IoT gateway, which translates drive parameters into MQTT or OPC-UA payloads for transmission to cloud analytics platforms. This enables predictive maintenance algorithms to monitor motor load trends, bearing vibration signatures, and thermal cycling patterns, triggering maintenance work orders before unplanned downtime occurs. The ABB FENA-21 Ethernet Adapter Module, when used alongside the CINT-4421C in expanded ACS800 configurations, further extends network reach to EtherNet/IP and PROFINET segments, making the drive visible to modern DCS and MES systems without additional protocol converters.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant may operate legacy Modbus RTU devices alongside modern PROFIBUS DP networks and newer EtherNet/IP infrastructure — each segment functioning as an isolated data island, unable to share operational data with adjacent systems. The ABB CINT-4421C directly addresses this challenge by providing a multi-protocol communication interface that bridges these disparate network layers within the ACS800 drive ecosystem.

By centralizing drive communication through the CINT-4421C, plant engineers gain a single, consistent data access point for all drive parameters — eliminating the need for manual data collection rounds and reducing the risk of transcription errors in maintenance logs. SCADA operators can monitor dozens of ACS800 drives simultaneously from a central control room, with alarm thresholds configured to trigger automated responses such as load shedding, standby motor activation, or emergency stop sequences.

Remote diagnostics capability is another key advantage. With the CINT-4421C maintaining a live communication link to the plant network, maintenance engineers can access drive fault histories, parameter logs, and real-time operating data from any networked workstation — or even from mobile devices via secure VPN connections to the plant SCADA server. This eliminates the need for on-site visits to diagnose intermittent faults, reducing mean time to repair (MTTR) and minimizing production losses.

For plants undergoing digital transformation, the CINT-4421C provides a scalable foundation for system expansion. Additional ACS800 drives can be added to the DDCS fiber ring without disrupting existing network traffic, and the board’s fieldbus adapter slot accommodates future protocol upgrades as plant communication standards evolve. This forward compatibility protects capital investment and ensures that the drive network can grow alongside the plant’s automation ambitions.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB CINT-4421C support, and is it compatible with third-party PLC systems?
The CINT-4421C natively supports ABB’s DDCS fiber optic protocol for drive-to-drive and drive-to-controller communication. Via its fieldbus adapter slot, it supports PROFIBUS DP and Modbus RTU, enabling integration with Siemens, Schneider Electric, Rockwell Automation, and other third-party PLC platforms. DeviceNet connectivity is available through optional adapter modules.

Q2: How does the CINT-4421C ensure network stability in high-interference industrial environments?
The board’s primary DDCS communication channel uses fiber optic transmission, which is inherently immune to electromagnetic interference generated by high-power motor drives, welding equipment, and variable frequency switching. Serial and fieldbus connections are protected by hardware-level noise filtering and comply with IEC 61800-3 EMC requirements for industrial drive environments.

Q3: What is the pre-shipment testing process, and what does the 12-month warranty cover?
Every CINT-4421C unit undergoes a full functional test prior to dispatch, including communication interface verification, power supply integrity checks, and firmware version confirmation. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Warranty claims are supported by our technical team with remote diagnostic assistance and expedited replacement logistics.

Q4: Can the CINT-4421C be used in system expansion projects without replacing existing ACS800 drives?
Yes. The CINT-4421C is designed as a plug-in communication board for existing ACS800 drive frames, allowing communication capability upgrades without drive replacement. It can be added to drives already in service, and its DDCS ring topology supports the addition of multiple drives to a single network segment, making it ideal for phased plant expansion projects.
