ABB CMA122 3DDE300402 Industrial Network Interface for AC800M Systems

ABB CMA122 3DDE300402 Industrial Network Interface for AC800M Systems: Bridging the Industrial Data Link in Smart Factory Environments

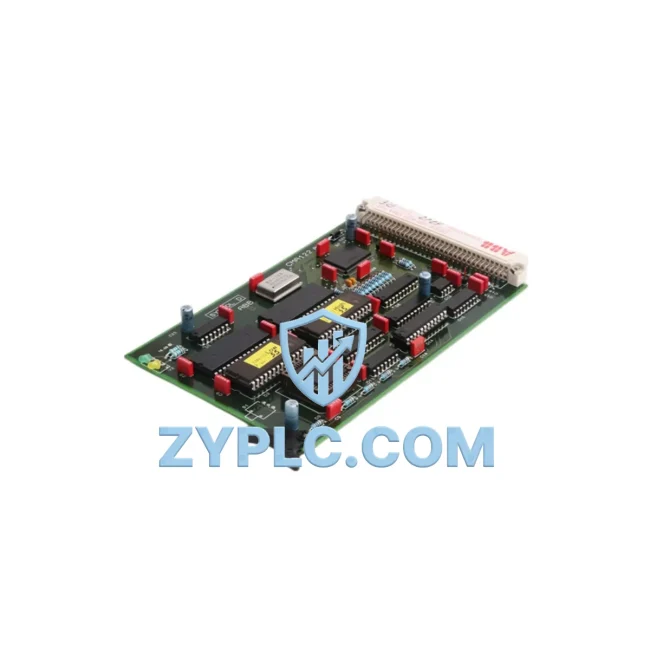

The ABB CMA122 3DDE300402 is a high-performance Profibus Communication Gateway engineered for seamless integration within the ABB AC800M distributed control platform. Designed to serve as the critical data bridge between field-level devices and supervisory control systems, the CMA122 enables reliable, real-time protocol conversion across complex industrial network architectures. Whether deployed in process automation, discrete manufacturing, or hybrid smart factory environments, this communication module delivers the connectivity backbone that modern industrial operations demand.

In today’s industrial landscape, the ability to move data accurately and without latency from sensors and actuators up through PLCs, SCADA systems, and MES platforms is no longer optional — it is the foundation of operational transparency. The ABB CMA122 3DDE300402 addresses this need directly, providing a robust Profibus DP interface that connects the AC800M controller to a wide range of field devices, remote I/O stations, variable frequency drives, and intelligent instrumentation.

Network Communication Table

Connected Automation Data Flow

The ABB CMA122 3DDE300402 sits at the heart of the industrial data chain, orchestrating communication between the ABB AC800M controller and the distributed field layer. In a typical smart factory deployment, the data flow begins at the sensor and actuator level — pressure transmitters, flow meters, temperature sensors, and proximity switches — all of which communicate their process values upward through the Profibus DP network managed by the CMA122.

At the remote I/O layer, modules such as the ABB S800 I/O series (including AI810, AO810, DI810, and DO810 modules) connect directly to the Profibus segment, aggregating analog and digital signals from the field and forwarding them to the AC800M controller via the CMA122 gateway. This architecture eliminates the need for point-to-point wiring across long distances, dramatically reducing installation complexity and improving signal integrity.

Variable frequency drives — such as the ABB ACS880 and ACS580 series — are commonly integrated into the same Profibus network, with the CMA122 enabling the AC800M to issue speed references, read actual motor feedback, and monitor drive fault states in real time. This closed-loop communication is essential for energy-efficient motor control and predictive maintenance workflows.

At the controller level, the ABB PM866 and PM891 processor modules within the AC800M rack work in conjunction with the CMA122 to execute control logic and manage Profibus polling cycles. The CMA122 handles the cyclic and acyclic data exchange, ensuring that process values are updated within deterministic scan times — a critical requirement for closed-loop PID control and safety-instrumented functions.

For HMI and SCADA integration, the AC800M communicates upward via OPC DA/UA or Modbus TCP to supervisory platforms such as ABB System 800xA, where operators can visualize real-time process data, configure alarm thresholds, and initiate remote diagnostic routines. The CMA122’s reliable Profibus communication ensures that the data presented at the SCADA layer accurately reflects field conditions without polling delays or data loss.

Edge gateway devices — including ABB Edge Connect and third-party IIoT gateways — can further extend the data chain by aggregating AC800M process data and forwarding it to cloud analytics platforms or MES systems, enabling predictive maintenance, OEE tracking, and digital twin applications. The CMA122 3DDE300402 is the foundational link that makes this entire data architecture possible.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Legacy field devices may speak only Profibus DP, while newer instrumentation supports HART or IO-Link, and supervisory systems expect Ethernet-based protocols such as Modbus TCP or OPC UA. Without a capable communication gateway at the controller level, these protocol boundaries create data silos that prevent operators from achieving full production transparency.

The ABB CMA122 3DDE300402 directly addresses this challenge by providing a standardized Profibus DP interface within the AC800M platform, allowing the controller to aggregate data from a heterogeneous field device population and present it uniformly to higher-level systems. This protocol normalization is the first step toward eliminating data isolation on the plant floor.

Remote monitoring and diagnostics are equally critical in modern industrial operations. With the CMA122 enabling real-time Profibus communication, maintenance engineers can use the AC800M’s built-in diagnostic tools — or third-party Profibus analyzers — to remotely interrogate field device status, identify communication faults, and pinpoint failing nodes without requiring physical access to the field. This capability significantly reduces mean time to repair (MTTR) and supports condition-based maintenance strategies.

Production line transparency is further enhanced by the CMA122’s support for acyclic Profibus DP V1 communication, which allows the AC800M to read extended device parameters, calibration data, and diagnostic records from intelligent field instruments on demand. This data can be forwarded to SCADA or MES systems to support quality management, batch traceability, and regulatory compliance reporting.

System scalability is another key advantage. The Profibus DP network managed by the CMA122 can support up to 126 device addresses per segment, with repeaters enabling multi-segment topologies that span large plant areas. As production capacity expands, additional field devices and remote I/O stations can be added to the network without requiring changes to the AC800M controller architecture — protecting the capital investment in the existing automation infrastructure.

Every ABB CMA122 3DDE300402 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, module initialization, and Profibus DP handshake performance. In-stock inventory ensures rapid order fulfillment, and all units are backed by a 12-month warranty covering manufacturing defects and communication failures.

Industrial Connectivity FAQ

Q1: What is the maximum Profibus DP transmission speed supported by the ABB CMA122 3DDE300402?
The CMA122 supports Profibus DP transmission rates up to 12 Mbit/s, with automatic baud rate detection ensuring compatibility with field devices operating at lower speeds (9.6 kbit/s to 12 Mbit/s). The actual network speed is determined by the longest cable segment and the slowest device on the bus.

Q2: Is the CMA122 3DDE300402 compatible with third-party Profibus DP field devices, or is it limited to ABB equipment?
The CMA122 is fully compatible with any GSD-file-based Profibus DP device, regardless of manufacturer. This includes drives, remote I/O modules, valve positioners, flow computers, and intelligent transmitters from Siemens, Schneider Electric, Endress+Hauser, and other major vendors, making it suitable for mixed-vendor automation environments.

Q3: How does the CMA122 support network stability in high-noise industrial environments?
The CMA122 is designed to operate within the AC800M’s ruggedized rack environment, which provides EMI shielding and stable power distribution. Profibus DP’s RS-485 physical layer offers inherent noise immunity, and the CMA122 supports standard Profibus termination and shielding practices that further enhance signal integrity in electrically noisy plant environments such as motor control centers and high-voltage switchgear rooms.

Q4: What warranty and after-sales support does ZYPLC provide for the ABB CMA122 3DDE300402?
All ABB CMA122 3DDE300402 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing. Our technical team provides post-sale support for installation guidance, Profibus network configuration, and fault diagnosis. For urgent requirements, expedited shipping via DHL or FedEx is available from in-stock inventory.
