ABB CP630 1SAP530100R0001 Industrial HMI for CP600 Systems

ABB CP630 1SAP530100R0001: Industrial Data Link for CP600 Smart Factory Systems

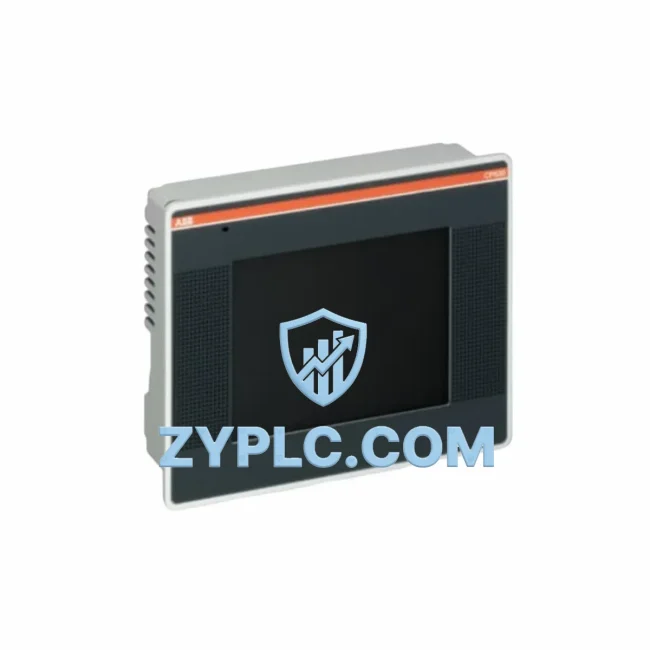

The ABB CP630 (Part No. 1SAP530100R0001) is a high-performance Human-Machine Interface panel from ABB’s CP600 series, engineered to serve as the critical visualization and control node in modern industrial automation networks. With its 5.7-inch TFT color display, integrated Ethernet port, and native Modbus TCP/IP support, the CP630 bridges the gap between field-level devices and supervisory control systems — delivering real-time process data, alarm management, and remote diagnostics across the full automation hierarchy.

In smart factory environments where data transparency and network reliability are non-negotiable, the CP630 provides a stable, high-resolution interface that connects seamlessly with PLCs, remote I/O modules, SCADA platforms, and edge computing gateways. Its compact panel-mount design and robust industrial-grade housing make it equally suited for machine-level control cabinets and centralized control room installations.

Compatibility & Integration Notes

Connected Automation Data Flow

The CP630’s role in a connected automation architecture begins at the field level. Sensors and actuators — including ABB’s range of process transmitters and proximity switches — feed analog and digital signals into remote I/O modules such as the ABB AC500 I/O expansion units. These signals are aggregated by the ABB AC500 PLC series, which acts as the central logic controller coordinating process sequences, safety interlocks, and data logging.

The CP630 connects directly to the AC500 PLC via Ethernet or RS-485, rendering live process variables, setpoints, and alarm states on its 5.7-inch TFT display. Operators can acknowledge alarms, adjust parameters, and trigger manual overrides directly from the panel — eliminating the need for laptop-based commissioning tools during routine operations.

Upstream, the CP630 communicates with SCADA platforms such as ABB System 800xA or third-party supervisory systems via Modbus TCP/IP, forwarding structured process data to historian servers and MES layers. In drive control applications, the CP630 integrates with ABB ACS880 variable frequency drives, displaying motor speed, torque feedback, and fault codes in real time. For distributed installations, protocol gateways — such as Modbus-to-PROFIBUS or Modbus-to-EtherNet/IP converters — extend the CP630’s reach to legacy field devices and third-party PLCs without requiring hardware replacement.

Edge computing nodes deployed alongside the CP630 can capture high-frequency data streams for predictive maintenance analytics, feeding cloud-based platforms with timestamped process records. Industrial Ethernet switches with managed VLAN support ensure that HMI traffic is isolated from safety-critical PLC communications, maintaining deterministic response times across the network. Power for the CP630 and its associated communication modules is typically supplied by ABB’s CP-E series DIN-rail power supplies, ensuring stable 24 VDC delivery even under fluctuating load conditions.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of data across incompatible protocols and isolated control islands. Legacy equipment running proprietary fieldbus protocols — PROFIBUS DP, DeviceNet, or serial Modbus RTU — cannot natively communicate with modern Ethernet-based SCADA systems, creating data silos that obscure production performance and delay fault response.

The ABB CP630 addresses this directly. Its multi-protocol communication stack supports simultaneous Modbus TCP/IP and Modbus RTU sessions, allowing it to act as a soft gateway between serial field devices and Ethernet-connected supervisory systems. Plant engineers can configure the CP630 to poll data from legacy PLCs via RS-485 while simultaneously publishing aggregated values to a SCADA server over Ethernet — all without deploying a dedicated protocol converter.

For production line transparency, the CP630’s configurable screen layouts allow operators to monitor multiple process zones from a single panel, reducing the need for distributed indicator lights and standalone meters. Alarm history logs stored on the CP630’s internal memory provide a timestamped audit trail for quality management and regulatory compliance. Remote diagnostic access via Ethernet enables maintenance engineers to review alarm states, trend data, and communication status from a central control room or remote workstation — minimizing unplanned downtime and reducing on-site service visits.

System expansion is straightforward: additional CP630 panels can be networked in parallel, each assigned to a specific machine or process zone, with all data aggregated at the SCADA level. This modular approach supports phased digitalization strategies, allowing manufacturers to extend smart factory connectivity incrementally without disrupting existing production schedules.

All units supplied by ZYPLC are sourced from authorized distribution channels, undergo pre-shipment functional testing, and are covered by a 12-month warranty. In-stock inventory ensures short lead times, with global shipping via DHL and FedEx to support urgent project timelines.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB CP630 (1SAP530100R0001) support?
The CP630 natively supports Modbus TCP/IP over Ethernet and Modbus RTU over RS-485/RS-232. It is compatible with ABB AC500 PLCs and can communicate with third-party controllers and SCADA systems using standard Modbus driver configurations. For PROFIBUS or EtherNet/IP integration, an external protocol gateway is required.

Q2: Can the CP630 be used with non-ABB PLCs and SCADA systems?
Yes. The CP630’s Modbus TCP/IP and Modbus RTU support make it compatible with a wide range of third-party PLCs, DCS controllers, and SCADA platforms. Standard Modbus register mapping allows integration with Siemens, Schneider Electric, Mitsubishi, and other control systems without custom driver development.

Q3: How does the CP630 maintain network stability in high-noise industrial environments?
The CP630 is designed to IEC 61131 industrial standards with EMC-compliant hardware and shielded communication ports. Its Ethernet interface supports auto-negotiation and full-duplex operation, and the RS-485 port includes built-in termination resistance for long-distance serial runs. Managed industrial Ethernet switches with VLAN segmentation are recommended to further isolate HMI traffic from safety-critical network segments.

Q4: What warranty and testing does ZYPLC provide for the ABB CP630?
Every ABB CP630 unit shipped by ZYPLC is covered by a 12-month warranty against manufacturing defects and communication failures. Pre-shipment testing includes power-on verification, display function check, and Ethernet port connectivity validation. Units are packaged in anti-static protective materials and shipped via tracked DHL or FedEx services with full export documentation.
