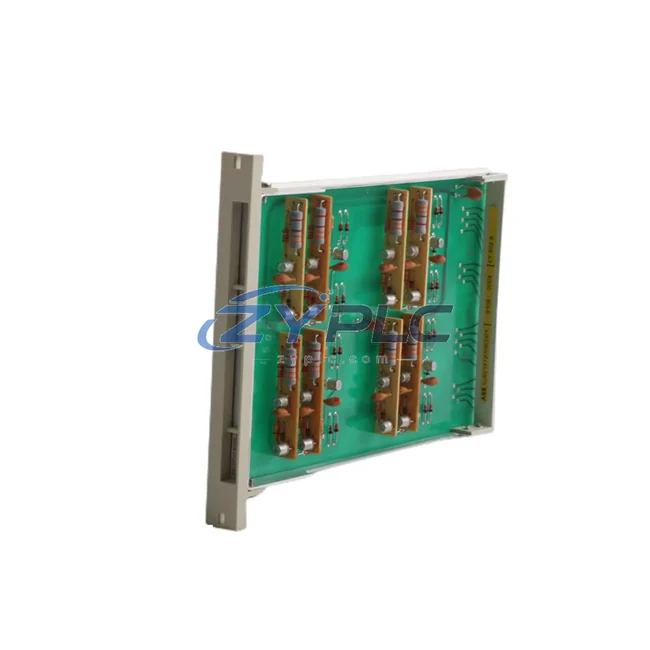

ABB CT302A GJR2167200R0001 DCS Control Card for Advant Systems

ABB CT302A GJR2167200R0001: Industrial Data Link for Advant DCS Networks

The ABB CT302A GJR2167200R0001 is a high-performance DCS Control Card engineered for the ABB Advant series distributed control system platform. Designed to serve as a critical node in the industrial data chain, this control card enables seamless communication between field-level devices and supervisory control layers — bridging the gap between sensors, actuators, remote I/O modules, and upper-level SCADA or HMI systems. In smart factory environments where data continuity and real-time responsiveness are non-negotiable, the CT302A GJR2167200R0001 delivers the stability and protocol compatibility required for modern industrial automation.

From signal acquisition at the field device level through protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics, this control card functions as the backbone of a connected automation architecture. Whether integrated into a legacy Advant OCS (Open Control System) or deployed alongside newer ABB Symphony Plus components, the CT302A ensures that data flows without interruption across every layer of the control hierarchy.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory deployment, the ABB CT302A GJR2167200R0001 sits at the heart of the control network, coordinating data exchange between multiple automation layers. At the field level, distributed sensors — including pressure transmitters, flow meters, and temperature probes — feed process values into remote I/O modules such as the ABB S100 I/O series. These signals are aggregated and passed upward through the Advant backplane bus to the CT302A control card, which processes and routes the data according to configured scan cycles.

The CT302A communicates with ABB AC450 and AC460 controllers within the Advant OCS architecture, ensuring that process data is available to the control logic in real time. For sites running mixed automation environments, the card interfaces with ABB CI854 PROFIBUS communication interfaces and CI801 fieldbus modules, enabling protocol bridging between legacy serial networks and modern Ethernet-based control backbones.

At the drive layer, the CT302A supports integration with ABB ACS800 and ACS880 variable frequency drives via PROFIBUS DP or MODBUS RTU, allowing speed references and status feedback to be exchanged without additional gateway hardware. This direct drive-to-DCS communication reduces latency and eliminates potential points of failure in the data chain.

For HMI and SCADA connectivity, the CT302A feeds process data to ABB Industrial IT Information Management platforms and third-party SCADA systems via OPC DA/UA servers running on the Advant station. Operators at the control room level receive live process values, alarm states, and trend data with minimal delay, enabling rapid response to process deviations. The card also supports integration with ABB Freelance DCS environments through gateway configurations, extending its compatibility beyond the core Advant platform.

Edge gateway devices — such as the ABB Edge Connect series — can be deployed alongside the CT302A to push process data to cloud-based analytics platforms or MES systems, completing the data chain from field sensor to enterprise dashboard. This architecture supports the full IIoT data flow required for Industry 4.0 initiatives, including predictive maintenance, OEE monitoring, and digital twin synchronization.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. A plant running ABB Advant controllers alongside newer Ethernet-based systems, third-party PLCs, and legacy serial devices faces the risk of data silos — where critical process information is trapped within isolated network segments and unavailable to supervisory systems.

The ABB CT302A GJR2167200R0001 directly addresses this challenge by supporting multiple communication protocols within a single control card architecture. Its compatibility with MasterBus 300, PROFIBUS, and MODBUS allows it to serve as a protocol bridge between field devices operating on different standards, eliminating the need for external protocol converters in many configurations.

For remote monitoring and diagnostics, the CT302A enables operators to access real-time device status, fault codes, and communication health data from the SCADA layer without requiring physical access to the control cabinet. This capability is particularly valuable in geographically distributed plants or hazardous environments where on-site intervention carries operational risk.

Production line transparency is another key benefit. By ensuring that all field devices — from sensors and actuators to drives and remote I/O — are continuously reporting to the DCS, the CT302A enables production managers to monitor OEE metrics, identify bottlenecks, and respond to quality deviations in real time. System expansion is equally straightforward: additional I/O modules, communication cards, or network segments can be added to the Advant architecture without disrupting existing control logic, thanks to the modular design of the CT302A platform.

Every unit of the ABB CT302A GJR2167200R0001 supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, protocol response, and hardware condition. Stock is maintained for shipment arranged after confirmation, and all units are covered by a warranty terms confirmed during quotation from the date of delivery.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB CT302A GJR2167200R0001 support?
The CT302A supports MasterBus 300, PROFIBUS DP, MODBUS RTU/TCP, and the ABB S100 I/O bus, making it compatible with a wide range of field devices, drives, and supervisory systems commonly found in process and discrete manufacturing environments.

Q2: Can the CT302A be integrated with non-ABB SCADA or HMI systems?
Yes. Through OPC DA/UA server configurations on the Advant workstation, the CT302A can supply process data to third-party SCADA platforms including Wonderware, Ignition, and Siemens WinCC. MODBUS TCP connectivity also allows direct integration with many HMI terminals without additional middleware.

Q3: How does the CT302A ensure network stability in high-demand industrial environments?
The CT302A is designed for deterministic, cyclic data exchange with configurable scan rates. Its backplane bus architecture minimizes network collisions and ensures consistent data delivery even under high I/O load conditions. Redundant communication paths can be configured within the Advant OCS architecture to further enhance network resilience.

Q4: What is included in the warranty terms confirmed during quotation and pre-shipment testing?
All CT302A GJR2167200R0001 units supplied by ZYPLC are tested for communication functionality, protocol response, and hardware integrity prior to dispatch. The warranty terms confirmed during quotation covers manufacturing defects and communication failures under normal operating conditions. Replacement or repair support is provided directly through ZYPLC’s technical team.
