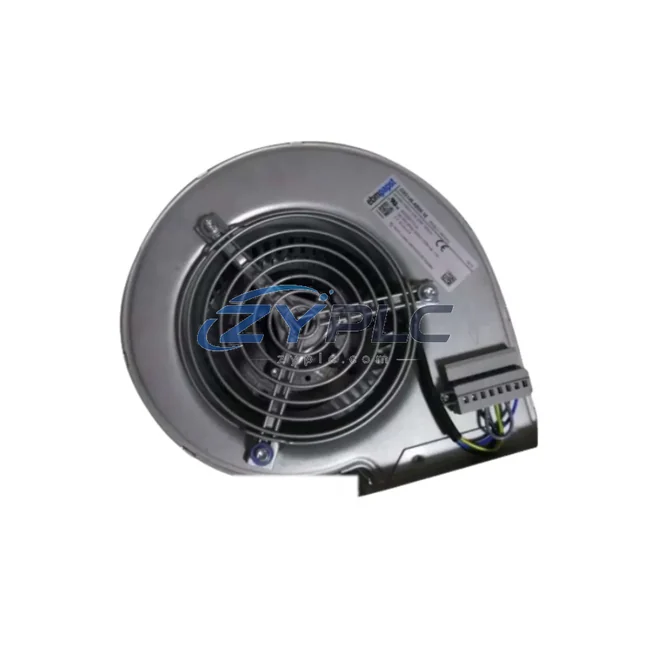

ABB D3G146-AB06-10 Cooling Fan for ACS Drive

ABB D3G146-AB06-10 Cooling Fan for ACS Drive: Thermal Management Within Layered Control Systems

The ABB D3G146-AB06-10 is a centrifugal fan module engineered specifically for integration within ABB’s ACS series variable frequency drive (VFD) platforms. In modern industrial automation environments, thermal regulation is not a peripheral concern — it is a foundational element of system reliability. The D3G146-AB06-10 occupies a critical position within the power layer of a distributed control architecture, ensuring that drive electronics maintain operational temperatures across continuous duty cycles in demanding industrial environments.

Unlike generic cooling components, the D3G146-AB06-10 is designed to operate in direct coordination with ABB ACS drive enclosures, where airflow geometry, mounting tolerances, and electrical interface specifications are tightly controlled. Its integration into a complete drive system — alongside the ACS880 or ACS580 main inverter unit, RDCU-02C control unit, and AINT-02C inverter interface module — ensures that thermal performance does not become a limiting factor in system uptime or output consistency.

In layered automation architectures, the drive system sits between the control layer (typically a PLC such as the AC500 series or a DCS controller) and the execution layer (motors, actuators, and mechanical loads). The D3G146-AB06-10 supports the power layer’s ability to sustain rated output under full load, which directly affects the reliability of the entire signal chain — from the PROFIBUS DP or PROFINET communication interface down to the motor shaft. When the drive overheats, the entire control loop is disrupted; when thermal management is properly engineered, the system can operate at rated capacity indefinitely.

System architects specifying this fan module should consider its role alongside other thermal and power management components. In a typical ACS880 cabinet installation, the D3G146-AB06-10 works in conjunction with the drive’s internal IGBT modules, DC bus capacitor banks, and braking chopper units. The fan’s airflow path is designed to extract heat from these components efficiently, maintaining junction temperatures within safe operating limits even in ambient conditions up to 40°C or higher with appropriate derating.

For redundant drive architectures — common in critical process applications such as petrochemical compressor drives, water treatment pump stations, or mining conveyor systems — maintaining a verified spare of the D3G146-AB06-10 is standard engineering practice. Drive redundancy schemes that rely on hot-standby or cold-standby configurations require that all sub-components, including cooling fans, be available for rapid replacement. A failed fan module that causes a drive trip in a non-redundant system can result in unplanned downtime measured in hours; in a redundant system with a verified spare on hand, switchover and restoration can be completed in minutes.

The D3G146-AB06-10 is also relevant in retrofit and modernization projects. When upgrading legacy drive systems to current ACS platform standards, maintaining OEM-specified cooling components ensures that the upgraded drive meets its published thermal ratings. Substituting non-OEM fan modules introduces uncertainty into the thermal model and may void warranty coverage on the drive itself. Specifying the D3G146-AB06-10 as part of a modernization BOM preserves system integrity and simplifies commissioning documentation.

From a maintenance engineering perspective, the D3G146-AB06-10 represents a planned replacement item. ABB’s preventive maintenance guidelines for ACS series drives recommend periodic inspection and scheduled replacement of cooling fans based on operating hours and environmental conditions. Facilities with high-duty-cycle drives — such as those running 24/7 in continuous process industries — should maintain a minimum stock level of this component to support planned maintenance windows without extending downtime.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation and undergo functional verification prior to dispatch. Our inventory management process ensures traceability and quality assurance for every D3G146-AB06-10 shipped, supporting your procurement and maintenance planning requirements.

Product Specification Table

System Compatibility Notes

The D3G146-AB06-10 does not operate in isolation — it is one element within a coordinated drive system that spans multiple architectural layers. In a complete ACS880 drive installation, the following components interact directly or indirectly with the cooling fan module:

The ACS880-01 single drive unit is the primary host for the D3G146-AB06-10, with the fan module mounted within the drive enclosure to manage heat generated by the IGBT power stage. The RDCU-02C drive control unit monitors drive operating parameters including temperature, and its fault logic may trigger protective shutdown if cooling performance degrades. The AINT-02C inverter interface module coordinates power flow between the DC bus and the inverter bridge, generating heat that the fan must dissipate.

At the communication layer, the FPBA-01 PROFIBUS adapter module or FENA-21 Ethernet adapter connects the ACS880 to the plant control network, enabling the PLC or DCS to monitor drive status — including thermal alarms — in real time. The ABB AC500 PLC (or equivalent Siemens S7-300/S7-1500 controller in mixed-vendor installations) receives these status signals and can initiate controlled load reduction or system shutdown if thermal thresholds are approached.

The ACS880 braking chopper unit (BAMU-01) and associated braking resistors generate additional heat during regenerative braking cycles, increasing the thermal load that the D3G146-AB06-10 must manage. In high-inertia applications such as centrifuge drives or crane hoists, this thermal contribution is significant and must be accounted for in the cooling system design.

At the I/O layer, ABB CI854 PROFIBUS interface modules or S800 I/O modules relay process signals to the drive, while the CP600 HMI panel provides operators with real-time visibility into drive performance, including fan status and enclosure temperature. This complete architecture — from the HMI through the PLC, communication network, drive control unit, power stage, and cooling system — depends on each component performing its specified function reliably.

Industrial Application Notes

Manufacturing and Packaging Lines: In high-speed packaging and assembly lines, ACS series drives control conveyor motors, servo axes, and pneumatic actuators at duty cycles that generate sustained thermal loads. The D3G146-AB06-10 ensures that drives remain within thermal limits during multi-shift production schedules, preventing nuisance trips that disrupt line throughput and OEE metrics.

Power Generation and Utilities: In power plant auxiliary systems — including boiler feed pumps, induced draft fans, and cooling water pumps — ACS880 drives operate continuously at high load factors. Thermal reliability is a safety-critical requirement in these applications, and the D3G146-AB06-10 supports the drive’s ability to maintain rated output without thermal derating.

Petrochemical and Process Industries: Compressor drives, reactor agitator drives, and heat exchanger pump drives in petrochemical facilities operate in elevated ambient temperatures and may be subject to hazardous area classification requirements. The D3G146-AB06-10, as an OEM-specified component, supports compliance with the drive’s published environmental ratings.

Water and Wastewater Treatment: Variable-speed pump drives in water treatment facilities run continuously, often in outdoor or semi-outdoor enclosures subject to wide temperature variation. Scheduled replacement of the D3G146-AB06-10 as part of a preventive maintenance program reduces the risk of unplanned pump outages that affect treatment capacity and regulatory compliance.

Mining and Metals Processing: In mining conveyor drives, ball mill drives, and smelter exhaust fan drives, ACS880 units operate under extreme load conditions. The thermal management provided by the D3G146-AB06-10 is essential to sustaining drive availability in these high-consequence applications where downtime costs are measured in tonnes of lost production per hour.

Product Compatibility FAQ

Q1: Is the D3G146-AB06-10 compatible with all ACS series drives, or only specific models?
The D3G146-AB06-10 is an OEM-specified cooling fan module for select ABB ACS series drive enclosures. Compatibility depends on the specific drive frame size and enclosure configuration. Engineers should verify the applicable drive service manual or ABB spare parts documentation to confirm fitment for their specific ACS580, ACS880, or ACS550 installation. ZYPLC’s technical team can assist with cross-referencing if the drive model and frame size are provided.

Q2: What is the recommended replacement interval for the D3G146-AB06-10 in a continuous-duty application?
ABB’s preventive maintenance guidelines for ACS series drives typically recommend cooling fan inspection at 12-month intervals and replacement based on operating hours, bearing condition, and environmental factors. In continuous-duty applications (8,000+ hours per year) or high-ambient-temperature environments, replacement intervals may be shorter. Maintaining a verified spare on-site eliminates lead time risk and supports planned maintenance windows. All units supplied by ZYPLC carry a warranty terms confirmed during quotation from the date of dispatch.

Q3: Can the D3G146-AB06-10 be installed without specialist tools, and what commissioning steps are required after replacement?
The D3G146-AB06-10 is designed for field replacement within the ACS drive enclosure using standard hand tools. After installation, the drive should be powered up and the cooling system verified through the drive’s diagnostic interface (accessible via the ACS control panel or the RDCU-02C control unit). Engineers should confirm that the fan operates at the correct speed, that no thermal fault codes are present, and that enclosure temperature stabilizes within the expected range under load. No software configuration is typically required for the fan module itself, as it is a direct electrical replacement within the drive’s internal cooling circuit. Full commissioning documentation should be updated to reflect the replacement date and component serial number for traceability purposes.
