ABB DC532 1SAP240100R0001 Industrial Network Interface for AC500 Systems

ABB DC532 1SAP240100R0001 Industrial Network Interface for AC500 Systems: Bridging the Industrial Data Link in Smart Factory Environments

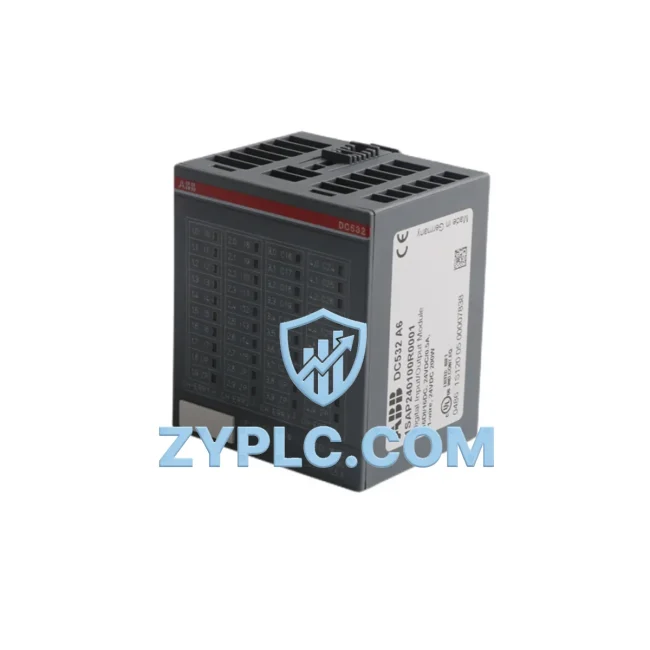

The ABB DC532 1SAP240100R0001 is a high-performance Digital I/O Module engineered for the ABB AC500 PLC platform, purpose-built to serve as a critical node in industrial communication architectures. Designed to handle both digital input and output signal processing with precision, the DC532 enables seamless data exchange between field-level devices and upper-level control systems — making it an indispensable component in modern smart factory deployments, process automation lines, and distributed control networks.

In today’s industrial landscape, the ability to reliably acquire, transmit, and act on real-time field data is the foundation of operational efficiency. The DC532 1SAP240100R0001 addresses this need by integrating directly into the AC500 backplane architecture, providing deterministic I/O scanning cycles that support time-critical control loops. Whether deployed in a discrete manufacturing cell, a continuous process plant, or a hybrid automation environment, this module delivers the signal integrity and communication stability that industrial engineers demand.

Network Communication Table

Connected Automation Data Flow

The ABB DC532 1SAP240100R0001 sits at the heart of a layered industrial data flow architecture. At the field level, sensors — including proximity switches, photoelectric detectors, and pressure transmitters — feed 24 VDC digital signals directly into the DC532’s input channels. These signals are processed by the module and passed upstream through the AC500 backplane to the ABB PM573 or PM591 CPU modules, which execute the IEC 61131-3 control logic in real time.

On the output side, the DC532 drives actuators, solenoid valves, motor starters, and indicator lamps based on CPU-resolved logic states. When integrated with ABB CP600 HMI panels, operators gain live visibility into I/O status, alarm states, and process variables — all without additional protocol conversion overhead. The AC500 CPU communicates upstream via PROFIBUS DP or Modbus TCP to SCADA systems such as ABB System 800xA or third-party platforms, enabling plant-wide data aggregation and KPI dashboarding.

In distributed architectures, the DC532 can be paired with ABB TU515 or TU516 terminal units for modular wiring flexibility, reducing installation time and simplifying field maintenance. For applications requiring remote I/O expansion over longer distances, the module integrates with ABB CI501 PROFIBUS DP communication interface modules, extending the control network across production zones without signal degradation.

Edge computing scenarios benefit from the DC532’s deterministic scan times, which allow ABB Edge Gateways to collect timestamped I/O event data for predictive maintenance analytics. Variable frequency drives — such as the ABB ACS580 series — receive start/stop and speed reference commands through the DC532’s output channels, enabling coordinated motor control within the same AC500 control loop. This tight integration between the DC532, the AC500 CPU, and downstream drive systems eliminates communication latency that would otherwise compromise synchronization in high-speed conveyor or packaging lines.

For power distribution and system reliability, the DC532 operates within the AC500 rack alongside ABB PS501 power supply modules, ensuring stable 24 VDC bus voltage even under high I/O load conditions. The result is a fully connected automation data chain — from raw sensor signal to SCADA dashboard — with the DC532 1SAP240100R0001 serving as the reliable digital gateway at every field interface point.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control systems across different generations of equipment, each running proprietary protocols and isolated data silos. The ABB DC532 1SAP240100R0001, as part of the AC500 ecosystem, directly addresses this problem by providing a standardized, protocol-agnostic I/O interface that bridges legacy field devices with modern networked control infrastructure.

Sites running mixed environments — where older relay-based panels coexist with modern PLC networks — can use the DC532 to digitize hardwired I/O signals and route them into the AC500’s communication stack. From there, data becomes accessible to SCADA systems via OPC UA, Modbus TCP, or EtherNet/IP, breaking down the data isolation that previously prevented plant-wide transparency. Maintenance teams gain remote diagnostic access to I/O channel states, fault flags, and module health indicators through the AC500 programming environment (Automation Builder), eliminating the need for on-site troubleshooting in hazardous or hard-to-reach locations.

Production line transparency is further enhanced by the DC532’s ability to feed real-time event data into MES and ERP systems, enabling accurate OEE calculations, shift production counts, and downtime root-cause analysis. System expansion is straightforward: additional DC532 modules can be added to the AC500 rack without reconfiguring the existing network topology, supporting phased capacity growth without production interruption. Every unit shipped by ZYPLC undergoes pre-shipment functional testing to verify channel integrity, communication handshake, and module identification — ensuring plug-and-play readiness upon arrival at your facility.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DC532 1SAP240100R0001 support for SCADA integration?
The DC532 itself communicates via the AC500 internal backplane bus. Protocol translation to PROFIBUS DP, Modbus TCP, EtherNet/IP, or OPC UA is handled by the AC500 CPU and its associated communication interface modules (e.g., CI501, CI502). This architecture allows the DC532 to participate in virtually any industrial network topology without hardware modification.

Q2: How does the DC532 ensure network stability in high-noise industrial environments?
The DC532 1SAP240100R0001 is designed to IEC 61131-2 environmental standards, with built-in EMC shielding and optocoupler-isolated input channels that reject common-mode noise from variable frequency drives, welding equipment, and high-current switching loads. The AC500 backplane communication is deterministic and immune to Ethernet collision-domain issues, ensuring consistent I/O scan cycle times even in electrically noisy plant environments.

Q3: Can the DC532 be expanded or integrated into an existing AC500 system without downtime?
Yes. The AC500 modular architecture allows hot-configuration changes in many system setups. Additional DC532 modules can be inserted into available rack slots and recognized by the AC500 CPU after a configuration update in ABB Automation Builder. For systems requiring zero-downtime expansion, consult your system integrator regarding the specific CPU firmware version and rack configuration.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the DC532 1SAP240100R0001?
All ABB DC532 1SAP240100R0001 units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional verification including channel continuity checks, backplane communication handshake testing, and module ID confirmation. In-stock units are available for same-week dispatch globally. For volume orders or urgent requirements, contact our team directly.
