ABB DCP02 P37211-4-0369654 Industrial Network Interface for Procontrol P Systems

ABB DCP02 P37211-4-0369654: Industrial Data Link for Smart Factory Connectivity

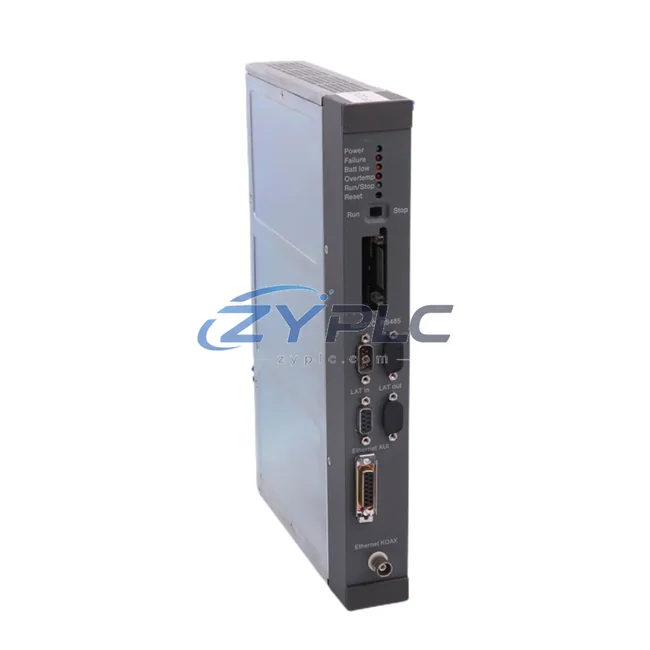

The ABB DCP02 P37211-4-0369654 is a high-performance Profibus DP communication gateway engineered for seamless integration within ABB’s Procontrol P distributed control system (DCS) architecture. Designed to bridge field-level devices and supervisory control networks, this module serves as a critical node in the industrial data chain — enabling real-time signal acquisition, protocol conversion, and transparent data flow across complex automation environments. Whether deployed in power generation, chemical processing, or heavy manufacturing, the DCP02 delivers the network stability and communication reliability that modern smart factories demand.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the ABB DCP02 P37211-4-0369654 sits at the heart of the communication architecture, orchestrating data exchange between field instruments and upper-level control systems. At the field level, process sensors — including pressure transmitters, flow meters, and temperature sensors communicating over Profibus PA — feed live process values upward through the Profibus DP segment managed by the DCP02. This gateway module translates and routes those signals into the ABB Procontrol P controller backplane, where the DCS logic processes alarms, setpoints, and control outputs in real time.

Within the same control cabinet, the DCP02 operates alongside companion modules such as the ABB DSDP110 Profibus interface card and the ABB DSDO110 digital output module, forming a tightly coupled I/O subsystem. Remote I/O racks — for instance, ABB S800 I/O modules deployed at field junction boxes — connect back to the DCP02 via the Profibus DP trunk, extending the control network across large plant footprints without signal degradation.

At the supervisory layer, the DCP02’s data is consumed by ABB Symphony Plus SCADA servers and ABB 800xA operator workstations, where process engineers monitor live trends, configure alarm thresholds, and execute remote diagnostics. HMI panels — such as the ABB CP600 series — display real-time process graphics sourced directly from the Procontrol P controller via the DCP02’s communication link. Variable frequency drives, including ABB ACS880 series drives, are also integrated into the Profibus segment, allowing the DCP02 to relay speed references and fault status between the drive and the DCS without additional protocol converters.

For edge connectivity and IIoT applications, an ABB Edge Gateway or third-party industrial edge device can tap into the Profibus network via the DCP02, forwarding aggregated process data to cloud analytics platforms or MES systems. This end-to-end data chain — from sensor signal acquisition through protocol conversion, network transmission, real-time SCADA monitoring, alarm feedback, and remote diagnostics — demonstrates the DCP02’s indispensable role in achieving full plant transparency and operational efficiency.

Solving Data Isolation in Industrial Sites

Legacy industrial plants frequently suffer from data silos caused by incompatible communication protocols, proprietary fieldbus standards, and aging control hardware that cannot natively exchange information. The ABB DCP02 P37211-4-0369654 directly addresses these challenges by acting as a universal translation layer within the Procontrol P ecosystem.

Protocol Unification: Many brownfield sites operate a mix of Profibus DP, Modbus RTU, and proprietary ABB interfaces. The DCP02 consolidates Profibus DP traffic from diverse field devices — drives, remote I/O, smart instruments — into a single, coherent data stream that the Procontrol P DCS can process natively, eliminating the need for multiple standalone protocol converters.

Breaking Data Isolation: By bridging field devices directly to the DCS backplane, the DCP02 ensures that process data previously trapped in isolated field segments becomes immediately available to SCADA historians, MES databases, and cloud analytics tools. Operators gain a unified view of plant operations without manual data extraction or batch reporting delays.

Remote Monitoring and Diagnostics: The DCP02 supports remote diagnostics through the Profibus DP diagnostic telegram structure, allowing maintenance engineers to query device status, identify communication faults, and isolate failing nodes from the 800xA engineering workstation — reducing unplanned downtime and eliminating the need for on-site troubleshooting in hazardous areas.

Production Line Transparency: With the DCP02 in place, every field device on the Profibus segment reports its operational status, process value, and fault condition in real time. This transparency enables predictive maintenance strategies, OEE (Overall Equipment Effectiveness) tracking, and rapid root-cause analysis when process deviations occur.

System Scalability: The modular architecture of the Procontrol P platform means that additional DCP02 modules can be added to expand the Profibus network as production capacity grows, without redesigning the existing control infrastructure. New field devices, remote I/O stations, or drive systems can be commissioned and integrated with minimal engineering effort.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DCP02 P37211-4-0369654 support?
The DCP02 is designed specifically for the Profibus DP protocol (compliant with EN 50170 / IEC 61158), operating over RS-485 physical layer at speeds up to 12 Mbit/s. It functions as a Profibus DP master or slave interface within the ABB Procontrol P DCS, enabling communication with a wide range of Profibus-compatible field devices including drives, remote I/O modules, smart transmitters, and HMI panels.

Q2: How does the DCP02 ensure network stability in demanding industrial environments?
The DCP02 is built to ABB’s industrial-grade hardware standards, with robust EMC shielding and wide operating temperature tolerance suited for control room and field cabinet installation. The Profibus DP protocol itself incorporates cyclic redundancy checks (CRC) and deterministic polling cycles, ensuring that communication latency remains predictable and data integrity is maintained even in electrically noisy plant environments. All units supplied by ZYPLC undergo pre-shipment functional testing to verify communication performance before dispatch.

Q3: Is the ABB DCP02 compatible with ABB 800xA and Symphony Plus SCADA systems?
Yes. The DCP02 is a native component of the ABB Procontrol P DCS architecture, which integrates directly with ABB 800xA and Symphony Plus supervisory systems. Process data collected by the DCP02 from Profibus field devices is made available to 800xA operator workstations, engineering tools, and SCADA historians through the standard Procontrol P communication infrastructure, without requiring additional middleware or OPC servers.

Q4: What warranty and supply conditions apply to the ABB DCP02 P37211-4-0369654?
All ABB DCP02 P37211-4-0369654 units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and communication failures. Units are sourced from verified supply channels, pre-tested prior to shipment, and available from stock for fast global delivery. For volume orders, lead time inquiries, or technical compatibility questions, contact our team directly.
