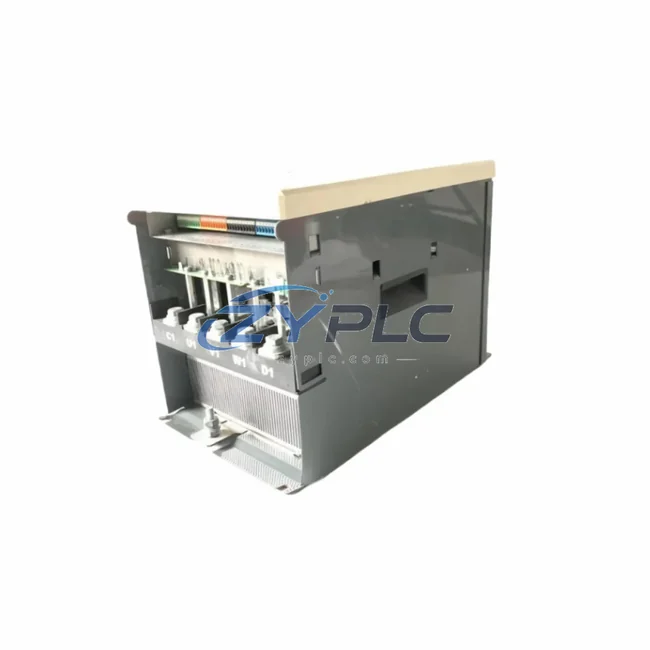

ABB DCS550-S01-0405-05-00-00 DC Drive for DCS550

ABB DCS550-S01-0405-05-00-00 DC Drive for DCS550

The ABB DCS550-S01-0405-05-00-00 is a fully integrated DC drive module engineered for deployment within the ABB DCS550 series control architecture. Rather than functioning as a standalone unit, this drive is designed to operate as a coordinated node within a layered automation system — interfacing seamlessly with upstream controllers, downstream actuators, field I/O modules, and supervisory HMI platforms. In modern industrial environments where system consistency, uptime, and scalability are non-negotiable, the DCS550-S01-0405-05-00-00 delivers the electrical performance and communication reliability that multi-axis DC drive applications demand.

This module supports armature current ratings suited for medium-power DC motor control, making it applicable across a wide range of process-critical applications including winding lines, extruders, paper machines, crane drives, and rolling mill stands. Its architecture-ready design means it can be commissioned as part of a coordinated multi-drive system without requiring custom signal conditioning or protocol bridging, reducing engineering overhead and accelerating system integration timelines.

From a system architecture perspective, the DCS550-S01-0405-05-00-00 occupies the drive layer — receiving speed or torque references from a master controller such as the ABB AC500 PLC or an AC800M DCS controller, executing closed-loop armature current regulation, and feeding back process variables through standardized fieldbus interfaces. This tight integration between the control layer and the drive layer is what enables coordinated multi-drive operation, synchronization across production zones, and rapid fault response without manual intervention.

Product Specification Table

System Compatibility Notes

The DCS550-S01-0405-05-00-00 achieves its full potential when integrated within a coordinated control system architecture. At the control layer, an ABB AC500 PLC or AC800M distributed control system provides the master speed or torque reference via PROFIBUS-DP or Modbus RTU, transmitted through an SDCS-COM-8 or SDCS-COM-9 fieldbus adapter mounted directly on the drive. This eliminates the need for analog signal wiring between the controller and drive, reducing noise susceptibility and improving reference accuracy across long cable runs.

At the I/O layer, SDCS-IOB-3 or SDCS-IOB-21 I/O expansion boards extend the drive’s digital and analog I/O capacity, enabling integration with field sensors, limit switches, and process transmitters without requiring a separate I/O controller. For multi-drive systems, the DCS550-S01-0405-05-00-00 can be synchronized with additional DCS550 units — such as the DCS550-S01-0205-05-00-00 or DCS550-S01-0610-05-00-00 — through a master-follower configuration managed at the PLC level, ensuring coordinated torque sharing and speed synchronization across multiple motor axes.

At the power layer, the drive requires a properly rated AC line reactor and input fusing to protect both the drive and the upstream transformer. An SDCS-POW-4 power supply board provides the internal 24 VDC logic supply, ensuring the drive’s control electronics remain operational even during brief AC supply interruptions. For applications requiring regenerative braking or four-quadrant operation, the DCS550 architecture supports fully regenerative configurations without external braking resistors, improving energy efficiency and reducing cabinet thermal load.

At the human-machine interface layer, an ABB CP600 or CP400 HMI panel connected to the AC500 PLC provides operators with real-time visibility into drive status, armature current, motor speed, and fault history. Alarm management and trend logging at the HMI level allow maintenance teams to identify developing faults before they result in unplanned downtime. The SDCS-COM fieldbus adapter also enables remote parameter access via ABB’s DriveWindow or DriveStudio engineering tools, supporting online parameter adjustment and drive diagnostics without physical access to the control cabinet.

Industrial Application Notes

In steel rolling mill applications, the DCS550-S01-0405-05-00-00 is deployed in multi-stand rolling lines where each mill stand requires an independently controlled DC drive synchronized to a common line speed reference. The drive’s fast current loop response and precise torque control ensure consistent strip tension between stands, preventing cobbles and surface defects. The PROFIBUS-DP interface allows the AC800M DCS to update speed references at millisecond intervals, maintaining synchronization across all drive axes even during acceleration and deceleration ramps.

In paper and pulp manufacturing, the DCS550 series drives are used in winder and unwinder sections where precise tension control is critical to product quality. The DCS550-S01-0405-05-00-00 operates in torque control mode, receiving tension setpoints from a tension controller integrated within the AC500 PLC. Field weakening control allows the drive to extend the motor’s speed range above base speed, enabling high-speed winding without motor oversizing.

In mining and mineral processing applications, the drive is used in conveyor drives, crusher drives, and hoist systems where high starting torque and robust fault tolerance are essential. The DCS550’s integrated field excitation control allows the drive to manage both armature and field current independently, optimizing motor efficiency across the full load range. The warranty terms confirmed during quotation provides procurement teams with the assurance needed to justify capital expenditure on critical drive infrastructure.

In chemical and petrochemical process plants, the DCS550-S01-0405-05-00-00 is installed in pump and compressor drives where continuous operation and process stability are paramount. The drive’s analog and digital I/O interfaces connect directly to field instruments and control valves, enabling closed-loop process control without an intermediate I/O controller. PROFIBUS-DP integration with the plant DCS allows centralized monitoring and control from the control room, reducing the need for local operator intervention.

Product Compatibility FAQ

Q1: Is the DCS550-S01-0405-05-00-00 compatible with ABB AC500 PLC systems and PROFIBUS-DP networks?
Yes. The DCS550 series is designed for direct integration with ABB AC500 PLC and AC800M DCS platforms via PROFIBUS-DP, using the SDCS-COM-8 fieldbus adapter. The adapter mounts directly onto the drive’s communication slot and requires no additional hardware. Parameter mapping between the PLC and drive is handled through standard PROFIBUS GSD files, and ABB’s DriveStudio software supports online commissioning and parameter backup. This makes the DCS550-S01-0405-05-00-00 a plug-and-play replacement within existing DCS550-based PROFIBUS networks, minimizing commissioning time and reducing the risk of configuration errors.

Q2: Can this drive be used as a direct replacement for an existing DCS550 unit in a running production system?
Yes, provided the replacement unit carries the same current rating and hardware revision. The DCS550-S01-0405-05-00-00 uses a modular parameter structure that allows parameter sets to be uploaded from the failed drive (if accessible) or downloaded from a backup file using DriveWindow. All I/O wiring, fieldbus connections, and power terminals follow the standard DCS550 terminal layout, so physical installation is straightforward. The warranty terms confirmed during quotation covers the replacement unit from the date of commissioning, providing operational assurance during the critical post-replacement period. It is recommended to verify the SDCS-CON-4 control board firmware version matches the existing system before commissioning.

Q3: What long-term maintenance considerations apply to the DCS550-S01-0405-05-00-00 in continuous-duty industrial applications?
Long-term reliability of the DCS550-S01-0405-05-00-00 depends on three primary maintenance areas: cooling system integrity, power semiconductor condition, and control board capacitor health. The internal cooling fan should be inspected and replaced on a scheduled basis — typically every 3 to 5 years depending on ambient dust levels. The DC bus capacitors on the SDCS-POW-4 power supply board have a finite service life and should be evaluated during major overhauls. ABB’s DriveStudio diagnostic tools provide runtime hour counters and fault log analysis that support condition-based maintenance scheduling. Maintaining a spare SDCS-CON-4 control board and SDCS-IOB-3 I/O board in the site spare parts inventory significantly reduces mean time to repair in the event of a board-level failure. All units supplied by ZYPLC include a warranty terms confirmed during quotation and are tested prior to shipment to verify full functional compliance with ABB factory specifications.
