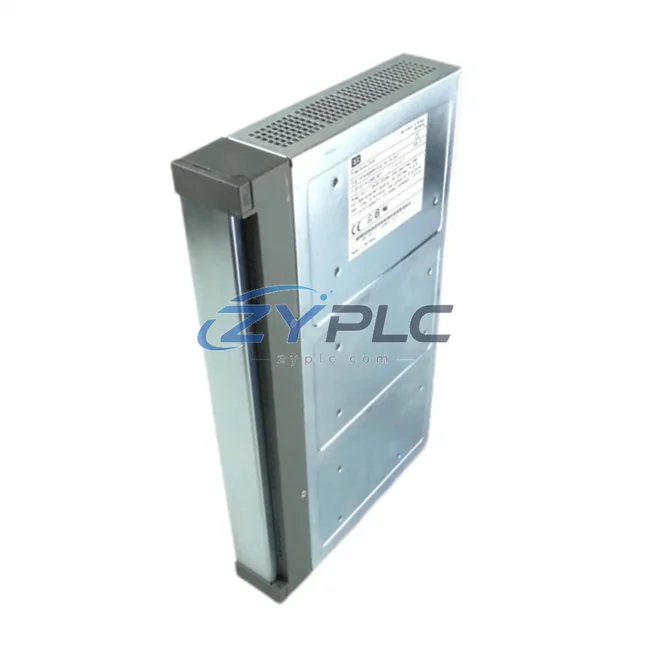

ABB DDO01 Digital Output for Advant DCS

ABB DDO01 Digital Output for Advant DCS

In a fully integrated Distributed Control System, every output module defines the boundary between digital logic and physical actuation. The ABB DDO01 Digital Output Module occupies a critical position within the Advant DCS control architecture — translating controller commands into reliable field-level switching signals that drive solenoids, relays, motor starters, and indicator panels across demanding industrial environments. Whether deployed in a greenfield automation project or as a precision replacement in an aging Advant installation, the DDO01 delivers the signal integrity, electrical isolation, and system compatibility that long-cycle industrial operations depend on.

The Advant DCS platform was engineered for layered, hierarchical control — and the DDO01 is purpose-built to operate within that hierarchy. At the control layer, the Advant Controller AC450 or AC410 issues discrete output commands through the system backplane. The DDO01 receives these commands and converts them into isolated 24 VDC or relay-switched outputs at the I/O layer, ensuring that field devices receive clean, debounced switching signals without introducing noise back into the control bus. This clean signal flow is essential in environments where electromagnetic interference from variable frequency drives, large motor contactors, or high-current switching equipment can corrupt unprotected I/O channels.

Within the Advant rack system, the DDO01 slots into the S100 I/O bus structure alongside complementary modules such as the DDI01 Digital Input Module and the DAI01 Analog Input Module. The rack backplane distributes both power and communication, allowing the DDO01 to participate in the system’s coordinated scan cycle without requiring dedicated wiring between modules. This architecture simplifies cabinet layout, reduces point-to-point wiring, and makes it straightforward to expand output capacity by adding additional DDO01 modules as process requirements grow. The modular design also supports hot-swap replacement in systems configured for redundant I/O, minimizing unplanned downtime during maintenance windows.

At the network layer, the Advant DCS communicates across MasterBus 300 or PROFIBUS DP segments, and the DDO01’s integration with the S100 bus ensures that output states are synchronized with the controller’s communication cycle. This tight coupling between the network layer and the I/O layer is what allows the Advant system to maintain deterministic response times — a requirement in process industries where output latency directly affects product quality or safety margins. In applications where the DDO01 controls shutdown valves or emergency isolation contactors, this determinism is not optional.

The human-machine interface layer interacts with DDO01 output states through the Advant Information Management system or third-party SCADA platforms connected via OPC. Operators can monitor output channel status in real time, and maintenance engineers can use the system’s diagnostic tools to identify open-circuit faults, short-circuit conditions, or channel failures without removing the module from service. This diagnostic transparency reduces mean time to repair and supports the kind of condition-based maintenance strategies that modern industrial operations require.

At the execution layer, the DDO01’s output channels connect directly to field devices — motor control center contactors, pneumatic valve solenoids, alarm annunciators, and process interlock relays. The module’s electrical isolation between the control-side logic and the field-side output protects the controller and backplane from voltage transients generated by inductive loads. In petrochemical, power generation, and water treatment applications, where field devices may be located hundreds of meters from the control cabinet, this isolation is a fundamental safety requirement.

ZYPLC maintains verified inventory of the ABB DDO01 alongside related Advant DCS components including the DAO01 Analog Output Module, the DSDO110 Digital Output Module from the DSQC series, and the DSDP140 PROFIBUS DP Communication Module. Each unit undergoes functional testing prior to shipment, covering channel-by-channel output verification, isolation resistance measurement, and backplane communication handshake confirmation. All DDO01 modules supplied by ZYPLC are backed by a warranty terms confirmed during quotation, providing engineering teams with the confidence to specify refurbished Advant components in both maintenance and capital project contexts.

For system integrators managing multi-site Advant installations, ZYPLC offers consolidated sourcing across the full S100 I/O range, reducing the procurement complexity associated with obsolete DCS spare parts. Lead times, stock levels, and technical documentation are available on request.

Product Specification Table

System Compatibility Notes

The DDO01 does not operate in isolation — its value is realized through its coordination with every other layer of the Advant DCS architecture. At the controller level, the Advant AC450 CPU module manages the scan cycle and issues output commands to the DDO01 via the S100 backplane. The CI522A Communication Interface module bridges the S100 bus to MasterBus 300, ensuring that output states are visible to the supervisory control layer without introducing additional latency into the I/O scan. Where PROFIBUS DP connectivity is required, the DSDP140 PROFIBUS DP Module provides the protocol gateway, allowing the DDO01’s output channels to be addressed from third-party controllers or SCADA systems.

On the power supply side, the Advant SD821 or SD822 Power Supply Module provides the regulated 24 VDC rail that feeds both the backplane logic and the DDO01’s field-side output circuits. Proper power architecture — including redundant power supplies in critical applications — ensures that a single power supply failure does not interrupt output channel availability. The DDO01’s internal design separates logic power from field power, allowing the field-side supply to be independently fused and monitored.

Adjacent I/O modules in the same rack — including the DDI01 Digital Input Module for feedback signal acquisition and the DAI01 Analog Input Module for process variable monitoring — complete the signal loop between field devices and the controller. In a typical process control cabinet, the DDO01 output channels drive field devices while the DDI01 captures the resulting feedback signals, creating a closed-loop verification path that the AC450 uses to confirm that output commands have been executed correctly. This architecture is particularly important in safety-instrumented systems where output confirmation is a functional safety requirement.

Industrial Application Notes

The ABB DDO01 has been deployed across a wide range of process industries where the Advant DCS platform established long-term control infrastructure. In power generation facilities, DDO01 modules control turbine auxiliary systems, cooling water valve actuators, and generator protection relay circuits — applications where output reliability directly affects plant availability. In petrochemical complexes, the DDO01 manages process isolation valves, pump motor starters, and flare system controls, operating continuously in environments with elevated ambient temperatures and high electromagnetic interference levels.

Water and wastewater treatment plants running Advant DCS installations rely on the DDO01 to control aeration blower contactors, chemical dosing pump starters, and sluice gate actuators across geographically distributed pump stations. The module’s compatibility with the Advant remote I/O architecture allows it to be deployed in field cabinets located far from the central control room, with communication maintained over the MasterBus 300 network. In mining and mineral processing operations, the DDO01 controls conveyor drive contactors, crusher motor starters, and dust suppression system valves — applications characterized by high inductive loads and frequent switching cycles that test output channel durability.

Packaging and discrete manufacturing lines that integrated Advant DCS for process coordination use the DDO01 to control pneumatic cylinder solenoids, reject gate actuators, and line status indicator panels. In these applications, output switching frequency is higher than in process industries, and the DDO01’s optocoupler isolation provides the electrical protection needed to prevent field-side transients from corrupting the controller’s logic state.

Product Compatibility FAQ

Q1: Is the ABB DDO01 compatible with all Advant DCS rack configurations?
The DDO01 is designed for the Advant S100 I/O bus and is compatible with standard Advant rack assemblies used with the AC450, AC410, and AC160 controller families. Slot assignment and address configuration follow standard Advant engineering procedures. ZYPLC can provide configuration guidance for specific rack layouts on request.

Q2: Can the DDO01 be used in a redundant I/O architecture?
Yes. In Advant DCS configurations designed for redundant I/O, the DDO01 can be paired with a redundant module in a mirrored rack slot. The controller manages output state synchronization between the primary and redundant modules, ensuring seamless failover without output interruption. Redundancy configuration requires appropriate controller firmware and rack hardware support.

Q3: What does the warranty terms confirmed during quotation cover, and what is the testing process?
Every DDO01 supplied by ZYPLC undergoes pre-shipment functional testing covering all output channels, isolation resistance verification, and backplane communication handshake confirmation. The warranty terms confirmed during quotation covers functional failures under normal operating conditions. ZYPLC supports RFQ sourcing for tested DDO01 modules and can provide expedited shipment for urgent maintenance requirements. Contact plc.sales@zyplc.com for warranty terms and technical support.
