ABB DO818 3BSE069053R1 Industrial Network Interface for AC800M Systems

ABB DO818 3BSE069053R1: Industrial Data Link for AC800M Smart Factory Networks

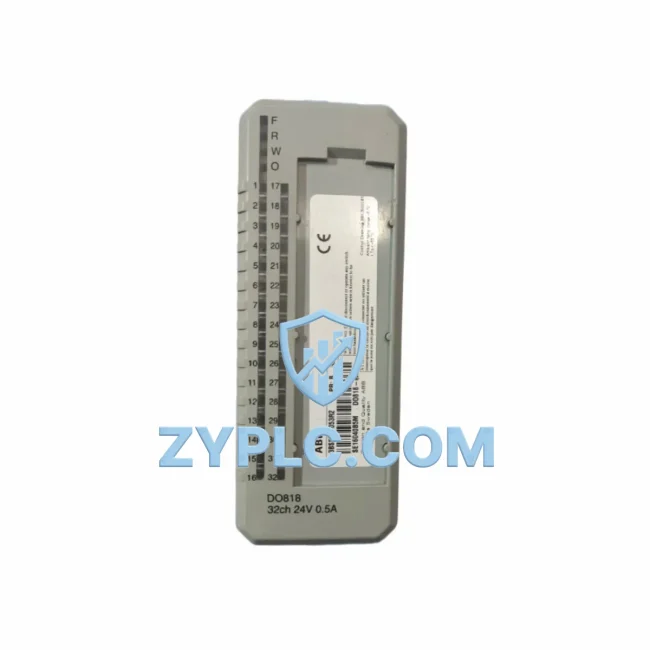

The ABB DO818 3BSE069053R1 is a high-density digital output module engineered for the ABB AC800M Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, oil & gas, chemical processing, and advanced manufacturing. Designed to bridge the gap between the controller layer and field actuators, the DO818 delivers deterministic, high-speed digital signal output across 32 channels, enabling precise command execution from the AC800M controller to solenoid valves, motor starters, relay panels, and other field devices.

In modern smart factory environments, the DO818 3BSE069053R1 functions as a critical node in the industrial data chain. Commands originating from SCADA supervisory systems — such as ABB System 800xA — travel through the AC800M controller backplane, pass through the S800 I/O bus, and are executed by the DO818 with sub-millisecond response times. This tight integration ensures that production sequences, safety interlocks, and process shutdowns are executed with the reliability that industrial operations demand.

Network Communication Table

Connected Automation Data Flow

The DO818 3BSE069053R1 sits at the output end of a sophisticated industrial data flow that begins at the sensor and signal acquisition layer. Field instruments — including ABB TZIDC digital positioners, pressure transmitters, and flow sensors — feed real-time process data upward through AI810 and AI835A analog input modules into the AC800M controller. The PM866 or PM891 processor modules execute control logic and generate output commands, which are then dispatched through the S800 I/O bus to the DO818 for field-level actuation.

For facilities running PROFIBUS DP networks, the CI840A PROFIBUS DP communication interface acts as a gateway between the AC800M backplane and third-party field devices, allowing the DO818 to operate within mixed-protocol environments. In plants where FOUNDATION Fieldbus H1 segments are deployed alongside legacy 4–20 mA loops, the CI873AK FOUNDATION Fieldbus interface enables seamless protocol bridging, ensuring that the DO818’s output commands remain synchronized with upstream field data.

At the HMI and SCADA layer, operators interact with the DO818’s output states through ABB System 800xA or third-party SCADA platforms via OPC DA/UA data servers. The AC800M controller continuously reports DO818 channel status — including open-circuit detection and load diagnostics — back to the SCADA historian, enabling real-time monitoring dashboards and alarm management. Remote I/O extensions using TB820V2 ModuleBus optical port modules allow the DO818 to be deployed in remote marshalling cabinets up to 100 meters from the main controller rack, dramatically reducing field cabling costs in large process plants.

In safety-critical applications, the DO818 3BSE069053R1 is often deployed alongside ABB HIMA or Triconex safety I/O modules in a layered architecture where the AC800M handles regulatory control while a dedicated Safety Instrumented System (SIS) manages emergency shutdown (ESD) logic. The DO818’s fast output response and channel-level diagnostics make it compatible with SIL 1 applications when configured within a validated AC800M safety loop.

Edge computing nodes — such as the ABB Edge Connect industrial gateway — can aggregate DO818 status data alongside data from variable frequency drives (VFDs), motor control centers (MCCs), and smart sensors, forwarding consolidated datasets to cloud-based MES or ERP platforms via MQTT or REST APIs. This positions the DO818 not merely as an output device, but as a data-generating node within the broader Industrial IoT (IIoT) architecture of a connected smart factory.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of control networks — legacy PLCs running proprietary protocols, DCS islands that cannot communicate with MES platforms, and field devices that generate data no upstream system can consume. The ABB DO818 3BSE069053R1 directly addresses these integration challenges within the AC800M ecosystem.

By supporting the S800 ModuleBus protocol natively and interfacing with PROFIBUS DP and FOUNDATION Fieldbus through dedicated communication interface modules, the DO818 eliminates the need for external protocol converters in most AC800M installations. Plants that previously relied on hardwired relay logic for output control can migrate to the DO818’s software-configurable channel architecture, enabling output assignments to be modified through ABB Control Builder Plus engineering software without physical rewiring.

For remote monitoring and diagnostics, the DO818’s built-in channel diagnostics — including short-circuit protection, open-load detection, and per-channel status reporting — feed directly into the AC800M’s fault management system. Maintenance engineers can identify a failed output channel from the System 800xA operator station without dispatching field personnel, reducing mean time to repair (MTTR) and minimizing unplanned downtime. This capability is especially valuable in offshore platforms, remote pipeline stations, and unmanned substations where physical access is costly and time-consuming.

Production line transparency is further enhanced by integrating DO818 output state data into OEE (Overall Equipment Effectiveness) dashboards via the AC800M’s OPC UA server. By correlating output command timestamps with upstream sensor data and downstream production counts, plant managers gain granular visibility into cycle times, equipment utilization, and process deviations — enabling data-driven decisions that improve throughput and reduce waste.

System expansion is straightforward: additional DO818 modules can be hot-inserted into the S800 I/O station without powering down the controller, supporting phased capacity expansions without production interruptions. Combined with the AC800M’s redundant controller and power supply options, the DO818 supports a fully fault-tolerant architecture suitable for continuous process industries where unplanned shutdowns carry significant financial and safety consequences.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DO818 3BSE069053R1 support?
The DO818 communicates natively over the S800 ModuleBus (Modulebus optical or electrical) within the AC800M I/O station. For PROFIBUS DP connectivity, a CI840A communication interface module is required. FOUNDATION Fieldbus H1 integration is supported via the CI873AK interface. The module is fully compatible with ABB System 800xA and third-party SCADA platforms via OPC DA/UA.

Q2: How does the DO818 3BSE069053R1 ensure network stability in high-noise industrial environments?
The DO818 features optical ModuleBus communication options that provide galvanic isolation between the controller backplane and field wiring, eliminating ground loop interference common in heavy industrial environments. Each output channel includes short-circuit and overload protection, and the module continuously reports channel health status to the AC800M controller, enabling proactive fault detection before failures impact production.

Q3: Can the DO818 be integrated into existing SCADA and HMI systems without replacing the entire DCS?
Yes. The DO818 integrates seamlessly into existing AC800M installations and is accessible from any SCADA or HMI platform that supports OPC DA/UA, including Wonderware, Ignition, and Siemens WinCC. No hardware changes to the controller or communication infrastructure are required — the module is recognized automatically by the AC800M upon insertion and configured through ABB Control Builder Plus.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the DO818 3BSE069053R1?
Every ABB DO818 3BSE069053R1 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including channel output continuity checks, communication bus handshake verification, and visual inspection for component integrity. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for same-day or next-day dispatch, with global logistics support to minimize lead times for urgent maintenance requirements.

—
