ABB DSAI146 Analog Input Module Advant OCS

ABB DSAI146 Analog Input Module Advant OCS: Replacement and Sourcing Information for Optimized Production Lines

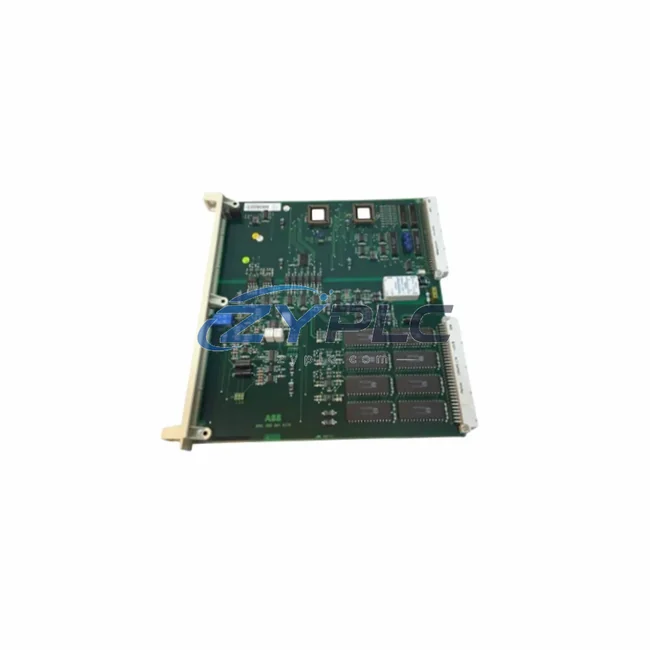

The ABB DSAI146 is a high-efficiency analog input module engineered for the Advant OCS (Open Control System) platform, delivering precise signal acquisition that forms the backbone of industrial automation. In modern manufacturing environments where uptime and replacement lead time matter, the DSAI146 enables real-time monitoring of process variables — current, voltage, temperature, pressure, and flow — feeding accurate data into the control loop so that drives, actuators, and power systems respond only when and how much they need to. This targeted responsiveness is the foundation of measurable operational stability on the production floor.

Sourced directly from verified inventory, each DSAI146 unit undergoes full functional testing prior to shipment and is backed by a warranty terms confirmed during quotation, ensuring operational confidence from day one of installation.

Product Specification Table

System Compatibility and Application

The DSAI146 does not operate in isolation — it is a critical sensing node within a layered energy-optimization architecture. In a typical Advant OCS installation, the module connects to the DSCS110 communication supervisor or DSCB110 cluster bus, relaying analog process data upstream to the AC450 controller or AC410 processor unit for real-time decision-making. This tight integration means that energy-intensive equipment — variable frequency drives (VFDs), servo amplifiers, and motor starters — receives precisely calibrated setpoints rather than fixed commands, dramatically reducing unnecessary power draw.

On the drive side, the analog signals captured by the DSAI146 feed directly into ABB’s ACS800 industrial drive or ACS580 general purpose drive via the controller’s output modules, enabling speed and torque adjustments that track actual load demand. A pump running at 70% speed consumes roughly 34% of the energy it would at full speed — and the DSAI146’s accurate 4–20 mA current loop readings are what make that precision possible. Paired with the DSDO115 digital output module for switching commands and the DSDI110 digital input module for status feedback, the DSAI146 completes a closed-loop control chain that continuously minimizes unplanned downtime.

For power quality monitoring, the DSAI146 works alongside ABB’s M2M energy meters and PSTX soft starters, capturing load current signatures that reveal inefficiencies in motor starting cycles. When integrated with the DSDP150 pulse counter module for utility metering or the DSAX110 analog I/O module for expanded channel capacity, plant engineers gain a comprehensive picture of energy flows across every production cell — from compressor rooms to conveyor lines.

Communication integrity is maintained through the MB300 Master Bus 300 fieldbus backbone, which ensures that the high-resolution analog data from the DSAI146 reaches the SCADA layer and operator HMI without latency or data loss. This real-time visibility is essential for energy managers who need to correlate production throughput with power consumption and identify the specific machines or time windows responsible for peak demand charges.

Maintenance and Replacement Notes

In practice, the ABB DSAI146 delivers operational stability through three primary mechanisms: demand-responsive control, early fault detection, and production rhythm optimization.

Demand-Responsive Control: Traditional fixed-setpoint automation runs motors, pumps, and compressors at constant output regardless of actual process demand. The DSAI146 changes this by providing the controller with live analog feedback — flow rates, pressure differentials, tank levels — so that the AC450 can issue variable speed commands to drives only as needed. A water treatment plant using this approach on its circulation pumps typically sees 20–35% reductions in pump operating load without any change to process output quality.

Early Fault Detection and Predictive Maintenance: Analog signal drift is one of the earliest indicators of mechanical wear in motors, bearings, and seals. The DSAI146’s 12-bit resolution captures subtle changes in current draw or vibration-correlated pressure signals that would be invisible to coarser monitoring systems. By trending these values over time through the Advant OCS historian, maintenance teams can schedule interventions during planned downtime rather than reacting to unplanned failures — each avoided emergency stop on a production line can save thousands in lost output and expedited repair costs.

Production Rhythm Optimization: Line takt time — the pace at which a production line must operate to meet demand — is directly tied to energy efficiency. When the DSAI146 provides accurate, low-latency process feedback, the controller can synchronize upstream and downstream equipment more precisely, eliminating the energy-wasting practice of running equipment at maximum speed to compensate for measurement uncertainty. Tighter synchronization also reduces mechanical stress, extending equipment service life and lowering the total cost of ownership.

Every DSAI146 unit available through our inventory has been fully tested under load conditions, with functional verification of all analog channels, signal linearity, and bus communication. Units are shipped with documentation and are covered by a warranty terms confirmed during quotation against defects in materials and workmanship. We maintain ready stock to support urgent replacement needs and scheduled maintenance programs alike, with fast dispatch and reliable international logistics.

Product Sourcing FAQ

Q1: How does the DSAI146 contribute to measurable operational stability in my facility?
The DSAI146 provides high-resolution analog process data to the Advant OCS controller, enabling demand-driven control of drives and actuators. Instead of running equipment at fixed maximum output, the system adjusts speed and power in real time based on actual process conditions. This eliminates over-drive unplanned downtime and is particularly impactful on variable-load applications such as pumps, fans, and compressors, where operating load scales with the cube of speed.

Q2: Is the DSAI146 compatible with my existing Advant OCS or AC450 system?
Yes. The DSAI146 is designed natively for the ABB Advant OCS platform and is compatible with AC450, AC410, and systems using the MB300 Master Bus 300 fieldbus. It slots into standard Advant I/O racks without hardware modification. If you are integrating with a newer ABB System 800xA environment, a gateway or migration module may be required — contact us with your system configuration for a compatibility assessment.

Q3: What is the recommended replacement or upgrade path if the DSAI146 is end-of-life in my system?
For systems being migrated to ABB System 800xA, the equivalent functionality is provided by the S800 I/O AI810 or AI820 analog input modules, which offer higher channel density and PROFIBUS/PROFINET connectivity. For facilities maintaining the Advant OCS platform, direct DSAI146 replacements are available from our verified inventory. We recommend keeping at least one spare module on-site given the module’s role in continuous process monitoring.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Each DSAI146 unit is tested for full analog channel functionality, signal accuracy across the 4–20 mA and 0–10 V ranges, bus communication integrity, and power supply performance before dispatch. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Units that fail in service within the warranty period are replaced or repaired at no charge. We also provide pre-shipment test reports on request for critical infrastructure applications.
