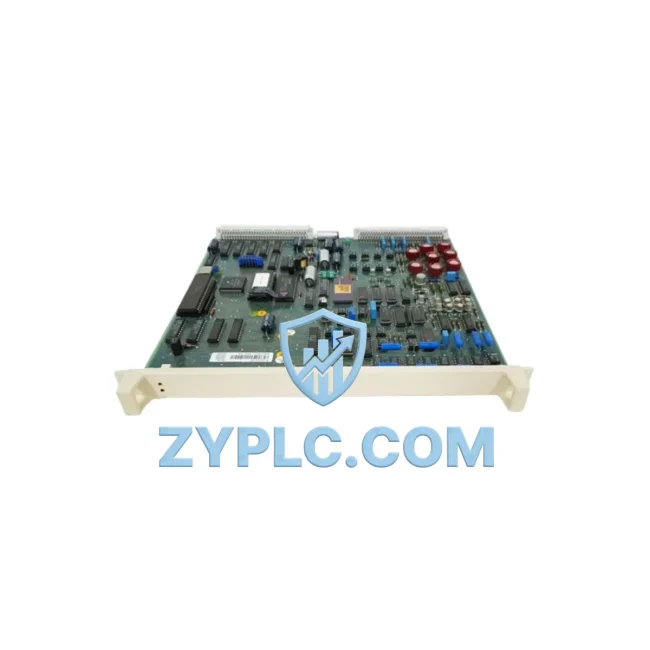

ABB DSAX110 57120001-P Industrial Network Interface for Advant Systems

ABB DSAX110 57120001-P: Bridging Industrial Data Links in Advant DCS Smart Factory Architecture

In modern industrial automation, seamless data flow between field devices, controllers, and supervisory systems is the backbone of operational efficiency. The ABB DSAX110 57120001-P Analog I/O Board is engineered to serve as a critical connectivity node within the ABB Advant Distributed Control System (DCS) architecture — enabling reliable signal acquisition, protocol-consistent data transmission, and real-time process visibility across layered automation networks.

As manufacturing plants, power utilities, petrochemical facilities, and water treatment operations push toward full digital integration, the DSAX110 57120001-P delivers the analog signal conditioning and I/O interface capabilities that keep field-level data flowing accurately into the control and supervisory layers. Its role is not simply that of a passive I/O board — it is an active participant in the intelligent data chain that connects sensors and actuators to SCADA platforms, HMI workstations, and enterprise-level MES systems.

Network Communication Table

Connected Automation Data Flow

The DSAX110 57120001-P operates at the intersection of the field layer and the control layer, where analog signals from pressure transmitters, temperature sensors, flow meters, and valve positioners must be accurately digitized and delivered to the DCS processor without latency or signal degradation. Within the ABB Advant architecture, this board slots into the AC 450 or AC 460 controller backplane, working in concert with the DSMB 127 MasterBus 300 communication module to relay process data upstream to the supervisory network.

At the field level, instruments such as ABB 266 series pressure transmitters and TTF300 temperature field transmitters feed 4–20 mA signals directly into the DSAX110’s analog input channels. These signals are conditioned, scaled, and passed to the DSPC 172 processor board — the computational core of the Advant controller — where control algorithms execute PID loops, cascade control, and feedforward strategies based on real-time process values.

For remote I/O expansion across large plant footprints, the DSAX110 57120001-P integrates with DSTD 108 digital I/O modules and DSDO 115 digital output boards mounted in distributed I/O cabinets, all communicating back to the central controller via the AF 100 Advant Fieldbus. This architecture eliminates the need for long analog cable runs, reducing signal noise and installation costs while maintaining deterministic data delivery.

At the supervisory layer, the ABB Advant Station 500 series operator workstation — running the MasterView 800 HMI software — receives real-time analog process data from the DSAX110 via the controller’s communication stack. SCADA integration is achieved through the DSCOM 100 communication gateway, which bridges the Advant network to Ethernet-based SCADA platforms using OPC DA/UA protocols, enabling plant-wide data aggregation, alarm management, and historical trending.

For drive-level integration, the DSAX110’s analog outputs connect to ABB ACS800 series variable frequency drives, providing speed reference signals and enabling closed-loop process control for pump, fan, and compressor applications. This analog command link ensures smooth drive response and eliminates the communication latency that can occur with purely digital command interfaces in time-critical process loops.

Power integrity for the entire I/O subsystem is maintained by the DSPU 100 power supply unit, which provides regulated 24 VDC to the backplane and all installed I/O boards including the DSAX110. Redundant power configurations are supported, ensuring that a single power supply failure does not interrupt analog signal acquisition — a critical requirement in continuous process industries where unplanned shutdowns carry significant financial and safety consequences.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — where field-level analog signals remain trapped in proprietary controller architectures, inaccessible to modern SCADA platforms, cloud analytics systems, or enterprise MES databases. The ABB DSAX110 57120001-P directly addresses this challenge by providing a standards-aligned analog I/O interface that bridges the gap between legacy Advant DCS infrastructure and contemporary industrial network architectures.

In petrochemical and refinery applications, where hundreds of analog loops monitor temperature, pressure, flow, and level across distillation columns and reactor vessels, the DSAX110 enables plant engineers to maintain full process transparency without replacing the entire DCS infrastructure. By retaining the proven Advant controller platform while upgrading communication gateways and SCADA front-ends, facilities achieve digital transformation at a fraction of the cost of full system replacement.

In power generation facilities, the DSAX110 supports turbine control, boiler management, and generator excitation monitoring by providing high-accuracy analog signal acquisition with the reliability demanded by grid-connected generation assets. Its compatibility with the Advant MasterBus 300 network ensures that critical process data reaches the control room operator workstation within the deterministic timeframes required for safe plant operation.

For water and wastewater treatment plants operating across geographically distributed pump stations and treatment facilities, the DSAX110’s integration with remote I/O architectures and SCADA gateways enables centralized monitoring and control from a single operations center — eliminating the need for on-site personnel at every remote location and reducing operational expenditure while improving response times to process deviations and equipment alarms.

In mining and metallurgical applications, where conveyor systems, crushers, mills, and flotation cells generate continuous streams of analog process data, the DSAX110 provides the signal acquisition backbone that feeds real-time data to process optimization algorithms and production management systems. Its robust industrial design ensures reliable operation in environments characterized by vibration, dust, and wide temperature fluctuations.

Industrial Connectivity FAQ

Q1: Is the ABB DSAX110 57120001-P compatible with both AC 450 and AC 460 Advant controllers?
A: Yes. The DSAX110 57120001-P is designed for use within the ABB Advant DCS controller family, including the AC 450 and AC 460 platforms. It installs into the standard Advant backplane and communicates with the processor board via the internal bus. Before installation, verify the backplane slot configuration and firmware revision of your controller to ensure full compatibility. Our technical team can assist with compatibility verification prior to shipment.

Q2: What communication protocols does the DSAX110 support for SCADA and HMI integration?
A: The DSAX110 57120001-P operates within the ABB Advant Fieldbus (AF 100) and MasterBus 300 network architecture. For integration with modern SCADA and HMI systems, the Advant controller communicates via the DSCOM 100 gateway using OPC DA/UA, Modbus TCP, or PROFIBUS DP protocol bridges. This enables the DSAX110’s analog data to be accessed by any SCADA platform supporting these standard industrial protocols, including Wonderware, iFIX, and Ignition.

Q3: What does the 12-Month Warranty cover, and what is the pre-shipment testing process?
A: Every ABB DSAX110 57120001-P supplied by ZYPLC is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm analog channel integrity, backplane communication, and signal conditioning accuracy. Units are shipped in anti-static packaging with full traceability documentation. In the event of a warranty claim, ZYPLC provides rapid replacement or repair support to minimize system downtime.

Q4: Can the DSAX110 57120001-P be used in a redundant DCS architecture?
A: The Advant DCS platform supports controller redundancy configurations where dual processor boards operate in hot-standby mode. The DSAX110 I/O board participates in this architecture by providing shared analog I/O access to both the primary and standby controllers. For applications requiring I/O redundancy, additional DSAX110 boards can be configured in parallel I/O arrangements with appropriate backplane and wiring modifications. Consult the ABB Advant system engineering documentation or contact ZYPLC for redundancy configuration guidance specific to your installation.
