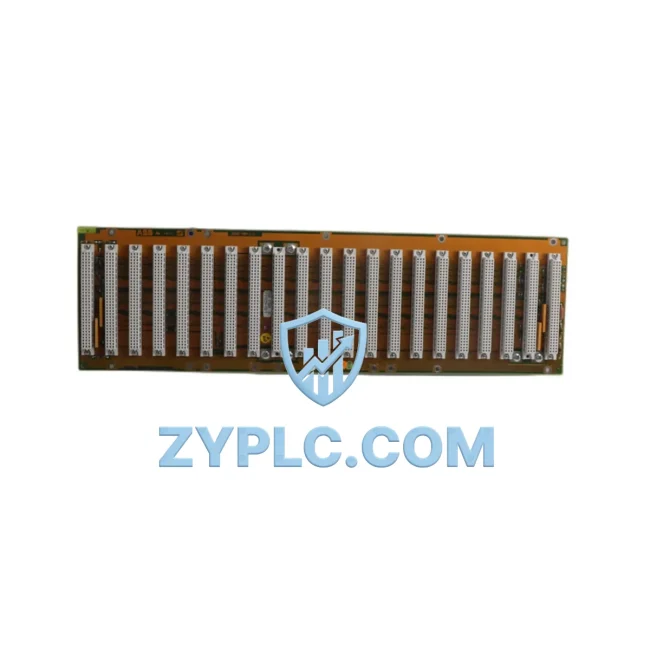

The ABB DSBB170A 57310256-EB is a high-performance bus backplane board engineered for the ABB AC800M Distributed Control System (DCS) platform. Designed to serve as the physical and logical backbone of the AC800M controller rack, this module enables seamless ModuleBus communication between the central processing unit and all connected I/O modules, communication interfaces, and fieldbus gateways. In modern smart factory environments where data continuity, protocol integrity, and network uptime are non-negotiable, the DSBB170A delivers the structural reliability that industrial automation demands.

Network Communication Table

Connected Automation Data Flow

In a fully integrated AC800M control architecture, the DSBB170A 57310256-EB backplane board acts as the central data highway, coordinating real-time signal exchange across every layer of the automation stack. At the field level, sensors and actuators transmit process variables — temperature, pressure, flow, and position — through distributed I/O modules such as the ABB AI810 analog input module and ABB DI810 digital input module. These signals are routed via the ModuleBus backplane directly to the ABB PM864A or PM866K01 processor module, where control logic is executed in real time.

For plants requiring fieldbus connectivity, communication interface modules such as the ABB CI854A (PROFIBUS DP master) or CI801 (FOUNDATION Fieldbus HSE) plug directly into the backplane, enabling the AC800M to communicate with intelligent field devices, variable frequency drives, and remote I/O clusters without protocol conversion overhead. Where legacy Modbus RTU devices are present on the plant floor, the CI840A DeviceNet interface or a dedicated Modbus gateway bridges the communication gap, ensuring that older instrumentation remains visible within the SCADA layer.

At the supervisory level, the AC800M controller — supported by the DSBB170A backplane — connects to ABB System 800xA SCADA/DCS software via Ethernet, delivering live process data to operator HMI stations. Alarm management, trend logging, and remote diagnostics are all handled through this unified data path. For edge computing applications, an industrial edge gateway can be inserted between the controller network and the cloud analytics platform, enabling predictive maintenance and OEE monitoring without disrupting the real-time control loop.

In multi-rack configurations, additional DSBB170A backplane boards expand the I/O capacity of the AC800M system, allowing engineers to scale the control architecture as production lines grow. Each backplane board maintains synchronous communication with the master CPU, ensuring that data latency remains within deterministic bounds even as the system expands.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is the coexistence of multiple communication protocols across different generations of equipment. Legacy PLCs running Modbus RTU, newer controllers using PROFIBUS DP, and modern IIoT-enabled devices communicating over Ethernet/IP often operate in isolated data silos, making plant-wide visibility impossible without dedicated protocol conversion infrastructure.

The ABB DSBB170A 57310256-EB addresses this challenge by providing a unified backplane communication layer within the AC800M rack. By hosting multiple communication interface modules simultaneously — including PROFIBUS, FOUNDATION Fieldbus, Modbus, and HART gateways — the AC800M system transforms the DSBB170A into a multi-protocol aggregation point. Field device data from every protocol domain is normalized within the AC800M controller and presented as a single, coherent dataset to the SCADA and MES layers above.

Remote monitoring and diagnostics are equally well served. Because the AC800M controller maintains a live Ethernet connection to the System 800xA platform, maintenance engineers can access real-time module health data, communication error logs, and I/O channel diagnostics from any authorized workstation on the plant network — or remotely via secure VPN. This eliminates the need for on-site troubleshooting in hazardous or hard-to-reach areas, reducing mean time to repair (MTTR) and improving overall plant availability.

For production line transparency, the DSBB170A-based AC800M architecture supports OPC UA data publishing, enabling seamless integration with MES, ERP, and cloud analytics platforms. Every process variable, alarm event, and controller status message can be tagged, timestamped, and forwarded upstream, giving plant managers the real-time production intelligence they need to optimize throughput, reduce waste, and meet quality targets.

System expansion is equally straightforward. Additional I/O modules, communication interfaces, and even redundant processor modules can be added to the AC800M rack without interrupting ongoing production, provided the backplane board supports the required slot count. The DSBB170A is designed for long-term serviceability, with ABB’s global spare parts network ensuring continued availability for installed base customers.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSBB170A 57310256-EB support?
The DSBB170A is a ModuleBus backplane board and does not itself implement fieldbus protocols. However, it provides the physical and electrical interconnect for ABB AC800M communication interface modules — such as CI854A for PROFIBUS DP, CI801 for FOUNDATION Fieldbus, and CI840A for DeviceNet — enabling the AC800M system to communicate across multiple industrial protocols simultaneously.

Q2: Is the DSBB170A compatible with all AC800M processor modules?
The DSBB170A 57310256-EB is designed for the ABB AC800M controller platform and is compatible with processor modules including the PM861A, PM864A, PM866K01, and related variants. Compatibility should be verified against the specific rack configuration and firmware revision in use at your site. Our technical team can assist with cross-referencing prior to order placement.

Q3: How does this module contribute to network stability in a 24/7 process control environment?
The DSBB170A provides a deterministic, high-speed ModuleBus communication path between the AC800M CPU and all installed I/O and communication modules. Because the backplane operates as a synchronous bus with fixed scan cycles, communication latency is predictable and bounded — a critical requirement for process control applications where timing deviations can trigger false alarms or unsafe conditions. The module is rated for continuous industrial operation and undergoes functional testing before shipment.

Q4: What warranty and quality assurance does ZYPLC provide for this module?
Every ABB DSBB170A 57310256-EB unit supplied by ZYPLC carries a 12-month warranty covering functional defects under normal operating conditions. Each module is inspected and tested prior to dispatch to verify communication integrity and physical condition. We maintain in-stock inventory of this and related AC800M components to support urgent replacement and MRO procurement requirements. For volume orders or expedited delivery, contact our sales team directly.
