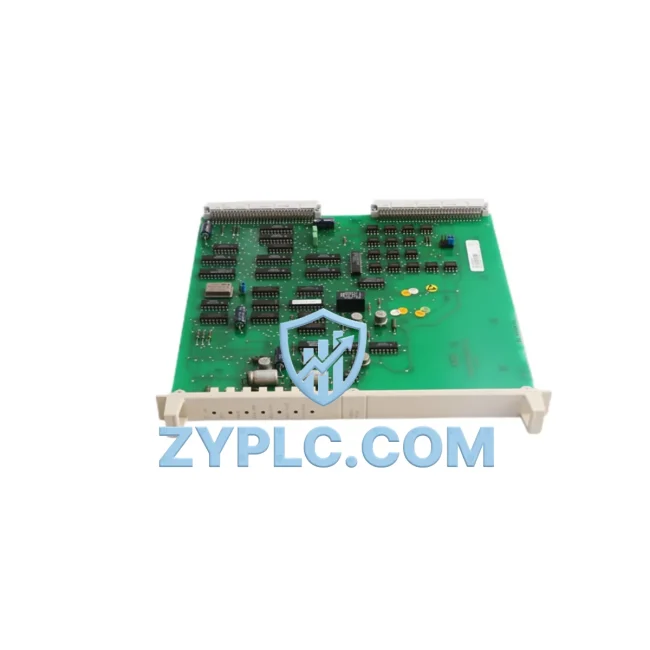

ABB DSBC173 Industrial Network Interface for AC500 Systems

ABB DSBC173 Industrial Network Interface for AC500 Systems: Enabling Seamless Data Links Across Smart Factory Architectures

In modern industrial environments where production continuity depends on uninterrupted data flow, the ABB DSBC173 Bus Extender serves as a critical backbone component within the AC500 PLC ecosystem. Designed specifically for the S100 I/O Bus architecture, the DSBC173 extends the physical reach of the I/O bus, enabling distributed field devices — including remote I/O modules, signal conditioning units, and sensor clusters — to communicate reliably with the central AC500 CPU over extended distances without signal degradation or latency spikes. This capability is foundational to any smart factory deployment where field instrumentation is geographically spread across large production floors, substations, or multi-zone process areas.

The DSBC173 operates within ABB’s well-established AC500 modular PLC platform, a system renowned for its scalability, deterministic communication, and compatibility with a broad range of industrial protocols. When integrated into a control cabinet alongside the ABB PM573 or PM591 CPU modules, the DSBC173 allows engineers to extend the S100 I/O bus segment beyond its standard physical limits, connecting additional SM560 or TU515 terminal unit assemblies without reconfiguring the core control logic. This plug-and-play bus extension approach dramatically reduces commissioning time and simplifies future system expansions.

Network Communication Table

Connected Automation Data Flow

The data flow within an AC500-based control system begins at the field level, where sensors, actuators, and process instruments generate raw signals that must be reliably captured, conditioned, and transmitted upstream. The ABB DSBC173 sits at the intersection of this signal chain, bridging the gap between the CPU’s local I/O bus and the extended remote I/O segments deployed across the plant floor.

Consider a typical smart factory scenario: a PM591 AC500 CPU manages a multi-zone production line. Zone A is located adjacent to the control cabinet, served by local SM560-S digital I/O modules mounted directly on the CPU rack. Zone B, however, is 30 meters away — too far for a standard S100 I/O bus connection. By inserting the DSBC173 Bus Extender at the end of the local bus segment, engineers can extend the bus to a remote rack housing additional TU515 terminal units and SM532 analog input modules, which collect 4–20mA signals from pressure transmitters and flow meters in Zone B.

This extended data path feeds real-time process values into the AC500 CPU’s memory, where the control program executes PID loops, interlock logic, and alarm management routines. The processed data is then forwarded via the CPU’s onboard PROFIBUS DP or Modbus TCP communication ports to the plant’s SCADA system — typically running on platforms such as ABB System 800xA or Wonderware InTouch — where operators monitor KPIs, trend historical data, and respond to process deviations in real time.

For drive integration, the AC500 CPU communicates with ABB ACS880 variable frequency drives over PROFIBUS or PROFINET, receiving speed feedback and issuing torque commands. The DSBC173 ensures that the I/O bus supporting the drive’s digital I/O interface cards remains stable and latency-free, even under high-cycle-rate control demands. Similarly, ABB CP600 HMI panels connected via Ethernet to the AC500 CPU display live process data sourced from both local and remote I/O modules — all made possible by the reliable bus extension that DSBC173 provides.

In safety-critical applications, the DSBC173 supports integration with ABB AC500-S safety PLC modules, where the integrity of the I/O bus is paramount. Any communication fault on the bus is immediately detected by the safety CPU, triggering a controlled safe-state response. Remote diagnostic tools, accessible via the AC500’s built-in web server or through ABB Automation Builder engineering software, allow maintenance engineers to interrogate bus health, identify faulty nodes, and perform firmware updates without physical access to the cabinet — a key enabler of predictive maintenance strategies in Industry 4.0 environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, controllers, and supervisory systems operate in silos, unable to share process data efficiently. This problem is particularly acute in legacy plants where different generations of equipment use incompatible communication protocols, or in large facilities where physical distance limits the reach of standard bus architectures.

The ABB DSBC173 directly addresses the physical layer of this challenge by extending the S100 I/O bus, allowing the AC500 PLC to reach remote I/O nodes that would otherwise require a separate controller or a costly protocol gateway. By consolidating remote I/O under a single CPU, the DSBC173 eliminates the need for peer-to-peer communication between multiple PLCs, reducing network complexity and the risk of data inconsistency between controllers.

For plants undergoing digital transformation, the DSBC173 enables a phased approach to production line transparency. Engineers can begin by extending the I/O bus to capture data from previously isolated field zones, then progressively integrate this data into SCADA dashboards, MES platforms, and cloud-based analytics systems. This incremental connectivity strategy minimizes disruption to ongoing production while steadily building the data infrastructure needed for OEE monitoring, predictive maintenance, and energy management.

Remote monitoring is another area where the DSBC173 delivers tangible value. By ensuring that remote I/O modules remain reliably connected to the AC500 CPU, the DSBC173 supports continuous data acquisition from distant field points — enabling remote diagnostics, alarm forwarding, and trend analysis without requiring on-site personnel. In multi-site operations, this capability translates directly into reduced travel costs and faster mean-time-to-repair (MTTR) for field instrumentation faults.

System scalability is built into the DSBC173’s design philosophy. As production capacity grows and new process zones are added, additional I/O modules can be connected to the extended bus segment without modifying the existing control program structure. This forward-compatible architecture protects the initial automation investment and supports long-term plant evolution.

Every DSBC173 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify bus communication integrity, connector condition, and firmware version compatibility. Units are shipped with full traceability documentation, supporting quality audits and maintenance records. A 12-month warranty covers all hardware defects, with technical support available throughout the warranty period.

Industrial Connectivity FAQ

Q1: Does the ABB DSBC173 introduce communication latency when extending the S100 I/O Bus?
The DSBC173 is engineered to maintain the deterministic timing characteristics of the S100 I/O Bus. Bus cycle times remain consistent with standard AC500 I/O configurations, ensuring that time-critical control loops — such as PID regulation and safety interlocks — are not adversely affected by the bus extension.

Q2: Is the DSBC173 compatible with all AC500 CPU modules and I/O families?
The DSBC173 is designed for use within the AC500 S100 I/O Bus architecture and is compatible with the AC500 PM5xx CPU family and associated S100 I/O modules. Compatibility with specific CPU firmware versions and I/O module generations should be verified against ABB’s AC500 system compatibility matrix prior to installation.

Q3: How does ZYPLC ensure network stability and product quality for the DSBC173?
Each DSBC173 unit is subject to pre-shipment functional testing, including bus communication verification and physical inspection. Units are sourced from verified supply channels and shipped with traceability documentation. The 12-month warranty covers hardware defects identified during normal operating conditions.

Q4: Can the DSBC173 support system expansion without reprogramming the AC500 CPU?
Yes. The DSBC173 extends the physical bus segment, allowing additional I/O modules to be added to the remote rack without modifying the CPU’s communication configuration. New I/O points are mapped within the existing AC500 project in ABB Automation Builder, making system expansion straightforward and minimally disruptive to ongoing production.
