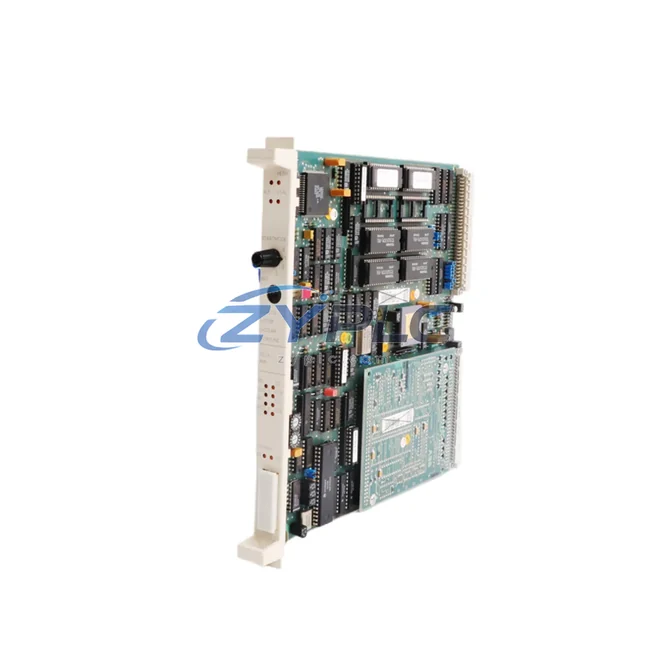

ABB DSCA180B 57520001-GZ Industrial Network Interface for Advant Systems

ABB DSCA180B 57520001-GZ: Industrial Data Link for Smart Factory Connectivity

The ABB DSCA180B 57520001-GZ is a high-performance communication gateway engineered for the Advant series control architecture. Designed to bridge field-level devices with supervisory systems, this module enables seamless protocol conversion, real-time data transmission, and reliable network integration across complex industrial environments. Whether deployed in process automation, discrete manufacturing, or hybrid production lines, the DSCA180B 57520001-GZ serves as the critical communication backbone that connects PLCs, remote I/O stations, HMI panels, SCADA platforms, and edge computing nodes into a unified, transparent data network.

In modern smart factory deployments, data isolation remains one of the most persistent challenges. Legacy field devices often operate on proprietary or older industrial protocols that cannot natively communicate with contemporary Ethernet-based supervisory systems. The ABB DSCA180B 57520001-GZ resolves this by acting as an intelligent protocol translator — converting signals from field instruments, sensors, and actuators into structured data packets that upper-level systems can process, log, and act upon in real time. This capability is fundamental to achieving full production line transparency, predictive maintenance, and remote diagnostics without requiring costly hardware replacements across the plant floor.

Compatibility & Integration Notes

Connected Automation Data Flow

The DSCA180B 57520001-GZ sits at the heart of a layered industrial communication architecture. At the field level, sensors and actuators — including pressure transmitters, flow meters, and proximity switches — generate continuous process signals. These signals are collected by remote I/O modules such as the ABB S800 I/O series, which aggregate analog and digital inputs before forwarding structured data upstream via the Advant fieldbus. The DSCA180B 57520001-GZ receives this data stream and performs real-time protocol conversion, making it immediately consumable by higher-level controllers.

Within the control layer, the gateway interfaces directly with ABB AC 450 and AC 110 process controllers, ensuring that cyclic data — including setpoints, feedback values, and alarm states — is exchanged with deterministic timing. For distributed control architectures, the module also supports communication with ABB Advant Controller 160 (AC 160) units deployed across multiple production cells, enabling coordinated multi-zone automation without introducing communication bottlenecks.

At the supervisory level, the DSCA180B 57520001-GZ feeds real-time process data to ABB Industrial IT / System 800xA SCADA platforms, where operators can monitor KPIs, configure alarm thresholds, and generate production reports. HMI panels — including ABB CP600 operator panels — receive live data streams through the gateway, providing floor-level operators with accurate, up-to-date process visualization. For facilities running third-party SCADA systems such as Wonderware InTouch or Ignition, the Modbus TCP output of the DSCA180B ensures cross-platform compatibility without additional middleware.

In drive and motion control applications, the gateway bridges communication between ABB ACS800 variable frequency drives and the Advant control network, enabling speed reference commands and drive status feedback to flow bidirectionally across the automation hierarchy. Similarly, for safety-critical loops, the module can relay data from ABB Freelance safety controllers to the central SCADA, ensuring that emergency stop events and safety interlocks are logged and acknowledged in real time.

Edge computing nodes and industrial IoT gateways — such as the ABB Edge Controller EC2 — can also leverage the DSCA180B 57520001-GZ as a data source, pulling structured process data for cloud analytics, digital twin synchronization, and AI-driven predictive maintenance applications. This positions the module not only as a legacy integration tool but as a forward-compatible component in Industry 4.0 architectures.

Solving Data Isolation in Industrial Sites

One of the most common pain points in industrial automation is the coexistence of multiple, incompatible communication protocols across different generations of equipment. A plant may simultaneously operate PROFIBUS DP field networks, legacy MasterBus 300 segments, and modern Industrial Ethernet backbones — each carrying critical process data that cannot natively cross protocol boundaries. The ABB DSCA180B 57520001-GZ directly addresses this challenge by providing transparent, bidirectional protocol conversion that eliminates data silos without requiring system-wide hardware upgrades.

Remote monitoring and diagnostics are equally transformed by this gateway. Maintenance engineers can access live device health data, communication error counters, and network traffic statistics from a central SCADA workstation or even a remote operations center, dramatically reducing the need for on-site troubleshooting. When a field device reports an anomaly — such as a sensor out-of-range condition or a drive fault — the DSCA180B ensures that the alarm is propagated immediately through the network hierarchy, triggering automated responses and notifying the appropriate personnel within seconds.

For production line transparency, the gateway enables real-time OEE (Overall Equipment Effectiveness) tracking by ensuring that machine status, cycle counts, and downtime events are continuously streamed to MES and ERP systems. This data visibility allows plant managers to identify bottlenecks, optimize scheduling, and reduce unplanned downtime. System expansion is equally straightforward: additional field devices, I/O modules, or control nodes can be integrated into the existing network by configuring new communication channels through the DSCA180B, without disrupting ongoing production.

Every ABB DSCA180B 57520001-GZ unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, protocol handshaking, and data throughput under simulated load conditions. This ensures that the module arrives ready for immediate installation and commissioning, minimizing project delays and integration risks.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSCA180B 57520001-GZ support?
The DSCA180B 57520001-GZ supports multiple industrial protocols including PROFIBUS DP, Modbus RTU, Modbus TCP, MasterBus 300, and SINEC H1, as well as standard Industrial Ethernet. This multi-protocol capability makes it suitable for integration across diverse automation platforms and legacy system environments.

Q2: Is the DSCA180B 57520001-GZ compatible with third-party SCADA and HMI systems?
Yes. Via its Modbus TCP and Industrial Ethernet interfaces, the gateway can exchange data with a wide range of SCADA platforms — including Wonderware, Ignition, and Citect — as well as HMI systems from multiple vendors. Protocol mapping and data point configuration are handled through the Advant engineering toolset.

Q3: How does this module ensure network stability in high-noise industrial environments?
The ABB DSCA180B 57520001-GZ is designed to operate reliably in electrically noisy industrial environments. It features hardware-level noise filtering, watchdog timers for automatic recovery from communication faults, and supports redundant network topologies where applicable. Its deterministic communication architecture ensures consistent data delivery even under high network load conditions.

Q4: What warranty and support does ZYPLC provide with this product?
All ABB DSCA180B 57520001-GZ units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures. Each unit is pre-tested before shipment to verify full operational integrity. Our technical team provides post-sale support for installation guidance, configuration assistance, and troubleshooting throughout the warranty period.
