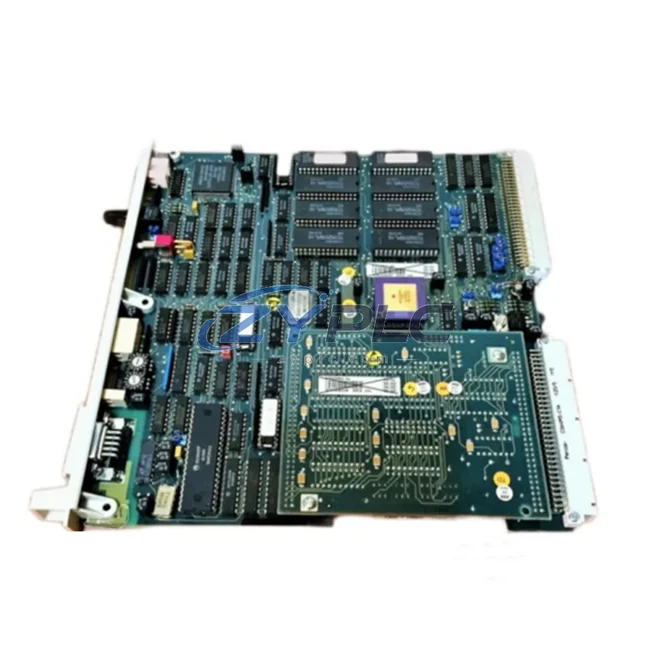

ABB DSCS140 MasterBus 300 Communication Module for AC450

ABB DSCS140 MasterBus 300 Communication Module for AC450: Compatibility and Replacement Notes

The ABB DSCS140 is a MasterBus 300 communication module engineered specifically for integration within the ABB AC450 Distributed Control System (DCS) architecture. Rather than functioning as a standalone peripheral, the DSCS140 occupies a critical position in the communication layer of a multi-tier industrial automation hierarchy — bridging the control layer, I/O subsystems, and supervisory networks into a coherent, high-availability control fabric. Its role is not merely to transmit data, but to ensure that every node in the system — from field-level sensors to SCADA workstations — operates with synchronized, low-latency signal exchange that underpins process reliability and operational continuity.

In modern industrial control architectures, communication integrity is the backbone of system performance. The DSCS140 addresses this by providing deterministic MasterBus 300 protocol communication, enabling the AC450 CPU modules — such as the DSPC110 and DSPC172 — to coordinate with distributed I/O stations, remote terminal units, and engineering workstations without signal degradation or protocol mismatch. This makes the DSCS140 an indispensable component in any AC450-based control cabinet, particularly in applications where process uptime and data fidelity are non-negotiable.

Product Specification Table

System Compatibility Notes

The DSCS140 achieves its full value when considered within the complete AC450 control system architecture. At the control layer, the module interfaces directly with ABB DSPC110 and DSPC172 CPU modules, which serve as the primary processing units responsible for executing control logic, managing scan cycles, and coordinating inter-module communication. The DSCS140 acts as the communication spine that allows these CPUs to exchange data with downstream I/O modules — including the DSDI110A digital input modules and DSDO110A digital output modules — without introducing latency or bus contention that could compromise process control accuracy.

At the I/O layer, the DSCS140 enables seamless signal aggregation from analog input modules such as the DSAI130 and DSAI155, which handle 4–20 mA process signals from field transmitters, flow meters, pressure sensors, and temperature elements. These signals are passed through the MasterBus 300 backbone managed by the DSCS140, ensuring that the CPU receives clean, time-stamped process data for closed-loop control execution. Similarly, analog output modules like the DSAO120 rely on the communication integrity provided by the DSCS140 to deliver precise control signals to final control elements such as control valves and variable frequency drives.

At the network and supervisory layer, the DSCS140 supports connectivity to ABB’s engineering and operator workstations through the MasterBus 300 topology, enabling real-time process visualization, alarm management, and historian data logging. When paired with communication gateway modules such as the DSCB110, the system can bridge MasterBus 300 segments to higher-level Ethernet-based SCADA networks, extending the reach of the AC450 architecture into plant-wide information systems without compromising the deterministic behavior of the control bus.

For power distribution within the control cabinet, the DSCS140 relies on the DSSR122 and DSSR116 power supply modules, which provide regulated DC power to the subrack backplane. Proper power architecture is essential for communication module stability — voltage fluctuations or power interruptions at the backplane level can cause bus errors or module resets that disrupt the entire control network. The DSCS140’s design accounts for this by incorporating internal filtering and bus arbitration logic that maintains communication continuity even under transient power conditions.

In redundant system configurations — common in power generation, petrochemical, and water treatment applications — the DSCS140 supports hot-standby CPU redundancy by maintaining synchronized bus communication between primary and standby DSPC modules. This ensures that in the event of a CPU failure, the standby unit can assume control without communication interruption, preserving process stability and eliminating unplanned downtime.

Industrial Application Notes

Power Generation and Utilities: In thermal power plants and hydroelectric facilities, the AC450 DCS with DSCS140 communication modules manages boiler control, turbine governor systems, and auxiliary equipment coordination. The deterministic MasterBus 300 communication ensures that critical control loops — such as steam pressure regulation and feedwater flow control — operate with the millisecond-level response times required for safe and efficient power generation. The DSCS140’s support for redundant bus topologies is particularly valuable in these environments, where a communication failure could trigger turbine trips or boiler shutdowns with significant operational and financial consequences.

Petrochemical and Refinery Process Control: In refinery distillation columns, reactor control systems, and pipeline SCADA applications, the DSCS140 enables the AC450 DCS to manage complex multi-loop control strategies involving hundreds of I/O points. The module’s ability to coordinate communication between CPU modules, analog I/O cards, and supervisory workstations makes it well-suited for continuous process environments where process variable deviations must be detected and corrected within tight tolerances. Its compatibility with hazardous area control cabinet installations — when properly configured with appropriate enclosure ratings — extends its applicability to upstream oil and gas operations.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial effluent management systems rely on the AC450 architecture for pump station control, chemical dosing automation, and filtration process management. The DSCS140 facilitates reliable communication between remote I/O stations distributed across large treatment plant footprints, enabling centralized monitoring and control from a single operator workstation. Its long-term availability and warranty terms confirmed during quotation support make it a practical choice for infrastructure projects with extended operational lifecycles and limited maintenance windows.

Mining and Metallurgical Processing: In mineral processing plants, smelters, and ore beneficiation facilities, the AC450 DCS manages conveyor systems, crusher controls, flotation cell automation, and furnace temperature regulation. The DSCS140 provides the communication reliability needed to sustain these high-throughput, continuous-operation environments, where communication interruptions can result in material spillage, equipment damage, or safety incidents. Its robust industrial design and compatibility with the AC450 subrack system make it suitable for the harsh electrical environments typical of mining and metallurgical applications.

Packaging and Discrete Manufacturing: In high-speed packaging lines and assembly automation systems, the DSCS140 supports coordinated motion and process control by maintaining fast, deterministic communication between the AC450 CPU and distributed I/O modules monitoring conveyor speeds, fill levels, seal integrity, and reject mechanisms. The module’s integration into the MasterBus 300 architecture allows engineering teams to expand I/O capacity without redesigning the communication backbone, supporting production line upgrades and capacity expansions with minimal system disruption.

Product Compatibility FAQ

Q1: Is the ABB DSCS140 compatible with both simplex and redundant AC450 CPU configurations?
Yes. The DSCS140 is designed to operate within both simplex and redundant AC450 system architectures. In redundant configurations using paired DSPC110 or DSPC172 CPU modules, the DSCS140 maintains synchronized MasterBus 300 communication between the active and standby processors, enabling bumpless transfer during CPU switchover events. This makes it suitable for high-availability applications in power generation, petrochemical processing, and water treatment, where process continuity is a primary engineering requirement. When commissioning a redundant system, engineers should verify bus termination settings and node addressing to ensure both CPU modules recognize the DSCS140 as a shared communication resource.

Q2: What are the key considerations for integrating the DSCS140 into an existing AC450 DCS during a system expansion or retrofit?
When integrating the DSCS140 into an existing AC450 architecture, the primary considerations are subrack slot availability, MasterBus 300 node address assignment, and bus loading capacity. The module must be installed in a compatible AC450 subrack with an active backplane powered by DSSR122 or DSSR116 power supply modules. Node addresses must be configured to avoid conflicts with existing DSCS140 or other communication modules on the same bus segment. For retrofit projects involving legacy AC450 systems, it is advisable to perform a full bus diagnostic using ABB’s engineering tools before adding new communication nodes, as aging bus cables or termination resistors can introduce signal integrity issues that affect the new module’s performance. Our team provides pre-shipment functional testing and configuration support to facilitate smooth integration.

Q3: What does the warranty terms confirmed during quotation cover for the DSCS140, and what support is available for long-term maintenance?
The warranty terms confirmed during quotation for the DSCS140 covers all functional defects related to MasterBus 300 communication performance, backplane interface integrity, and module hardware failures under normal operating conditions. If the module exhibits communication errors, bus arbitration failures, or hardware faults within the warranty period, a replacement or repair will be provided at no additional cost. For long-term maintenance planning, we recommend maintaining a spare DSCS140 in inventory, particularly for critical process applications where extended lead times for legacy ABB modules could impact system availability. Our technical support team is available to assist with fault diagnosis, module configuration, and compatibility verification for AC450 system expansions and upgrades throughout the module’s operational lifecycle.
