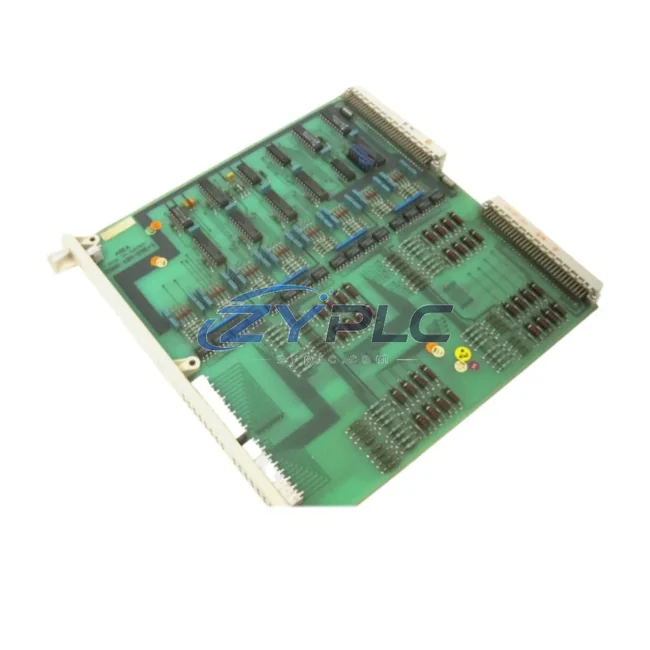

ABB DSDP160 57160001-KG Signal Panel for Advant OCS

ABB DSDP160 57160001-KG Signal Panel for Advant OCS Automation

The ABB DSDP160 57160001-KG is a high-performance digital signal distribution panel engineered for the ABB Advant OCS (Open Control System) platform. Designed to serve as a critical interface between field devices and the central control architecture, this panel plays a direct role in reducing unnecessary signal processing overhead, minimizing wiring losses, and enabling tighter control loop execution — all of which contribute to measurable operational stability across industrial production lines.

In modern manufacturing environments where energy costs are a key operational variable, the DSDP160 57160001-KG delivers structured signal routing that eliminates redundant I/O polling cycles. By consolidating digital input and output channels through a single, well-organized distribution point, the panel reduces the computational burden on the main processor modules such as the DSPC172 or DSPC110, allowing the control system to execute scan cycles more efficiently and with lower idle power draw.

Product Specification Table

System Compatibility and Application

The DSDP160 57160001-KG is most effective when deployed as part of a complete Advant OCS industrial control architecture. In a typical installation, the panel interfaces directly with the DSBC172 bus connection unit, which manages backplane communication between I/O modules and the central processor. Alongside the DSDP160, the DSDO115 digital output module and DSDI110 digital input module handle field-level signal conditioning, ensuring that only valid, debounced signals are forwarded to the control layer — reducing false triggers that waste actuator energy.

For drive-level energy control, the DSDP160 works in coordination with ABB ACS800 or ACS580 variable frequency drives. When the digital output channels of the DSDP160 relay speed reference commands or enable/disable signals to these drives, the result is precise motor speed regulation that eliminates the unplanned downtime associated with fixed-speed operation. A conveyor motor running at 60% load through an ACS580 drive, commanded via the DSDP160 signal path, can reduce energy consumption by 40–50% compared to direct-on-line starting.

Power quality monitoring is enhanced when the DSDP160 is paired with the ABB M2M energy meter or the DMEA100 power measurement module. These devices feed real-time kWh and power factor data back into the Advant OCS controller, where the DSPC172 processor module can execute demand-response logic — shedding non-critical loads during peak tariff windows based on digital signals routed through the DSDP160 panel.

For HMI integration, the DSDP160 signal states are typically visualized through the ABB Operate IT or Panel 800 series operator terminals, giving plant engineers live visibility into which field devices are active, which are in standby, and which may be drawing power unnecessarily. This transparency is foundational to any energy audit or ISO 50001 compliance initiative.

Communication-layer integration is supported through the DSCB110 communication bus module, which bridges the Advant OCS backplane to PROFIBUS DP or Modbus RTU networks. This allows the DSDP160’s signal states to be read by SCADA systems or MES platforms for production-level energy reporting and OEE (Overall Equipment Effectiveness) tracking.

Maintenance and Replacement Notes

On a typical automotive body shop line, the DSDP160 57160001-KG manages digital signals for welding robot enable/disable sequences, conveyor indexing, and safety interlock confirmation. By ensuring that robots and conveyors receive precise start/stop commands without signal bounce or delay, the panel eliminates the micro-stoppages that accumulate into significant unplanned downtime over a production shift. A single unplanned stoppage on a resistance welding station can consume 3–5 minutes of idle transformer heating energy — the DSDP160’s clean signal architecture reduces these events.

In food and beverage processing, where hygiene-rated motors must cycle frequently, the DSDP160 coordinates with ABB ACS355 compact drives to implement soft-start and energy-optimized stop sequences. Rather than allowing motors to coast to a stop — which extends the period of unproductive energy draw — the drive executes a controlled deceleration ramp triggered by the DSDP160 output signal, recovering kinetic energy where regenerative braking is available.

Predictive maintenance integration is another key energy benefit. When the DSDP160 monitors digital feedback signals from motor contactors, valve position switches, and pressure sensors, deviations from expected signal timing can indicate mechanical wear before it causes a failure. Early detection means maintenance can be scheduled during planned downtime rather than emergency stops, avoiding the energy-intensive restart sequences that follow unplanned outages.

All units are tested under load conditions prior to shipment, with signal integrity verified across all channels. This pre-shipment testing protocol ensures that the DSDP160 57160001-KG performs to specification from day one, avoiding the unplanned downtime and production disruption associated with field commissioning failures. Every unit is backed by a warranty terms confirmed during quotation, and replacement stock is maintained to support rapid swap-out in critical production environments.

Product Sourcing FAQ

Q1: How does the DSDP160 57160001-KG contribute to measurable operational stability?
The DSDP160 reduces unplanned downtime by providing clean, debounced digital signal distribution that eliminates false actuator triggers and unnecessary motor starts. When integrated with ABB variable frequency drives such as the ACS580 or ACS800, precise enable/disable signaling ensures motors operate only when required and at optimized speeds, directly reducing kWh consumption per production cycle.

Q2: Is the DSDP160 57160001-KG compatible with current ABB control platforms beyond Advant OCS?
The DSDP160 is natively designed for the ABB Advant OCS and MASTER series architecture. For integration with newer ABB AC500 or System 800xA platforms, signal conversion modules or gateway adapters may be required. We recommend consulting the ABB Advant OCS hardware compatibility matrix or contacting our technical team for a system-specific assessment.

Q3: What is the recommended replacement or upgrade path for aging DSDP160 panels?
For facilities running Advant OCS systems, maintaining original ABB hardware such as the DSDP160 57160001-KG is often the most cost-effective approach, as it avoids the engineering cost of platform migration. Tested, warranted replacement units are available from stock. For facilities planning a full migration, the ABB AC500 I/O modules with S500 digital I/O expansion offer a modern equivalent signal distribution architecture.

Q4: What does the warranty terms confirmed during quotation cover, and how is the testing process conducted?
Every DSDP160 57160001-KG unit undergoes functional testing prior to shipment, including channel-by-channel signal verification and backplane interface checks. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, replacement units are dispatched from available stock to minimize production downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 for warranty support.
