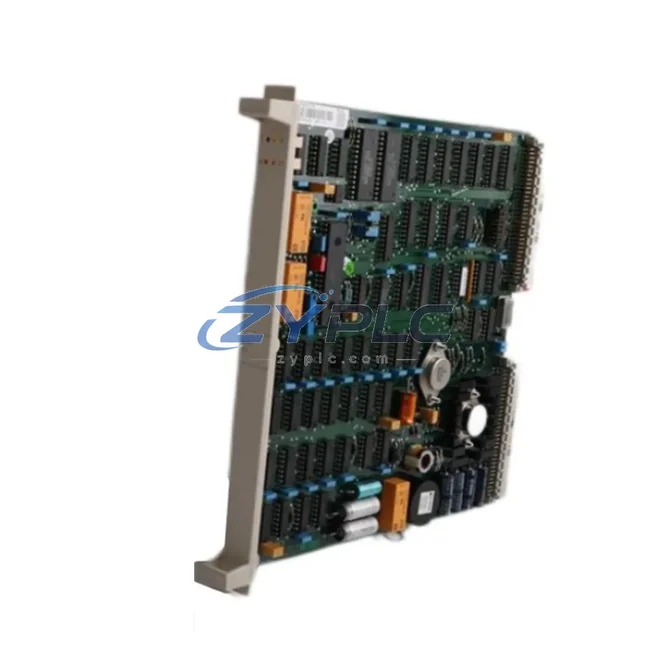

The ABB DSMB114 57360001-MG is a dedicated memory module engineered for deployment within the ABB AC 450 Master Station distributed control system. Rather than functioning as a standalone component, this module occupies a critical position within a layered automation architecture — bridging the control layer and I/O layer by ensuring that the CPU’s program data, configuration parameters, and runtime variables are reliably stored, retained, and accessible across power cycles and system events. In complex industrial environments where uptime is non-negotiable, the DSMB114 57360001-MG delivers the memory stability that underpins the entire control hierarchy.

The AC 450 platform was designed for demanding process industries, and the DSMB114 57360001-MG reflects that design philosophy. Its role in the system is not merely passive storage — it actively supports the CPU’s ability to resume operations after a fault, maintain configuration integrity during firmware updates, and preserve I/O mapping data that governs how field signals are interpreted across the control network. When paired with the DSPC110 or DSPC172 processor modules, the DSMB114 57360001-MG ensures that the master station can execute deterministic control loops without memory-related interruptions.

Product Specification Table

System Compatibility Notes

The DSMB114 57360001-MG does not operate in isolation. Its value is realized through its integration with the surrounding modules that constitute a complete AC 450 control node. At the processing layer, the module works in direct coordination with the DSPC110 central processor unit, which relies on the DSMB114’s memory capacity to store executable control programs and retain system state between scan cycles. In redundant configurations, a secondary DSPC172 processor module may be paired with a mirrored memory arrangement, ensuring that a hot-standby CPU can assume control without data loss in the event of a primary processor fault.

At the I/O layer, the DSMB114 57360001-MG supports the configuration data that maps physical field signals — sourced from DSDI110 digital input modules, DSDO110 digital output modules, and DSAI130 analog input modules — to their corresponding software variables within the control program. This mapping integrity is essential for maintaining signal fidelity across the full I/O layer, particularly in applications where hundreds of field instruments report simultaneously to the master station.

The network layer of the AC 450 architecture relies on communication modules such as the DSSB110 serial bus interface and DSCS140 communication supervisory module to relay data between the master station and remote I/O stations or supervisory SCADA systems. The DSMB114 57360001-MG supports this communication layer by ensuring that the network configuration parameters — including node addresses, baud rates, and protocol settings — are persistently stored and immediately available upon system restart.

At the power layer, the AC 450 rack is typically energized by a DSPU110 power supply unit, which delivers regulated DC power to all installed modules via the backplane. The DSMB114 57360001-MG is designed to operate within the power budget of a fully populated AC 450 rack, and its low power consumption profile contributes to overall rack thermal stability. For human-machine interface integration, operator stations running ABB’s Master View 850 or compatible HMI platforms communicate with the AC 450 master station through the supervisory network, with the DSMB114 ensuring that display variable mappings and alarm configurations are retained without manual re-entry after a system restart.

In execution layer applications, the DSMB114 57360001-MG supports the control programs that govern variable-speed drives, motorized valve actuators, and relay output modules. By maintaining the integrity of the control program in non-volatile memory, the module ensures that the execution layer responds correctly to process conditions even after an unplanned power interruption — a critical requirement in continuous process industries.

Industrial Application Notes

The ABB DSMB114 57360001-MG has been deployed across a wide range of industrial sectors where the AC 450 platform established itself as a reliable distributed control backbone. In power generation facilities, the module supports turbine control and boiler management systems where memory integrity directly affects plant safety and regulatory compliance. A loss of control program data in such environments can result in unplanned shutdowns, making the DSMB114’s reliable storage function a critical element of plant availability strategy.

In petrochemical and refinery applications, the AC 450 master station equipped with the DSMB114 57360001-MG manages complex process loops involving temperature, pressure, flow, and level control. The module’s ability to retain calibration data and PID tuning parameters across power cycles reduces the engineering effort required during plant restarts and minimizes the risk of process upsets caused by incorrect parameter initialization.

Water treatment and wastewater management facilities benefit from the DSMB114’s role in maintaining the control logic that governs pump sequencing, chemical dosing, and filtration cycles. In these applications, the AC 450 system may operate for extended periods without operator intervention, making memory reliability a prerequisite for autonomous operation. Mining and mineral processing operations similarly rely on the DSMB114 to preserve the control programs that manage conveyor systems, crusher controls, and flotation cell automation — environments characterized by high vibration, dust, and temperature variation that place additional demands on module durability.

In metallurgical plants and steel mills, the AC 450 architecture with DSMB114 memory support manages rolling mill controls, furnace temperature regulation, and cooling system sequencing. Packaging and material handling lines in consumer goods manufacturing also utilize the AC 450 platform, where the DSMB114 ensures that recipe data, product changeover parameters, and line speed settings are retained between production runs — reducing changeover time and improving overall equipment effectiveness.

Product Compatibility FAQ

Q1: Is the DSMB114 57360001-MG compatible with all AC 450 rack configurations, and can it be installed alongside redundant processor modules?
The DSMB114 57360001-MG is designed for use within the ABB AC 450 Master Station rack and is compatible with the standard AC 450 backplane architecture. It can be installed in systems utilizing both single and redundant processor configurations, including setups with DSPC110 and DSPC172 processor modules. In redundant architectures, memory modules are typically paired with each processor to ensure that both the primary and standby CPUs maintain synchronized program data. Before installation, engineers should verify the specific rack slot assignments defined in the AC 450 system documentation to ensure correct module positioning and backplane connectivity.

Q2: What happens to stored program data if the DSMB114 57360001-MG is replaced during live system maintenance, and how is data restoration managed?
When replacing the DSMB114 57360001-MG in a live AC 450 system, the control program and configuration data stored on the module will need to be reloaded from the engineering workstation or from a backup memory source. ABB’s AC 450 system architecture supports program download procedures through the Master Station programming interface, allowing engineers to restore the full control program, I/O configuration, and network parameters following a module replacement. It is recommended practice to maintain a current backup of the control program on the engineering workstation and to perform module replacements during planned maintenance windows to minimize process disruption. The warranty terms confirmed during quotation covering the DSMB114 57360001-MG ensures that any module failures within the warranty period are addressed without additional cost to the end user.

Q3: How does the warranty terms confirmed during quotation apply to the DSMB114 57360001-MG, and what support is available for long-term maintenance planning?
Every DSMB114 57360001-MG supplied by ZYPLC is covered by a warranty terms confirmed during quotation from the date of shipment, encompassing functional testing, verified compatibility with the AC 450 architecture, and assurance against manufacturing defects. For long-term maintenance planning, ZYPLC maintains inventory of AC 450 series modules to support customers managing aging DCS infrastructure. Engineers responsible for legacy AC 450 systems are encouraged to establish a spare parts inventory strategy that includes critical memory and processor modules, reducing the risk of extended downtime caused by obsolete component unavailability. ZYPLC’s technical team is available to assist with system architecture reviews, spare parts planning, and module compatibility verification for AC 450 installations.
