ABB DSMB127 57360001-HG Industrial Network Interface for DSMC Systems

ABB DSMB127 57360001-HG Industrial Network Interface for DSMC Systems: Bridging the Industrial Data Link

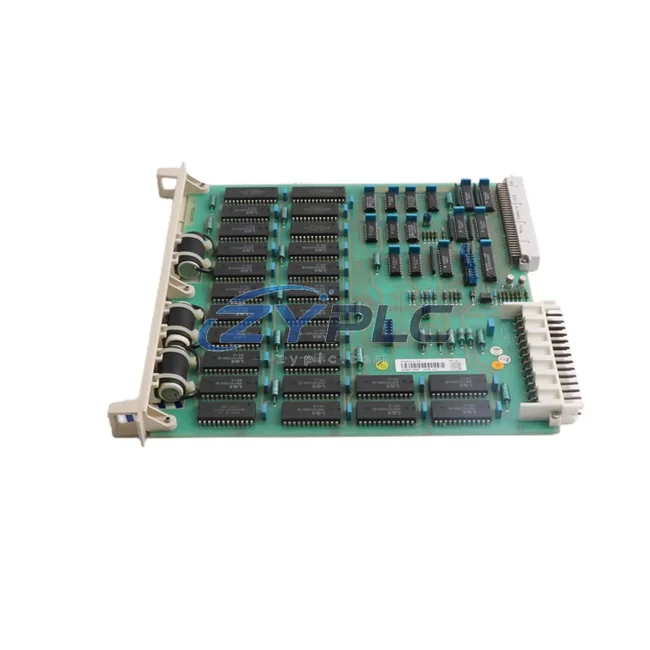

The ABB DSMB127 57360001-HG is a high-reliability 64KB memory board engineered for ABB’s DSMC Distributed Control System architecture. Designed to serve as a critical node in the industrial data chain, this module enables seamless data exchange between field-level devices and supervisory control layers — from signal acquisition at the sensor level all the way through to SCADA dashboards and enterprise MES platforms. In smart factory environments where data latency, protocol consistency, and network uptime are non-negotiable, the DSMB127 delivers the backbone connectivity that keeps production lines transparent and responsive.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the ABB DSMB127 57360001-HG operates at the heart of the control network, managing memory allocation and data routing within the DSMC rack system. The data journey begins at the field level: temperature transmitters, pressure sensors, and flow meters feed analog and digital signals into ABB DSAI 130 analog input modules and DSDI 110 digital input boards. These signals are conditioned and passed through the DSMC backplane, where the DSMB127 memory board buffers and routes process values to the CPU module — typically an ABB DSPC 172 or DSPC 110 processor card — for real-time execution of control logic.

Once processed, control outputs are dispatched through ABB DSAO 120 analog output modules to drive actuators, control valves, and variable frequency drives (VFDs) on the plant floor. For facilities running mixed-protocol environments, the DSMC system integrates with ABB DSMB 01 communication boards and CI520 PROFIBUS gateway modules, enabling the DSMB127-equipped rack to exchange data with third-party PLCs, remote I/O stations, and Modbus-based field instruments without protocol barriers.

At the supervisory layer, the DSMC network connects to ABB Advant Station 500 HMI workstations and third-party SCADA platforms via OPC-DA or OPC-UA server bridges. Operators gain real-time visibility into process variables, alarm states, and trend data — all sourced from the memory buffers managed by the DSMB127. For facilities expanding toward IIoT architectures, edge gateway devices can tap into the DSMC data stream, forwarding aggregated process data to cloud-based analytics platforms for predictive maintenance and OEE monitoring. The DSMB127 thus functions not merely as a memory board, but as a critical data relay node that sustains the entire industrial communication chain.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — where field devices, control systems, and supervisory platforms operate in silos, unable to share process information efficiently. The ABB DSMB127 57360001-HG directly addresses this by providing reliable memory and communication infrastructure within the DSMC rack, ensuring that data collected from hundreds of field instruments is consistently available to both local control logic and remote monitoring systems.

In plants where multiple generations of ABB control hardware coexist — from early MOD 300 systems to newer Advant OCS installations — the DSMB127 serves as a compatibility bridge, maintaining data continuity across protocol generations. Its 64KB memory architecture supports high-frequency data polling cycles, reducing the risk of data loss during peak production loads. For facilities pursuing production line transparency, the DSMB127 enables the DSMC system to feed real-time KPIs — cycle times, yield rates, energy consumption — directly to SCADA dashboards, eliminating the manual data collection that slows down root-cause analysis and shift reporting.

Remote diagnostics capabilities are equally enhanced: maintenance engineers can interrogate the DSMC rack remotely via the HMI or SCADA gateway, reading memory status, communication error logs, and module health indicators without physical access to the control cabinet. This capability is especially valuable in hazardous or hard-to-reach plant areas. System expansion is also simplified — adding new I/O modules or communication gateways to the DSMC rack requires only configuration updates, with the DSMB127 providing the memory headroom to accommodate expanded tag databases and communication maps. Every unit shipped from ZYPLC undergoes pre-shipment functional testing to verify memory integrity and backplane communication, backed by a warranty terms confirmed during quotation and availability confirmed by RFQ availability for rapid deployment.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSMB127 57360001-HG support in a DSMC DCS environment?
The DSMB127 operates within the ABB DSMC backplane architecture, which natively supports ABB Masterbus 300 for inter-module communication. When paired with ABB CI520 PROFIBUS gateway modules or DSMB 01 communication boards, the system extends compatibility to PROFIBUS DP and Modbus RTU networks, enabling integration with third-party PLCs, remote I/O, and field instruments across mixed-protocol plant environments.

Q2: How does the DSMB127 contribute to network stability and low-latency data transmission in real-time control applications?
The 64KB memory buffer on the DSMB127 ensures that process data from field devices is continuously available to the DSMC CPU without communication bottlenecks. By maintaining a stable local data store within the rack, the module reduces polling latency and prevents data gaps during high-load control cycles — critical for applications such as PID loop control, alarm management, and real-time SCADA data feeds.

Q3: Can the ABB DSMB127 be integrated into existing SCADA and HMI systems without major infrastructure changes?
Yes. The DSMC system, with the DSMB127 as its memory backbone, connects to SCADA platforms and HMI workstations via OPC server interfaces or dedicated ABB communication gateways. This allows existing Advant Station 500 HMIs and third-party SCADA software to access live process data from the DSMC rack with minimal reconfiguration, preserving the existing network architecture while expanding data visibility.

Q4: What quality assurance and warranty coverage does ZYPLC provide for the ABB DSMB127 57360001-HG?
Every ABB DSMB127 57360001-HG unit supplied by ZYPLC undergoes pre-shipment functional testing, including memory read/write verification and backplane communication checks. All units are covered by a warranty terms confirmed during quotation against manufacturing defects and communication failures. Availability is confirmed via RFQ for shipment arranged after confirmation via DHL or FedEx with full tracking, supporting urgent maintenance and production continuity requirements globally.
