ABB DSMB170 Industrial Network Interface for DSQC Drive Systems

ABB DSMB170 Industrial Network Interface: Bridging Drive Systems and Smart Factory Data Links

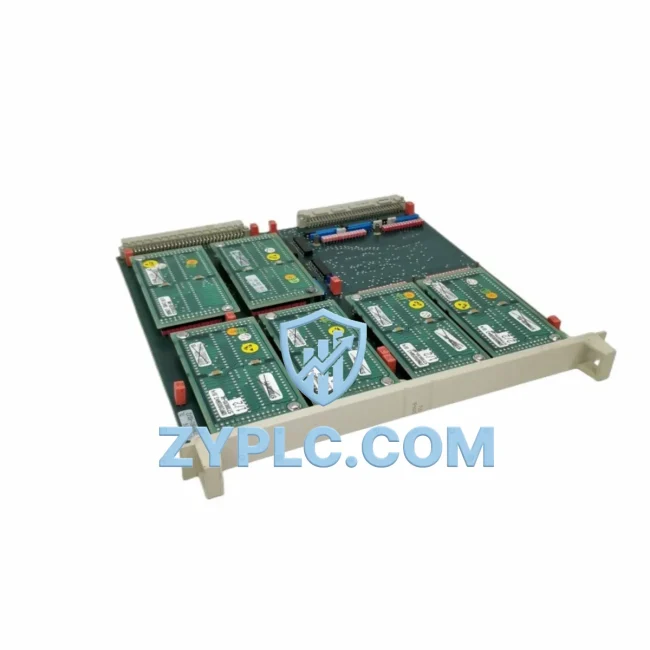

The ABB DSMB170 Servo Memory Board is a precision-engineered industrial communication and memory interface module designed for ABB’s DSQC-series drive and motion control platforms. In modern smart factory environments, where real-time data integrity between field devices and upper-level control systems is non-negotiable, the DSMB170 plays a critical role in sustaining the uninterrupted data flow that connects servo drives, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and edge gateways into a single, coherent automation network.

As industrial sites evolve toward fully digitized production lines, the demand for reliable servo memory and drive communication boards has intensified. The DSMB170 addresses this demand by providing stable onboard memory management for ABB drive systems, ensuring that parameter sets, motion profiles, and communication configurations are retained and accurately executed across power cycles, network interruptions, and system reconfigurations. This capability is foundational to maintaining consistent machine behavior in high-throughput manufacturing, robotic assembly, and process automation environments.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB DSMB170 sits at the heart of the drive communication chain. Signal acquisition begins at the sensor and actuator layer — where encoders, proximity sensors, and torque transducers feed real-time positional and load data into the servo drive. The DSMB170 ensures that the drive’s onboard memory accurately retains the tuned motion parameters, so that when the ABB DSQC508 robot controller issues a motion command via the IRC5 backplane, the drive responds with the exact pre-configured velocity and torque profile — without re-initialization delays.

Upstream, the ABB AC500 PLC communicates with the drive system over PROFIBUS-DP, coordinating multi-axis motion sequences across the production line. The DSMB170’s stable memory architecture prevents parameter drift during network resets, which is a common failure point in high-cycle robotic welding and pick-and-place applications. Alongside the PLC, an ABB CP600 HMI panel provides operators with real-time drive status visualization — displaying speed, torque, fault codes, and communication health — all of which depend on the memory board maintaining accurate state data.

For remote I/O expansion, the system integrates ABB S900 remote I/O modules over PROFIBUS, extending digital and analog signal reach to distributed field devices without adding latency to the control loop. At the network layer, an ABB Ethernet/IP communication adapter bridges the drive system to the plant’s Ethernet backbone, enabling SCADA platforms such as ABB System 800xA or third-party Wonderware and Ignition SCADA systems to poll drive data at configurable intervals. This integration supports real-time production monitoring, OEE calculation, and predictive maintenance dashboards.

Edge intelligence is further enhanced when the DSMB170-equipped drive system connects to an ABB Edge Controller or compatible industrial edge gateway, which preprocesses drive telemetry locally before forwarding aggregated data to cloud-based MES or ERP platforms. Variable frequency drives such as the ABB ACS880 series, operating in parallel with the servo system, also benefit from the same PROFIBUS network infrastructure, with their operational data — energy consumption, harmonic distortion, thermal load — feeding into the same SCADA data pipeline. Industrial power supplies from the ABB CP-E series provide the stable 24VDC rail that powers the communication modules, remote I/O, and HMI devices throughout the control cabinet, ensuring that network uptime is not compromised by power quality issues.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and transitional industrial environments is protocol fragmentation — where servo drives, PLCs, remote I/O, and SCADA systems speak different communication languages, creating data silos that prevent unified production visibility. The ABB DSMB170 directly addresses this by providing a stable, protocol-agnostic memory foundation within the drive system, allowing the host drive platform to interface with PROFIBUS-DP, DeviceNet, and CANopen networks without losing configuration integrity during protocol switching or network topology changes.

Remote monitoring is another critical pain point. Without reliable onboard memory, drive systems lose their tuned parameters after a power cycle or firmware update, requiring manual re-commissioning — a process that can take hours and halt production. The DSMB170 eliminates this risk by persistently storing all drive parameters, communication settings, and motion profiles, enabling remote diagnostics and parameter restoration via the SCADA or DCS layer without requiring on-site engineering intervention.

Production line transparency — the ability to trace every motion event, fault condition, and communication anomaly back to a specific drive and time stamp — is made possible when the DSMB170 ensures that the drive’s internal state is always accurately reflected in the data it reports to the HMI and SCADA. This supports root-cause analysis, reduces mean time to repair (MTTR), and enables condition-based maintenance scheduling. For system integrators expanding existing automation infrastructure, the DSMB170’s compatibility with the ABB DSQC and IRC5 ecosystem means that new drive axes can be added to the network without redesigning the communication architecture — a significant advantage in phased factory digitization projects.

Industrial Connectivity FAQ

Q1: Does the ABB DSMB170 support real-time communication with SCADA systems?
A: Yes. When installed in an ABB drive system connected to a PROFIBUS-DP or Ethernet/IP network, the DSMB170 ensures that the drive’s parameter and status data is consistently available for polling by SCADA platforms such as ABB System 800xA, Ignition, or Wonderware. The memory board’s role is to maintain data integrity at the drive level, so that SCADA reads are always accurate and up to date.

Q2: Is the DSMB170 compatible with ABB IRC5 robot controllers and ACS drive platforms?
A: The DSMB170 is designed for ABB’s DSQC-series drive and motion control ecosystem, which includes compatibility with IRC5 robot controllers and select ACS-series drive platforms. For specific compatibility confirmation with your system configuration, please contact our technical team at plc.sales@zyplc.com.

Q3: What warranty and testing standards apply to the DSMB170 supplied by ZYPLC?
A: All DSMB170 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional verification to confirm communication interface integrity and memory read/write performance. Units are shipped via DHL or FedEx with full tracking and export documentation.

Q4: Can the DSMB170 be used to expand an existing ABB drive network without reconfiguring the entire system?
A: Yes. The DSMB170’s onboard memory architecture is designed to retain all drive parameters independently, meaning that adding a new drive axis equipped with a DSMB170 to an existing PROFIBUS or DeviceNet network does not require reconfiguration of the existing nodes. This makes it well-suited for phased automation expansion projects where minimizing downtime and re-engineering effort is a priority.
