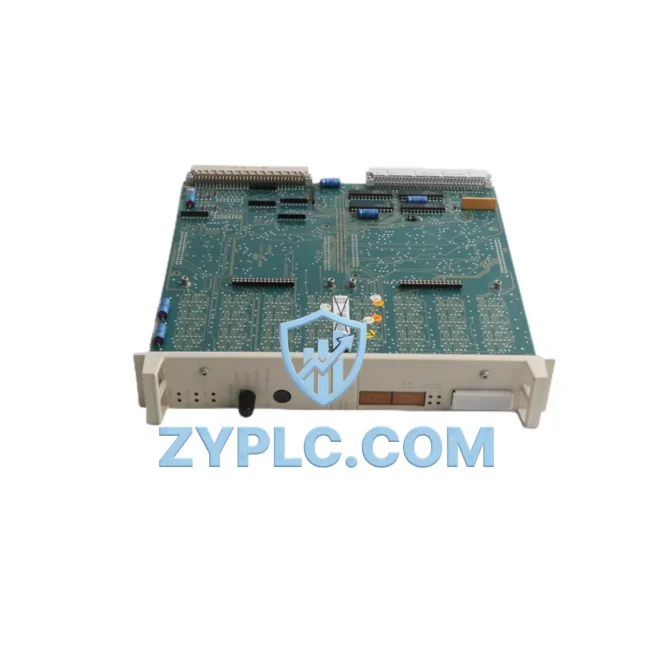

ABB DSPC172H Master CPU for DSPC Series

ABB DSPC172H Master CPU for DSPC Series

The ABB DSPC172H is a master CPU module purpose-built for deployment within ABB’s DSPC-series distributed control architecture. Rather than functioning as a standalone processor, the DSPC172H is engineered to serve as the central coordination node across a multi-layer automation hierarchy — managing signal acquisition, logic execution, inter-module communication, and supervisory data exchange simultaneously. In modern industrial environments where system uptime, deterministic response, and long-term maintainability are non-negotiable, the DSPC172H delivers the architectural consistency that engineers and plant operators depend on.

Understanding the DSPC172H requires viewing it within the full control system stack. At the control layer, this CPU module interfaces directly with I/O expansion modules such as the DSDI110A and DSDO110A for digital signal handling, and the DSAI130A for analog input acquisition. These modules feed real-time process data upward to the DSPC172H, which executes the configured control logic and issues output commands with deterministic cycle timing. The integrity of this signal flow is fundamental to process stability in applications ranging from continuous chemical dosing to high-speed packaging line control.

At the network and communication layer, the DSPC172H supports integration with ABB’s proprietary INSUM and MODULEBUS communication protocols, enabling seamless data exchange with supervisory systems, SCADA platforms, and engineering workstations. When paired with communication gateway modules such as the DSMB127 or DSCS140, the CPU can bridge legacy fieldbus architectures with modern Ethernet-based supervisory networks — preserving existing infrastructure investment while enabling incremental modernization. This system integration capability is a defining strength of the DSPC172H in brownfield upgrade projects.

Power supply architecture is equally critical to system reliability. The DSPC172H is designed to operate within rack assemblies powered by ABB DSPS modules, which provide regulated DC supply with built-in redundancy support. In high-availability installations, dual power supply configurations ensure that a single PSU failure does not interrupt CPU operation. The backplane and rack assembly — typically the DSPC150 or compatible chassis — provides the physical and electrical backbone that connects the CPU to its associated I/O and communication modules, maintaining signal integrity across the full module complement.

Redundancy design is a key consideration for any critical process application. The DSPC172H supports hot-standby CPU redundancy configurations when paired with a secondary DSPC172H unit and the appropriate redundancy synchronization hardware. In this arrangement, the standby CPU continuously mirrors the active CPU’s memory state, enabling bumpless switchover in the event of a primary CPU fault. This architecture is widely adopted in power generation, oil and gas processing, and water treatment facilities where unplanned downtime carries significant operational and safety consequences.

At the human-machine interface layer, the DSPC172H communicates with operator panels and HMI terminals — including ABB Panel 800 series displays and third-party SCADA clients — via standardized OPC-DA or proprietary data server interfaces. This enables operators to monitor real-time process variables, acknowledge alarms, and adjust setpoints without interrupting the underlying control execution. The separation of HMI communication from core I/O processing ensures that operator interface activity does not introduce latency into the control loop.

From an engineering and commissioning perspective, the DSPC172H is configured using ABB’s Control Builder engineering environment, which provides structured function block programming, online diagnostics, and firmware management tools. During system commissioning, engineers can perform live variable monitoring, force I/O states for loop testing, and validate redundancy switchover behavior — all without taking the system offline. This capability significantly reduces commissioning time on complex multi-loop installations.

Long-term maintenance efficiency is another area where the DSPC172H architecture excels. The module’s standardized form factor and connector interface allow field replacement without specialized tooling, and ABB’s diagnostic firmware provides detailed fault logging that simplifies root-cause analysis. Maintaining a spare DSPC172H in inventory — alongside associated modules such as the DSAI130A, DSDO110A, and DSMB127 — is a widely recommended practice for plants operating on extended maintenance intervals. ZYPLC maintains verified stock of the DSPC172H and compatible DSPC-series components, with all units subject to functional testing prior to dispatch.

Every DSPC172H supplied by ZYPLC is covered by a 12-Month Warranty, providing assurance of module integrity and operational performance from the date of delivery. Our technical team is available to support system architecture consultation, compatibility verification, and post-installation troubleshooting.

Product Specification Table

System Compatibility Notes

The DSPC172H achieves its full architectural value when deployed as part of a coordinated module ecosystem. In a typical DSPC-series control cabinet, the CPU module occupies the primary slot of the DSPC150 backplane, with adjacent slots populated by digital I/O modules including the DSDI110A (digital input) and DSDO110A (digital output), and analog modules such as the DSAI130A for 4–20mA process signal acquisition. Communication with field devices and supervisory networks is handled through gateway modules including the DSMB127 MODULEBUS interface and the DSCS140 serial communication module.

For installations requiring expanded I/O capacity, the DSPC172H supports multi-rack configurations via rack extension interfaces, allowing additional I/O modules to be added without replacing the CPU. Power distribution across the rack is managed by ABB DSPS power supply modules, with dual-PSU configurations providing N+1 redundancy at the power layer. Terminal modules and marshalling panels — including ABB DSTD series terminal boards — provide the physical wiring interface between field instrumentation and the I/O module backplane, ensuring organized and maintainable field wiring layouts.

In redundant CPU configurations, a secondary DSPC172H operates in hot-standby mode, continuously synchronized with the primary unit. Switchover is automatic and bumpless, with no interruption to the control output state. This architecture is standard practice in critical process industries and is fully supported within the DSPC-series platform.

Industrial Application Notes

The DSPC172H is deployed across a broad range of industrial sectors where process reliability and system longevity are primary engineering requirements. In power generation facilities, the module manages turbine control logic, excitation system coordination, and grid synchronization sequences — applications where deterministic CPU response and redundancy are mandatory. In oil and gas processing plants, the DSPC172H controls separator vessel pressure regulation, pump sequencing, and emergency shutdown logic within SIL-rated control architectures.

Water and wastewater treatment facilities rely on the DSPC172H for dosing pump control, filtration cycle management, and SCADA data reporting — environments characterized by continuous 24/7 operation and strict regulatory compliance requirements. In metallurgical and mining applications, the module coordinates conveyor drive sequencing, crusher load management, and process interlocking across distributed control zones. Packaging and discrete manufacturing lines use the DSPC172H for high-speed I/O coordination, recipe management, and production data logging integrated with MES platforms.

Across all these applications, the DSPC172H’s combination of proven architecture, broad I/O compatibility, redundancy support, and long-term spare parts availability makes it a preferred choice for both new installations and brownfield system upgrades.

Product Compatibility FAQ

Q1: Is the DSPC172H compatible with both legacy DSPC-series racks and newer ABB control platforms?
The DSPC172H is designed for the ABB DSPC-series rack architecture and is compatible with DSPC150-series backplanes and associated I/O modules. For integration with newer ABB System 800xA or AC800M platforms, communication gateway modules such as the DSCS140 or third-party protocol converters are typically used to bridge the two architectures. ZYPLC’s technical team can advise on specific compatibility requirements for your installation.

Q2: Can the DSPC172H be installed and commissioned without taking the existing control system offline?
In redundant CPU configurations, the DSPC172H supports online replacement of the standby unit without interrupting the active control process. For single-CPU installations, a planned maintenance window is required for module replacement. ABB Control Builder’s online diagnostic and variable monitoring tools allow pre-commissioning verification and loop testing to be completed efficiently, minimizing total downtime during changeover.

Q3: What does the 12-Month Warranty cover, and what support is available after installation?
Every DSPC172H supplied by ZYPLC carries a 12-Month Warranty covering manufacturing defects and functional performance from the date of delivery. All units are functionally tested prior to dispatch. Post-installation support includes technical consultation on system architecture, compatibility verification for associated modules, and assistance with fault diagnosis. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for warranty claims or technical inquiries.
