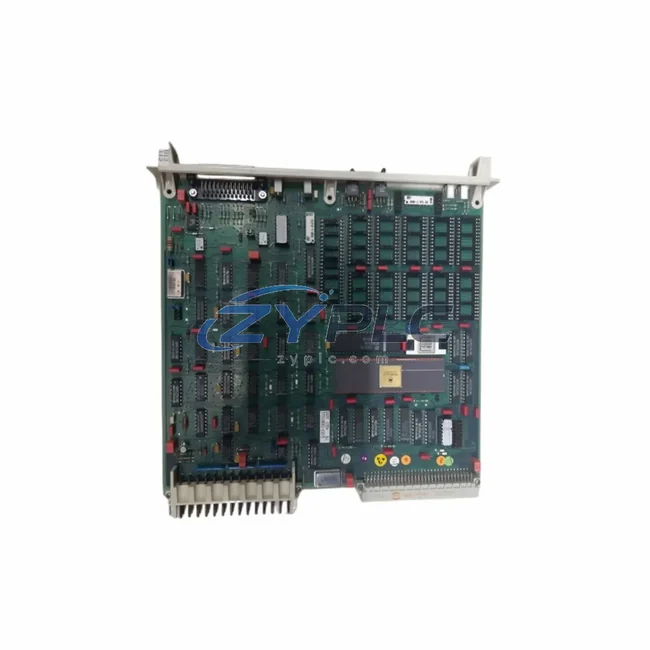

ABB DSPC173 57310001-MT Repeater for AC 800M

ABB DSPC173 57310001-MT Repeater for AC 800M: Compatibility and Replacement Notes

The ABB DSPC173 57310001-MT is a dedicated repeater module engineered for deployment within the ABB AC 800M distributed control system platform. Rather than functioning as a standalone component, this module occupies a critical position within the communication backbone of a layered automation architecture — extending, conditioning, and stabilizing signal transmission between controller nodes, remote I/O stations, and field-level devices across large-scale industrial installations. Its role is not merely signal repetition; it is the preservation of system coherence across physical distances and electrical environments that would otherwise degrade communication integrity.

In modern industrial control architectures, the reliability of data exchange between the control layer and the I/O layer is foundational to safe and efficient operation. The DSPC173 57310001-MT addresses this requirement by providing transparent, low-latency signal regeneration that maintains the timing and data integrity demanded by the AC 800M controller — including the PM866, PM864A, and PM891 processor modules — when communicating with distributed I/O clusters, remote cabinets, or redundant controller pairs separated by significant cable runs.

Product Specification Table

System Compatibility Notes

The DSPC173 57310001-MT does not operate in isolation. Its value is realized only when understood within the full context of an AC 800M control system architecture. At the control layer, the PM866 or PM864A processor module serves as the central execution engine, running control applications and managing I/O communication cycles. The DSPC173 extends the reach of this controller’s communication bus, enabling remote I/O clusters — such as those built around the S800 I/O family including AI810, AO810, DI810, and DO810 modules — to remain within the controller’s scan cycle without signal degradation.

At the network layer, the TB840A or TB842 Modulebus Modem modules coordinate the physical communication between the controller and remote I/O stations. The DSPC173 57310001-MT works in concert with these modems to maintain signal quality across extended cable distances, particularly in large process plants where control cabinets may be separated by tens or hundreds of meters. This is especially relevant in applications where the CI854A PROFIBUS DP communication interface module is used to bridge the AC 800M platform with field devices operating on the PROFIBUS protocol.

For redundant system architectures — common in power generation, oil and gas, and chemical processing — the DSPC173 supports the communication continuity required when paired with redundant PM866 controller pairs and the associated redundancy supervisory hardware. The SD821 and SD822 power supply modules provide the stable 24 VDC foundation that the entire communication infrastructure, including the repeater, depends upon. In cabinet-level design, the DSPC173 is typically mounted alongside the TP830 or TP854 termination panels, ensuring clean signal routing from the controller backplane to the field terminal blocks.

At the human-machine interface layer, operator stations running ABB’s 800xA System or connected via OPC DA/UA gateways rely on the uninterrupted data flow that the DSPC173 helps sustain. Any communication interruption at the repeater level would manifest as I/O timeouts, controller alarms, or process data gaps at the HMI — making the reliability of this module directly visible to plant operators. The DSPC173 57310001-MT therefore functions as a silent but essential contributor to overall system uptime and operator confidence.

Industrial Application Notes

The DSPC173 57310001-MT finds application across a broad range of process and discrete manufacturing industries where the AC 800M platform is the control standard of choice.

In power generation and electrical utilities, AC 800M systems manage turbine control, excitation systems, and grid synchronization. The DSPC173 enables communication between the main control room and remote I/O panels located at generator terminals or switchgear rooms, maintaining the millisecond-level response times required for protection and control functions.

In oil and gas processing and petrochemical plants, distributed control systems must span large physical areas — from wellhead instrumentation to central control rooms. The DSPC173 supports the extended Modulebus topologies required in these environments, ensuring that flow, pressure, and temperature signals from remote field panels reach the AC 800M controller without latency or data corruption.

In water and wastewater treatment facilities, where pump stations and treatment stages may be geographically dispersed, the DSPC173 allows a single AC 800M controller to supervise multiple remote I/O nodes without requiring additional controller hardware, reducing system cost and simplifying maintenance.

In mining and metallurgical operations, the harsh electrical environment — characterized by high-voltage switching transients, variable frequency drive interference, and long cable runs — makes signal integrity a persistent challenge. The DSPC173’s repeater function provides the electrical isolation and signal regeneration needed to maintain reliable communication in these demanding conditions.

In packaging and material handling lines, where high-speed discrete I/O is combined with analog process control, the DSPC173 supports the mixed I/O architectures typical of these applications, ensuring that both digital and analog signals are transmitted with equal fidelity across the system bus.

Product Compatibility FAQ

Q1: Is the DSPC173 57310001-MT compatible with both redundant and non-redundant AC 800M controller configurations?
Yes. The DSPC173 57310001-MT is designed to operate within standard single-controller AC 800M architectures as well as fully redundant controller pair configurations. In redundant setups, the module supports the communication continuity requirements of both the primary and standby controller paths, ensuring that switchover events do not result in communication loss to remote I/O stations. Compatibility should be verified against the specific firmware version of the PM866 or PM864A controller in use, and ZYPLC’s technical team can assist with version confirmation prior to order.

Q2: What is the maximum cable extension achievable with the DSPC173, and are there installation constraints for cabinet integration?
The DSPC173 57310001-MT is designed to extend Modulebus communication links beyond the standard distance limitations of direct controller-to-I/O connections. Exact extension distances depend on cable type, shielding quality, and the electrical environment of the installation. For cabinet integration, the module is compatible with standard DIN rail mounting within IEC-rated control enclosures and should be installed with attention to cable routing, grounding practices, and separation from high-voltage conductors. ZYPLC recommends consulting the ABB AC 800M Hardware Configuration manual for detailed installation guidelines specific to your system topology.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for system commissioning?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects and functional failures under normal operating conditions for a period of twelve months from the date of shipment. This includes free replacement or repair of confirmed defective units. The warranty does not cover damage resulting from incorrect installation, electrical overstress, or unauthorized modification. For system commissioning support, ZYPLC’s engineering team is available to assist with architecture compatibility verification, configuration guidance, and pre-shipment functional testing upon request. Contact us at plc.sales@zyplc.com or +86 19859288691 for pre-sales technical consultation.
