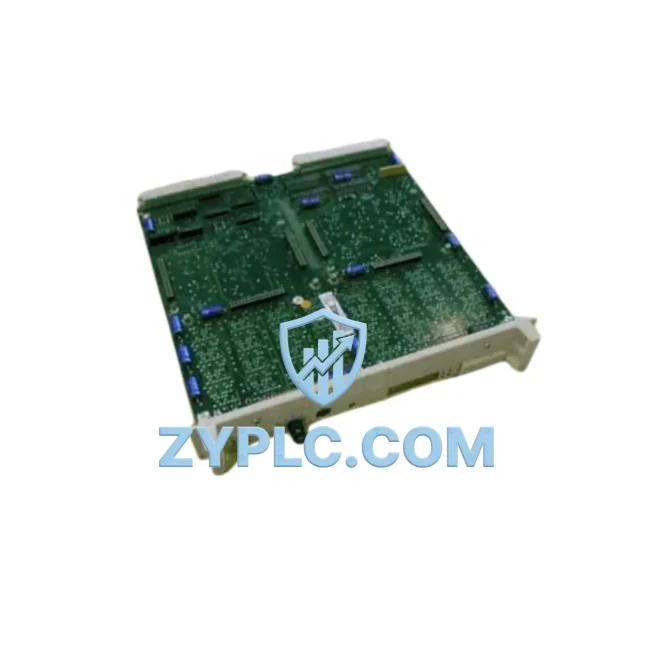

ABB DSPC174 3BSE005461R1 Industrial Network Interface for AC800M Systems

ABB DSPC174 3BSE005461R1 Industrial Network Interface for AC800M Systems: Anchoring the Industrial Data Link

The ABB DSPC174 3BSE005461R1 is a high-performance Profibus DP processor and gateway board engineered specifically for the ABB AC800M controller platform — one of the most widely deployed process automation architectures in global industry. As the critical communication bridge between field-level instrumentation and supervisory control systems, the DSPC174 3BSE005461R1 enables seamless, deterministic data exchange across complex industrial network topologies. Whether deployed in oil & gas, power generation, chemical processing, water treatment, or discrete manufacturing, this module delivers the protocol conversion, network stability, and real-time data throughput that modern smart factories demand.

In today’s industrial environment, the ability to move data reliably from sensors and actuators through PLCs, remote I/O, HMI panels, and SCADA platforms is the backbone of operational transparency. The DSPC174 3BSE005461R1 fulfills this role within the AC800M ecosystem by providing a robust Profibus DP interface that connects field instrumentation directly to the controller’s internal process data highway — eliminating communication bottlenecks and reducing scan cycle latency to single-digit milliseconds.

Network Communication Table

Connected Automation Data Flow

The DSPC174 3BSE005461R1 sits at the heart of a layered industrial communication architecture, orchestrating data flow from the lowest field device up to enterprise-level systems. At the field level, Profibus DP-connected devices — including ABB ACS880 variable frequency drives, distributed ABB S800 I/O remote I/O modules, HART-to-Profibus field converters, and intelligent valve positioners — transmit process variables, status signals, and diagnostic data upward through the Profibus segment. The DSPC174 acts as the Profibus DP master, cyclically polling these field nodes and delivering structured process data into the AC800M controller’s internal data bus with deterministic timing.

Within the AC800M rack, the DSPC174 3BSE005461R1 works in concert with companion modules such as the ABB PM866 processor module and the ABB CI854 PROFIBUS DP communication interface to execute control logic and route aggregated data to higher-level systems. The controller’s Ethernet backbone — often implemented via ABB CI873 PROFINET interface modules — carries this data to plant-level ABB System 800xA SCADA/DCS platforms, where operators monitor process trends, configure alarm thresholds, and issue setpoint commands in real time.

For facilities running mixed-protocol environments, the DSPC174 enables transparent data bridging between legacy Profibus field devices and modern Ethernet-based supervisory networks. Industrial managed switches — such as those from the Hirschmann RS20 or Moxa EDS series commonly deployed alongside ABB systems — provide the Layer 2 network infrastructure that carries this data reliably across plant floors. At the network edge, ABB Edge Connectivity Server (ECS) or third-party industrial edge gateways aggregate controller data for cloud analytics, predictive maintenance dashboards, and MES/ERP integration, completing the data chain from sensor to enterprise.

HMI panels — including ABB CP600 series operator panels — connect to the AC800M via Modbus TCP or OPC UA, pulling live process values that the DSPC174 has already collected from the Profibus field segment. This end-to-end data flow — from field sensor through Profibus gateway, controller, Ethernet switch, SCADA, and HMI — represents the complete industrial data link that the DSPC174 3BSE005461R1 anchors in every deployment.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in brownfield industrial facilities is protocol fragmentation. Legacy Profibus devices, newer PROFINET instruments, Modbus RTU sensors, and Ethernet-based controllers often coexist in the same plant without a unified communication layer — creating data silos that prevent operators from achieving full production line visibility and real-time decision-making capability.

The ABB DSPC174 3BSE005461R1 directly addresses this challenge. By serving as the Profibus DP master within the AC800M platform, it consolidates data from dozens of field nodes into a single, structured process image that the controller can act upon and forward to SCADA systems. This eliminates the need for separate protocol converters or middleware gateways, reducing network complexity and potential failure points while lowering total cost of ownership.

Remote monitoring and diagnostics are equally critical in modern smart factory deployments. The DSPC174 supports Profibus DP-V1 acyclic communication, which allows SCADA systems and engineering workstations to read device parameters, retrieve diagnostic records, and push configuration updates to field instruments — all without interrupting cyclic process data exchange. This capability is essential for remote fault isolation, predictive maintenance scheduling, and minimizing unplanned downtime across geographically distributed production sites.

For production line transparency, the DSPC174 3BSE005461R1 enables real-time OEE (Overall Equipment Effectiveness) data collection by ensuring that every Profibus-connected drive, valve positioner, and sensor continuously reports its status to the AC800M. This data feeds directly into MES and ERP systems via the SCADA layer, giving plant managers the visibility they need to optimize throughput, reduce waste, and respond to alarms within seconds rather than minutes.

System expansion is straightforward: additional Profibus segments can be added to the AC800M rack using additional DSPC174 or compatible communication modules, allowing the control system to scale as production capacity grows — without requiring a complete network redesign or controller replacement.

Industrial Connectivity FAQ

Q1: What is the communication latency of the DSPC174 3BSE005461R1 on a Profibus DP network?
The DSPC174 supports Profibus DP cyclic data exchange at speeds up to 12 Mbit/s. At typical industrial configurations (1.5 Mbit/s with 32 slaves), bus cycle times are well under 10 ms, making it suitable for time-critical process control applications within the AC800M environment. Latency is deterministic and consistent, which is essential for closed-loop control applications.

Q2: Is the DSPC174 3BSE005461R1 compatible with both Profibus DP-V0 and DP-V1 devices?
Yes. The DSPC174 3BSE005461R1 supports Profibus DP-V0 (cyclic data exchange) and DP-V1 (acyclic parameter access and diagnostics), ensuring backward compatibility with legacy field devices while supporting advanced diagnostic and parameterization features of modern Profibus instruments. This dual-mode support protects existing field infrastructure investments.

Q3: How is network stability ensured in multi-segment Profibus installations?
The DSPC174 implements standard Profibus bus termination and supports repeater integration for extended segment lengths. The AC800M platform’s redundant controller options further enhance network resilience, and the module’s hardware watchdog ensures automatic fault detection and controller notification in the event of a bus communication failure — minimizing mean time to recovery (MTTR).

Q4: What warranty and pre-shipment testing does ZYPLC provide for the DSPC174 3BSE005461R1?
Every DSPC174 3BSE005461R1 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, hardware condition, and firmware compatibility. All units are covered by a 12-month warranty from the date of shipment. In-stock units are dispatched within 1–3 business days via DHL or FedEx with full tracking. For volume orders or urgent project requirements, contact our team directly for priority fulfillment.
