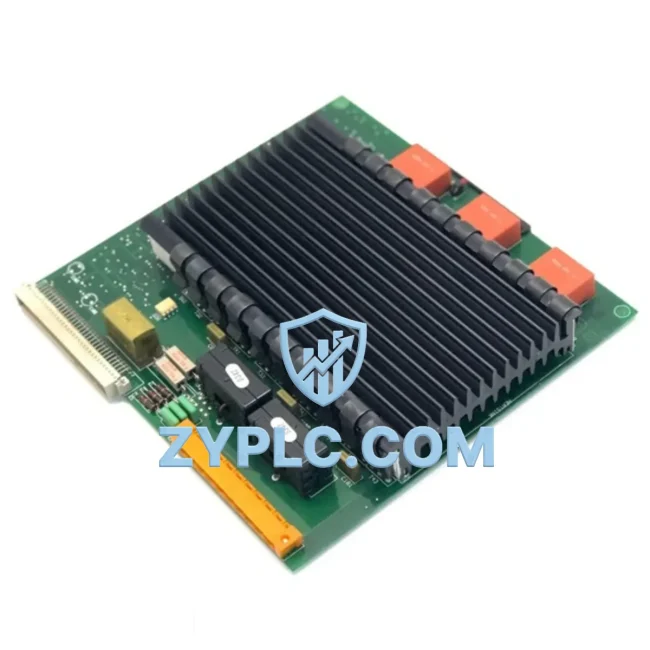

ABB DSQC236G Robot Axis Drive Board for IRC5 Systems

ABB DSQC236G: Industrial Data Link for IRC5 Robot Axis Drive Systems

The ABB DSQC236G is a high-performance Robot Axis Drive Board engineered for the ABB IRC5 robot controller series. Designed to serve as the critical communication and power interface between the IRC5 controller cabinet and the robot’s servo drive axes, the DSQC236G ensures deterministic, low-latency data exchange across the entire motion control chain. In smart factory environments where uptime, precision, and real-time data visibility are non-negotiable, this board delivers the industrial-grade connectivity that modern automation demands.

As manufacturing facilities accelerate their transition toward Industry 4.0 architectures, the role of the axis drive board extends far beyond simple motor control. The DSQC236G acts as a foundational node in the robot’s internal data network, bridging the IRC5 main computer module — such as the ABB DSQC639 main computer unit — with the axis drive electronics, enabling synchronized multi-axis motion, real-time fault detection, and closed-loop feedback across all robot joints.

Network Communication Table

Connected Automation Data Flow

In a fully integrated IRC5 robot cell, the DSQC236G sits at the heart of the motion data pipeline. The sequence begins at the ABB DSQC639 main computer board, which processes the robot program logic and generates axis trajectory commands. These commands are transmitted via the IRC5 internal drive bus to the DSQC236G, which then distributes drive signals to each servo axis module.

Simultaneously, encoder feedback from each robot joint — captured by the ABB DSQC368 serial measurement board — is routed back through the DSQC236G to the main computer, completing the closed-loop servo control cycle. This real-time feedback loop, operating at millisecond intervals, is what enables the IRC5 to achieve the sub-millimeter repeatability required in precision assembly and robotic welding applications.

At the fieldbus layer, the IRC5 controller communicates with the broader factory network through dedicated gateway modules. The ABB DSQC658 DeviceNet adapter and the ABB DSQC688 PROFIBUS adapter allow the robot controller to exchange I/O data with PLCs, remote I/O stations, and SCADA systems. For Ethernet-based architectures, the ABB DSQC1006 EtherNet/IP module enables seamless integration with Rockwell Automation ControlLogix PLCs, Siemens S7-1500 controllers, and OPC-UA-capable SCADA platforms such as Wonderware, FactoryTalk, or Ignition SCADA.

On the safety and monitoring side, the ABB DSQC400 safety board works in conjunction with the DSQC236G to enforce axis-level safety functions, including safe torque off (STO) and safe speed monitoring (SSM), ensuring compliance with ISO 10218 robot safety standards. Alarm signals and diagnostic data generated at the drive board level are surfaced through the IRC5 FlexPendant HMI, giving operators immediate visibility into axis faults, overcurrent events, and communication errors.

For facilities deploying edge computing or IIoT gateways, the DSQC236G’s data — aggregated at the IRC5 controller level — can be forwarded via the ABB Ability™ Connected Services platform or third-party edge gateways to cloud-based analytics dashboards, enabling predictive maintenance, OEE tracking, and remote diagnostics without interrupting production.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy robot installations is data isolation — the inability to extract meaningful operational data from the robot controller and share it with plant-level systems. The ABB DSQC236G, as the axis drive communication backbone of the IRC5, is the starting point for solving this problem.

When paired with the appropriate fieldbus gateway modules, the IRC5 robot cell transforms from an isolated automation island into a fully networked production node. Protocol fragmentation — where robots speak one language and PLCs speak another — is resolved through the IRC5’s modular communication architecture. Whether the plant network runs on PROFIBUS DP, DeviceNet, EtherNet/IP, or Modbus TCP, the IRC5 can be configured to participate natively, with the DSQC236G ensuring that axis-level data remains accurate and timely throughout the protocol translation process.

Remote monitoring and diagnostics become straightforward once the IRC5 is connected to the plant SCADA system. Maintenance teams can monitor axis load, motor temperature trends, and drive fault histories from a central control room or mobile HMI, dramatically reducing mean time to repair (MTTR) and enabling condition-based maintenance strategies. Production line transparency — knowing exactly which robot is running, at what speed, and with what fault history — becomes a standard operational capability rather than an aspirational goal.

System expansion is equally simplified. Adding new robot cells, integrating collaborative robots (cobots), or extending the automation network to new production zones does not require replacing the core IRC5 infrastructure. The DSQC236G’s compatibility with the full IRC5 ecosystem means that drive board replacements, upgrades, and expansions can be executed with minimal downtime and without re-engineering the communication architecture.

Every ABB DSQC236G unit supplied by ZYPLC undergoes pre-shipment functional testing, including drive bus communication verification, axis signal integrity checks, and power rail validation. Units are shipped with full anti-static packaging and are backed by a 12-month warranty, with in-stock availability for immediate dispatch via DHL Express or FedEx International Priority.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSQC236G support for integration with plant SCADA systems?
The DSQC236G operates on ABB’s internal IRC5 drive bus for axis-level communication. For plant-level SCADA integration, the IRC5 controller uses dedicated fieldbus gateway modules — such as the DSQC658 (DeviceNet), DSQC688 (PROFIBUS), or DSQC1006 (EtherNet/IP) — to bridge the robot controller with SCADA platforms, DCS systems, and OPC-UA servers. This modular approach ensures protocol compatibility across heterogeneous industrial networks.

Q2: How does the DSQC236G ensure network stability and low-latency axis control in high-speed robot applications?
The DSQC236G is designed for deterministic, real-time communication within the IRC5 controller’s internal drive network. The servo feedback loop operates at fixed scan intervals, ensuring that axis position, velocity, and torque data are updated without jitter or latency spikes. This deterministic behavior is critical for high-speed pick-and-place, robotic welding, and precision assembly applications where timing deviations directly impact product quality.

Q3: Is the ABB DSQC236G compatible with all IRC5 controller variants, and can it be used in multi-robot systems?
The DSQC236G is compatible with the full range of IRC5 controller variants, including the IRC5 Single Cabinet, IRC5 Dual Cabinet, and IRC5 Panel Mounted Controller. In multi-robot systems managed by a MultiMove configuration, each IRC5 cabinet maintains its own DSQC236G, with inter-robot coordination handled at the main computer level. This architecture supports synchronized multi-robot operations without compromising individual axis control integrity.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed on the DSQC236G?
Every DSQC236G unit supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and functional failures. Pre-shipment testing includes drive bus communication verification, axis signal output checks, power supply rail validation, and visual inspection for component integrity. Units are packaged in anti-static materials and shipped with tracking via DHL Express or FedEx, with typical lead times of 3–7 business days for international destinations.
