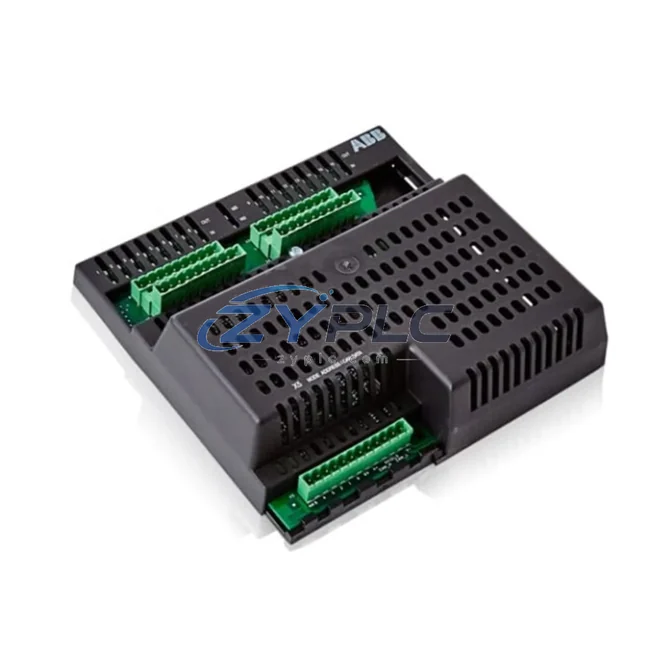

ABB DSQC328A 3HAC17970-1 I/O Module for IRC5

ABB DSQC328A 3HAC17970-1 I/O Module for IRC5: Control System Integration and Upstream-Downstream Coordination

The ABB DSQC328A (3HAC17970-1) is a dedicated digital I/O module engineered for seamless integration within the ABB IRC5 robot controller architecture. Rather than functioning as a standalone peripheral, this module occupies a critical position in the layered automation hierarchy — bridging the control layer, I/O layer, and field execution layer to deliver consistent signal management, deterministic response, and long-term system reliability across demanding industrial environments.

In a complete IRC5-based control system, the DSQC328A works in close coordination with the IRC5 main computer unit (DSQC562 or DSQC560), the axis computer (DSQC668), and the drive unit modules to ensure that digital input and output signals are processed with the timing precision required for robotic motion sequencing. The module connects directly to the IRC5 controller backplane, enabling tight coupling with the system bus and eliminating the latency risks associated with external I/O gateways.

Product Specification Table

System Compatibility Notes

The DSQC328A achieves its full value when considered within the complete IRC5 system architecture. At the control layer, the IRC5 main computer (DSQC562) executes RAPID programs and dispatches I/O commands through the system bus. The DSQC328A receives these commands and translates them into physical 24 VDC signals that drive field devices — conveyor relays, pneumatic solenoids, safety interlocks, and end-of-arm tooling actuators.

At the power layer, the IRC5 power supply unit (DSQC609) provides regulated 24 VDC to the I/O module, ensuring stable operation even during high-cycle production runs. For systems requiring redundant power paths, the DSQC661 power distribution board can be integrated to maintain I/O availability during partial power events.

At the network and communication layer, the DSQC328A operates in conjunction with the DeviceNet gateway module (DSQC350) or the PROFIBUS adapter (DSQC352) when the IRC5 system is integrated into a broader plant-level SCADA or DCS network. This allows the robot cell to exchange status signals with upstream PLCs, MES systems, or safety controllers without requiring additional signal conditioning hardware.

For human-machine interface coordination, the FlexPendant (IRC5 teach pendant) provides real-time I/O status visualization, allowing engineers to monitor DSQC328A channel states during commissioning and fault diagnosis. When paired with the RobotStudio offline programming environment, I/O mapping for the DSQC328A can be pre-configured and validated before physical installation, significantly reducing on-site commissioning time.

In multi-robot or redundant architecture deployments, the DSQC328A supports coordinated I/O sharing across IRC5 MultiMove configurations, where multiple robot controllers share a common I/O namespace. This is particularly valuable in automotive body-in-white welding lines, where synchronized signal exchange between robot cells is essential for collision avoidance and production sequencing.

Industrial Application Notes

Automotive Manufacturing: In body-in-white welding and assembly lines, the DSQC328A manages gripper open/close signals, weld gun activation, and part-present sensor inputs. Its deterministic I/O response ensures that robot motion and tooling actuation remain synchronized across multi-station production cells.

Electronics and Semiconductor Assembly: In precision pick-and-place applications, the module handles vacuum generator control, vision trigger signals, and conveyor indexing outputs. The 16-channel digital output capacity supports complex tooling configurations without requiring additional I/O expansion hardware.

Petrochemical and Process Industries: When IRC5 robots are deployed in hazardous material handling or drum filling applications, the DSQC328A interfaces with safety relay modules and zone control systems. Its compatibility with the IRC5 safety architecture (SafeMove) ensures that I/O signals are processed within the safety-rated control loop.

Metal Fabrication and Welding: In arc welding and laser cutting cells, the module coordinates torch ignition signals, shielding gas valve control, and seam tracking sensor inputs. The robust 24 VDC I/O standard ensures reliable operation in environments with high electromagnetic interference from welding equipment.

Packaging and Palletizing: In high-speed packaging lines, the DSQC328A manages product reject signals, conveyor divert outputs, and case sealer interlocks. Its integration with the IRC5 motion controller allows packaging robots to respond to upstream line signals within a single controller scan cycle.

Product Compatibility FAQ

Q1: Is the DSQC328A (3HAC17970-1) compatible with both single-cabinet and dual-cabinet IRC5 configurations?
Yes. The DSQC328A is designed for the IRC5 platform in both single-cabinet (IRC5 Compact) and dual-cabinet configurations. It connects to the IRC5 internal system bus and is recognized automatically by the RobotWare operating system during controller startup. No additional driver installation is required. For dual-cabinet systems, I/O mapping should be configured in RobotStudio to assign the module to the correct controller node.

Q2: Can the DSQC328A be used alongside DeviceNet or PROFIBUS field devices in the same IRC5 system?
Yes. The DSQC328A operates on the IRC5 internal I/O bus independently of external fieldbus networks. DeviceNet (DSQC350) or PROFIBUS (DSQC352) adapter modules can be installed in the same IRC5 cabinet to handle external field device communication, while the DSQC328A manages internal digital I/O signals. This architecture supports system integration — allowing the IRC5 system to simultaneously interface with internal tooling signals and external plant-level networks without signal conflicts.

Q3: What does the warranty terms confirmed during quotation cover for the DSQC328A supplied by ZYPLC?
All DSQC328A units supplied by ZYPLC are covered by a warranty terms confirmed during quotation from the date of shipment. The warranty covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance to ABB specifications. ZYPLC provides pre-shipment functional testing and documentation for each unit. In the event of a warranty claim, ZYPLC offers replacement or repair support with priority handling to minimize production downtime.
