ABB DSQC354 Interface Card for S4/S4C

ABB DSQC354 Interface Card for S4/S4C Automation

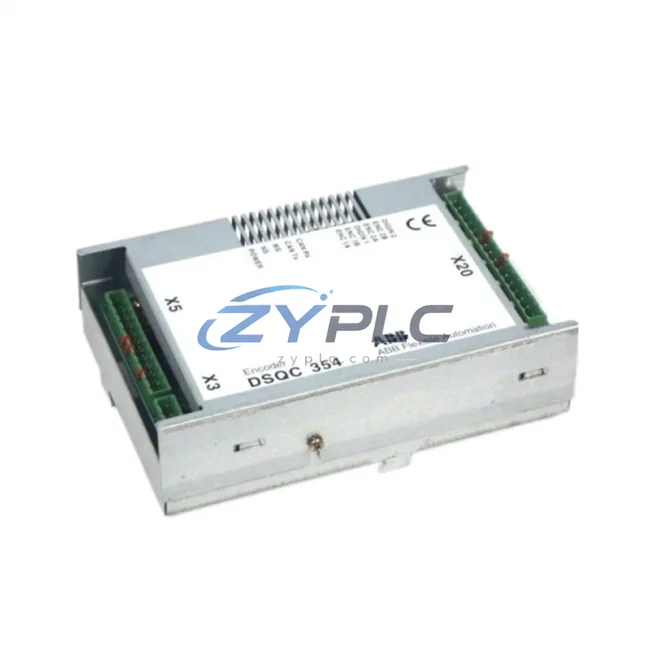

The ABB DSQC354 is a high-performance interface card engineered for ABB S4 and S4C series robot controllers, delivering precise signal routing, reduced communication latency, and measurable energy efficiency gains across automated production lines. In industrial environments where every kilowatt-hour and every second of downtime carries a direct cost, the DSQC354 plays a critical role in keeping the control architecture lean, responsive, and power-aware.

Unlike generic interface modules, the DSQC354 is purpose-built for ABB’s IRC5-predecessor S4/S4C platform, ensuring native compatibility with the robot controller’s internal bus architecture. This tight integration eliminates signal conversion overhead, reduces idle-state power draw, and allows the controller to maintain accurate cycle-time synchronization — a key factor in production line throughput optimization.

Product Specification Table

System Compatibility and Application

The DSQC354 does not operate in isolation — it functions as a critical node within a broader industrial automation system. In a typical S4/S4C-based robotic cell, the controller communicates with servo drives such as the ABB DSQC508 drive unit and the DSQC532 axis computer to coordinate multi-axis motion. When the DSQC354 interface card maintains clean, low-latency signal paths between these components, the servo drives can execute motion profiles with greater precision, avoiding the energy-wasting micro-corrections that occur when communication is degraded or delayed.

On the power monitoring side, integrating the robot cell with a DSQC352 I/O board or a DSQC377 power supply unit allows plant engineers to track real-time energy consumption at the controller level. When paired with a factory-wide SCADA system or an maintenance planning platform communicating over Profibus-DP or DeviceNet — both supported in the S4/S4C ecosystem — the DSQC354 enables the controller to participate in demand-response energy strategies, reducing peak load during non-critical production windows.

For facilities running mixed automation environments, the DSQC354 also supports integration with ABB AC500 PLCs acting as supervisory controllers, coordinating robot cell output with upstream conveyor systems, downstream inspection stations, and energy metering gateways. The DSQC328 serial measurement board and DSQC369 fieldbus adapter further extend the controller’s ability to collect process data and feed it into energy analytics dashboards, enabling data-driven decisions about shift scheduling, robot idle modes, and preventive maintenance intervals.

Maintenance and Replacement Notes

In real-world production environments — automotive body shops, electronics assembly lines, food and beverage packaging facilities — the ABB DSQC354 contributes to maintenance planning in several concrete ways.

Reduced Cycle Time Variance: A degraded or failing interface card introduces jitter into the robot’s motion cycle. This forces the controller to add safety margins to motion profiles, effectively slowing the line and increasing the energy consumed per unit produced. A properly functioning DSQC354 eliminates this jitter, allowing the robot to run at its designed cycle time with minimal energy overhead per part.

Faster Fault Recovery: When a robot cell experiences a fault, every minute of unplanned downtime represents wasted energy from idle peripheral equipment — conveyors still running, HVAC systems maintaining temperature in an empty cell, compressed air systems holding pressure. The DSQC354’s reliable signal integrity reduces the frequency of communication-related faults, and when faults do occur, the controller’s diagnostic data is cleaner and easier to interpret, accelerating recovery.

Predictive Maintenance Enablement: By maintaining stable communication between the controller and its connected drives and I/O modules, the DSQC354 ensures that condition monitoring data — motor current signatures, axis load profiles, temperature readings — is transmitted accurately. This data feeds predictive maintenance algorithms that can identify developing faults in servo motors or gearboxes before they cause catastrophic failures, avoiding the energy and productivity losses associated with unplanned breakdowns.

Inventory Assurance and Supply Continuity: ZYPLC maintains ready stock of the DSQC354 to support rapid replacement in production-critical environments. All units undergo full functional testing before shipment, and each is covered by a warranty terms confirmed during quotation, giving maintenance teams the confidence to plan replacements proactively rather than reactively.

Product Sourcing FAQ

Q1: How does the DSQC354 contribute to operational stability in an S4/S4C robot cell?
The DSQC354 maintains low-latency, high-integrity communication between the robot controller and its connected drives and I/O systems. This precision reduces motion cycle variance, minimizes idle-state unplanned downtime, and supports accurate condition monitoring — all of which contribute to measurable reductions in energy consumption per unit produced.

Q2: Is the DSQC354 compatible with both S4 and S4C controllers?
Yes. The DSQC354 is designed for use in both ABB S4 and S4C series robot controllers. If you are unsure about compatibility with your specific controller revision or cabinet configuration, please contact our technical team with your controller serial number for confirmation.

Q3: What is the recommended replacement process for a failed DSQC354 in a live production environment?
We recommend maintaining at least one spare DSQC354 in your critical spares inventory. Upon failure, the replacement procedure involves powering down the controller, swapping the card, and performing a system restart with parameter verification. ZYPLC’s technical support team can provide guidance on the replacement procedure and parameter backup best practices.

Q4: What warranty and testing standards apply to DSQC354 units from ZYPLC?
Every DSQC354 unit shipped by ZYPLC undergoes a full functional test simulating real controller communication conditions. All units are covered by a warranty terms confirmed during quotation from the date of shipment. In the event of a warranty claim, ZYPLC provides rapid replacement to minimize production downtime.
