ABB DSQC373 Axis Computer Unit: Industrial Data Link for IRC5 Robot Control Systems

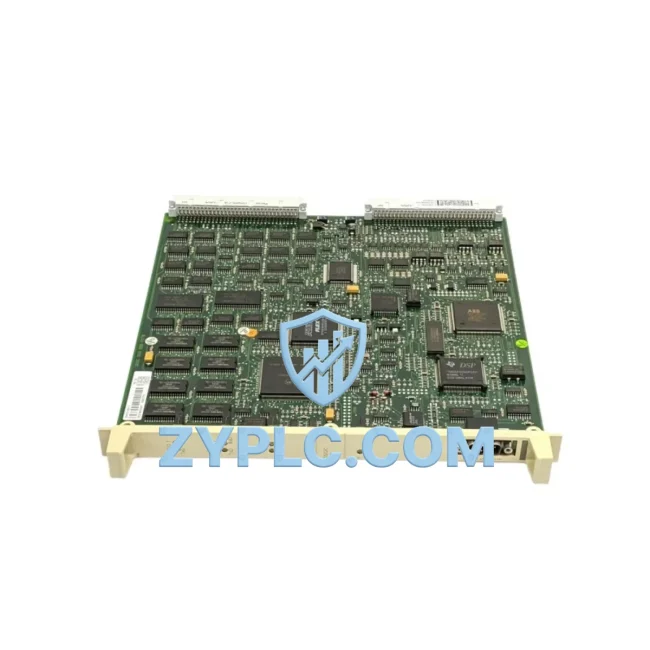

The ABB DSQC373 is a high-performance Axis Computer Unit engineered for the IRC5 Robot Controller platform, serving as a critical node in the industrial data chain between servo drives, motion controllers, field devices, and supervisory systems. Designed to handle real-time axis coordination and multi-protocol communication, the DSQC373 enables seamless data flow across the full automation stack — from signal acquisition at the drive level to process visibility at the SCADA and HMI layer.

In modern smart factory environments, the integrity of the motion control network is non-negotiable. The DSQC373 addresses this by supporting SERCOS (Serial Real-time Communication System), a deterministic fiber-optic protocol purpose-built for high-speed servo communication, alongside DeviceNet and Profibus-DP — two of the most widely deployed fieldbus standards in industrial automation. This multi-protocol capability allows the DSQC373 to act as a communication bridge between the IRC5 controller and a broad ecosystem of field devices, including servo amplifiers, remote I/O modules, frequency inverters, and intelligent sensors.

Network Communication Table

Connected Automation Data Flow

Within an IRC5-based robotic cell, the DSQC373 sits at the heart of the axis communication loop. It interfaces directly with the ABB DSQC374 Drive Unit and ABB DSQC375 Rectifier Unit, forming the power and motion backbone of the IRC5 cabinet. The SERCOS ring connects the DSQC373 to each drive node with microsecond-level cycle times, ensuring that position, velocity, and torque commands are transmitted without latency — a prerequisite for coordinated multi-axis robotic motion.

On the fieldbus side, the DSQC373 communicates with ABB DSQC652 Digital I/O modules and ABB DSQC651 Analog I/O boards via the DeviceNet segment, enabling real-time signal exchange with end-of-arm tooling, conveyor encoders, and safety interlocks. For plants running Profibus-DP infrastructure, the DSQC373 integrates natively with Siemens S7-300/S7-400 PLCs and Siemens ET 200S remote I/O stations, allowing the robot controller to participate in the broader plant-level automation network without protocol gateways or additional conversion hardware.

At the supervisory level, process data collected by the DSQC373 — including axis load, cycle count, fault codes, and motion status — is forwarded through the IRC5 main computer (ABB DSQC639) to ABB RobotStudio or third-party SCADA platforms via OPC-UA or Ethernet/IP. This data pipeline supports real-time dashboards on ABB CP600 HMI panels and enables operators to monitor robot health, track production KPIs, and respond to alarms without physical access to the cabinet. For multi-robot installations, the DSQC373 participates in ABB MultiMove configurations, where up to four mechanical units are coordinated by a single IRC5 controller, with the axis computer managing synchronized path planning across all axes simultaneously.

In distributed manufacturing lines, the DSQC373 also interfaces with ABB AC500 PLCs acting as line controllers, receiving work order data and passing back completion signals through the DeviceNet or Profibus-DP network. This closed-loop data architecture — from sensor signal to robot motion to MES acknowledgment — is the foundation of transparent, data-driven production in smart factory environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of multiple communication protocols across different generations of equipment. A typical manufacturing site may run SERCOS for servo drives, Profibus-DP for legacy field devices, DeviceNet for safety and I/O, and Ethernet-based protocols for SCADA connectivity — all within the same production cell. Without a unified axis computer capable of bridging these layers, data becomes siloed: drive faults go unreported to the SCADA, robot cycle data never reaches the MES, and maintenance teams rely on manual inspection rather than remote diagnostics.

The ABB DSQC373 resolves this fragmentation by serving as the multi-protocol communication hub within the IRC5 architecture. Its native SERCOS interface eliminates the need for external motion gateways, while its DeviceNet and Profibus-DP ports connect directly to the plant’s existing fieldbus infrastructure. This means engineers can integrate the IRC5 robot into a Profibus-DP network managed by a Siemens PLC without reconfiguring the broader network topology — the DSQC373 handles the protocol translation internally.

For remote monitoring and diagnostics, the DSQC373’s data is accessible through the IRC5 service port and ABB’s remote service platform, allowing engineers to retrieve axis error logs, drive temperature data, and communication fault histories from off-site locations. This capability is particularly valuable for multi-site manufacturers who need centralized visibility across geographically distributed robot installations. Production line transparency is further enhanced by the DSQC373’s support for cyclic data exchange, which ensures that SCADA systems receive consistent, timestamped updates on robot status — enabling accurate OEE calculations and predictive maintenance scheduling.

System expansion is equally straightforward: additional axes or I/O nodes can be added to the SERCOS ring or DeviceNet segment without disrupting existing network traffic, making the DSQC373 a scalable foundation for phased automation upgrades.

Industrial Connectivity FAQ

Q1: What is the communication latency of the DSQC373 on the SERCOS network?
The DSQC373 operates on the SERCOS protocol with cycle times as low as 250 microseconds, providing deterministic, jitter-free communication between the IRC5 controller and connected servo drives. This ensures precise synchronization across all robot axes during high-speed motion sequences.

Q2: Is the DSQC373 compatible with both Profibus-DP and DeviceNet simultaneously?
Yes. The DSQC373 supports concurrent operation on SERCOS, DeviceNet, and Profibus-DP networks. The specific protocol configuration depends on the IRC5 system software version and the installed option modules. Compatibility with your existing network architecture should be verified against the IRC5 system configuration prior to installation.

Q3: How is network stability ensured during continuous production operation?
The DSQC373 is designed for 24/7 industrial operation with built-in fault detection and automatic error reporting on all communication interfaces. In the event of a network fault, the IRC5 controller logs the error with a timestamp and fault code, enabling rapid diagnosis. All units supplied by ZYPLC are fully tested prior to shipment to verify communication integrity across all supported protocols.

Q4: What warranty and support is provided with the DSQC373?
Every ABB DSQC373 supplied by ZYPLC comes with a 12-month warranty covering hardware defects and communication failures. Pre-shipment functional testing is performed on all units to validate SERCOS ring integrity, DeviceNet node communication, and Profibus-DP data exchange. Global express shipping via DHL and FedEx is available, with typical lead times of 3–7 business days depending on destination.
