ABB DSQC503 Industrial Network Interface for IRC5 Systems

ABB DSQC503 Industrial Network Interface for IRC5 Systems: Bridging the Industrial Data Link in Smart Factory Environments

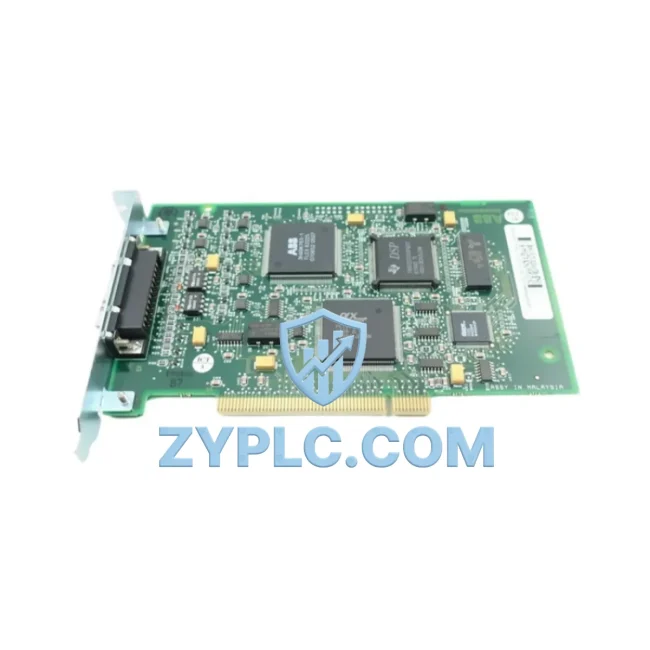

The ABB DSQC503 is a high-performance fieldbus gateway board engineered for seamless integration within ABB IRC5 robot controller platforms. As industrial automation evolves toward fully connected smart factory architectures, the DSQC503 serves as a critical communication node — enabling real-time data exchange between robotic systems, programmable logic controllers, remote I/O modules, HMI panels, SCADA platforms, and upper-level MES or ERP systems. Whether deployed on an automotive assembly line, a precision electronics manufacturing cell, or a heavy-duty material handling system, the DSQC503 delivers the protocol translation, network stability, and data transparency that modern industrial sites demand.

Designed to support both PROFIBUS-DP and DeviceNet fieldbus protocols, the DSQC503 eliminates the communication barriers that traditionally isolate robotic workcells from the broader plant network. By acting as a gateway between the IRC5 controller’s internal communication bus and the plant-wide fieldbus backbone, it enables continuous, low-latency data flow — from signal acquisition at the sensor level all the way to real-time visualization on SCADA dashboards and remote diagnostic terminals.

Network Communication Table

Connected Automation Data Flow

In a typical smart factory deployment, the ABB DSQC503 sits at the heart of the robotic workcell’s communication architecture. The data flow begins at the field device level: sensors, encoders, and actuators connected to the robot’s I/O system generate continuous process signals. These signals are aggregated within the ABB IRC5 controller — the central processing unit that governs robot motion, safety logic, and I/O management — and the DSQC503 then translates this data into PROFIBUS-DP or DeviceNet frames for transmission across the plant network.

On the PROFIBUS segment, the DSQC503 communicates directly with Siemens S7-300 / S7-400 PLCs acting as PROFIBUS masters, enabling the robot controller to receive production commands and return status feedback in real time. In DeviceNet environments, it interfaces with Allen-Bradley ControlLogix or CompactLogix PLCs, allowing seamless integration into Rockwell Automation control architectures without the need for additional protocol converters.

Remote I/O expansion is handled through compatible ABB DSQC652 digital I/O boards and ABB DSQC651 analog I/O modules, which extend the robot controller’s signal capacity and feed additional process data into the fieldbus network via the DSQC503 gateway. This data is then made available to Wonderware InTouch or Ignition SCADA platforms for real-time visualization, trend analysis, and alarm management.

At the HMI layer, operators interact with the system through ABB FlexPendant terminals or third-party HMI panels connected via the PROFIBUS segment, receiving live robot status, cycle counts, fault codes, and production KPIs. For remote diagnostics and predictive maintenance, the DSQC503’s network data is forwarded through an industrial edge gateway — such as a Moxa MGate or Advantech ADAM series device — to cloud-based monitoring platforms, enabling engineers to diagnose communication faults, monitor network health, and perform parameter adjustments without physical access to the production floor.

Variable frequency drives (VFDs) controlling conveyor motors and servo axes adjacent to the robotic workcell — such as ABB ACS880 drives — are also integrated into the same PROFIBUS network, allowing the IRC5 controller to coordinate robot motion with conveyor speed and positioning in a tightly synchronized production loop. The DSQC503 ensures that all nodes on the fieldbus segment maintain deterministic communication timing, which is essential for high-speed pick-and-place, welding, and assembly applications.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the fragmentation of communication protocols across different generations of equipment. Older robotic workcells, legacy PLCs, and newer IIoT-enabled devices often speak entirely different protocol languages, creating data silos that prevent plant managers from achieving true production transparency. The ABB DSQC503 directly addresses this challenge by providing a standardized fieldbus interface that bridges the IRC5 robot controller with the broader plant network — regardless of whether the upstream control system uses PROFIBUS or DeviceNet.

By enabling the IRC5 controller to participate as a full network node on the plant fieldbus, the DSQC503 makes robot status, fault codes, cycle data, and I/O states visible to SCADA systems and MES platforms in real time. This eliminates the need for manual data collection, reduces response time to production anomalies, and supports the kind of continuous improvement cycles that lean manufacturing and Industry 4.0 initiatives depend on.

Remote monitoring capabilities are significantly enhanced when the DSQC503 is in place. Maintenance engineers can access live diagnostic data from the IRC5 controller through the SCADA network, identify communication faults before they escalate into unplanned downtime, and execute remote parameter changes during scheduled maintenance windows. This capability is particularly valuable in multi-site manufacturing operations where on-site engineering resources are limited.

System scalability is another key advantage. As production lines expand — adding new robot cells, additional I/O nodes, or upgraded PLC hardware — the DSQC503’s standard fieldbus interface ensures that the IRC5 controller can be integrated into the new network topology without hardware redesign. This protects the capital investment in existing ABB robotic infrastructure while supporting the incremental growth of the automation system.

Every ABB DSQC503 unit supplied by ZYPLC undergoes a comprehensive functional test prior to shipment, verifying fieldbus communication, I/O signal integrity, and board-level hardware performance. Units are supplied with a 12-month warranty, and our engineering team provides pre-sales technical consultation to confirm compatibility with your specific IRC5 controller configuration and fieldbus network architecture.

Industrial Connectivity FAQ

Q1: What fieldbus protocols does the ABB DSQC503 support, and is it compatible with my existing PLC network?
The DSQC503 supports PROFIBUS-DP (including DP-V0 and DP-V1) and DeviceNet protocols. It is compatible with PROFIBUS master PLCs from Siemens, ABB, and other major vendors, as well as DeviceNet networks managed by Allen-Bradley ControlLogix and CompactLogix controllers. Please contact our technical team with your specific PLC model and network configuration for a compatibility confirmation before ordering.

Q2: How does the DSQC503 affect communication latency in a high-speed robotic application?
The DSQC503 is designed for deterministic, real-time fieldbus communication. PROFIBUS-DP cycle times are typically in the range of 1–10 ms depending on the number of network nodes and baud rate configuration, which is well within the requirements of most robotic welding, assembly, and material handling applications. DeviceNet communication latency is similarly low, supporting time-critical I/O exchange between the IRC5 controller and connected PLC or remote I/O nodes.

Q3: Can the DSQC503 be used in a network with both PROFIBUS and DeviceNet devices simultaneously?
The DSQC503 is a single-protocol gateway board — each unit is configured for either PROFIBUS-DP or DeviceNet operation within the IRC5 controller. For applications requiring simultaneous multi-protocol connectivity, multiple gateway boards can be installed in the IRC5 controller chassis, or an external protocol converter can be used to bridge the two fieldbus segments. Our engineering team can advise on the optimal network architecture for your specific application.

Q4: What does the 12-month warranty cover, and what testing is performed before shipment?
Every DSQC503 unit is subjected to a full functional test before shipment, including fieldbus communication verification, I/O signal integrity checks, and board-level hardware inspection. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains in-stock inventory of DSQC503 units to support fast order fulfillment, and our logistics team can arrange expedited shipping to minimize production downtime for urgent requirements.
