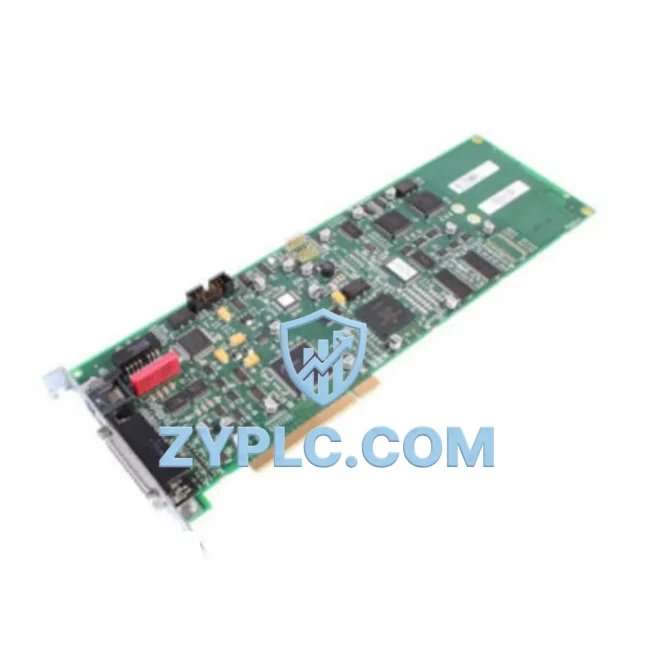

ABB DSQC532B 3HAC023447-001 System-Ready Controller for IRC5 Architecture

ABB DSQC532B 3HAC023447-001 System-Ready Controller for IRC5 Architecture

The ABB DSQC532B (3HAC023447-001) is a dedicated axis computer module engineered for seamless integration within the ABB IRC5 robotic controller architecture. Rather than functioning as a standalone component, this module occupies a critical position within the IRC5 cabinet’s layered control hierarchy — coordinating motion execution, signal processing, and real-time communication across the full robotic cell. In modern industrial automation environments, where uptime, scalability, and system consistency are non-negotiable, the DSQC532B delivers the architectural reliability that engineers and maintenance teams depend on.

Understanding the DSQC532B’s role requires viewing it within the complete IRC5 system topology. The IRC5 controller platform is structured around a modular cabinet design that separates the drive system from the control electronics, enabling precise motion coordination across multi-axis robotic arms. The DSQC532B serves as the axis computer responsible for processing motion commands issued by the main computer — typically the DSQC639 or DSQC1000 main computer board — and translating them into real-time drive signals distributed to the drive units such as the DSQC668 or DSQC669 axis drive modules. This signal flow ensures that each servo axis receives synchronized, latency-free commands, which is essential for high-precision applications in automotive assembly, arc welding, material handling, and palletizing.

Architecture Specification Table

Coordinated Control System Design

The DSQC532B does not operate in isolation. Its value is fully realized when viewed as part of a coordinated IRC5 system architecture. At the control layer, the DSQC639 main computer or DSQC1000 controller board issues high-level motion programs via RobotWare, which are then parsed and distributed to the DSQC532B for axis-level execution. The DSQC532B communicates with the drive layer through the IRC5 internal backplane, ensuring deterministic signal timing across all axes.

At the I/O layer, the DSQC652 digital I/O module and DSQC651 analog I/O module interface with field devices — sensors, actuators, and safety interlocks — feeding real-time process data back into the control loop. The DSQC532B’s motion outputs are synchronized with these I/O signals to maintain precise coordination between robot movement and peripheral equipment such as conveyors, grippers, and vision systems.

For network integration, the IRC5 platform supports PROFIBUS-DP and DeviceNet communication via dedicated gateway modules such as the DSQC667 DeviceNet gateway, enabling the robotic cell to participate in plant-wide SCADA and DCS architectures. This Contextual Integration capability allows the DSQC532B-equipped IRC5 controller to receive production orders, report cycle data, and respond to line-level commands from upstream PLC systems — including Siemens S7-300/S7-400 or Allen-Bradley ControlLogix platforms — without requiring manual intervention.

At the power layer, the DSQC609 power supply unit and DSQC661 rectifier unit provide stable 24 VDC distribution throughout the IRC5 cabinet, ensuring that the DSQC532B and all connected modules receive clean, regulated power even under high-load servo conditions. Proper power architecture is critical for preventing axis faults and maintaining motion accuracy during continuous production cycles.

For human-machine interface integration, the IRC5 FlexPendant (DSQC679) connects directly to the controller, providing operators with real-time axis status, alarm management, and program execution control. The DSQC532B’s axis data is surfaced through the FlexPendant interface, enabling rapid fault diagnosis and parameter adjustment without requiring laptop-based engineering tools during routine operations.

Application in Layered Automation Systems

The DSQC532B finds application across a wide range of industrial sectors where the ABB IRC5 platform is deployed. In automotive manufacturing, IRC5-controlled robots equipped with DSQC532B axis computers perform body-in-white welding, sealing, and assembly operations with sub-millimeter repeatability across multi-shift production schedules. The module’s real-time motion processing capability supports the high-speed, high-precision demands of automotive body shop automation.

In the power generation and electrical utility sector, IRC5 robots with DSQC532B modules are used for transformer winding, switchgear assembly, and cable harness manufacturing — applications where consistent motion accuracy and long-term reliability are essential for product quality and safety compliance. The 12-Month Warranty provided with each DSQC532B unit ensures that maintenance teams can plan replacement cycles with confidence, minimizing unplanned downtime.

In petrochemical and process industries, the IRC5 controller’s ability to integrate with plant DCS systems via Contextual Integration protocols makes the DSQC532B-equipped robot a natural fit for hazardous material handling, valve actuation, and inspection tasks in environments where human access is restricted. The module’s robust design and sealed cabinet installation ensure reliable operation in high-temperature, high-humidity industrial environments.

Water treatment facilities, mining operations, and metallurgical plants increasingly deploy IRC5 robotic systems for material sampling, sorting, and handling tasks. In these applications, the DSQC532B’s role in maintaining motion consistency across extended operating cycles — often 24/7 continuous operation — is critical for process reliability. Packaging lines and food processing facilities also benefit from the IRC5 platform’s hygienic design options, with the DSQC532B providing the motion control backbone for pick-and-place, case packing, and palletizing applications.

Architecture Engineering FAQ

Q1: Is the DSQC532B compatible with both single-cabinet and dual-cabinet IRC5 configurations?
A: Yes. The DSQC532B is designed for use within the ABB IRC5 controller family, which includes both single-cabinet (IRC5 Compact) and dual-cabinet (IRC5 with Drive Module) configurations. In dual-cabinet setups, the axis computer communicates with the drive module via the IRC5 internal communication bus, maintaining full motion coordination across the expanded drive architecture. Always verify the specific RobotWare version compatibility with your system integrator before installation.

Q2: Can the DSQC532B be installed alongside redundant controller configurations for high-availability applications?
A: The IRC5 platform supports redundant controller architectures for applications requiring continuous availability, such as critical process control and automotive production lines. The DSQC532B is compatible with these configurations, operating within the redundant cabinet’s control layer. For full redundancy implementation, additional hardware including redundant power supplies and communication modules must be specified. Our technical team can assist with system architecture validation prior to procurement.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
A: Each DSQC532B unit supplied by ZYPLC is covered by a 12-Month Warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and verified compatibility issues with the specified IRC5 platform. Units are tested prior to dispatch using IRC5-compatible test rigs to confirm axis communication, signal integrity, and power input performance. In the event of a warranty claim, customers should contact our support team with the order reference and fault description. Replacement or repair will be arranged within the agreed service timeline.
