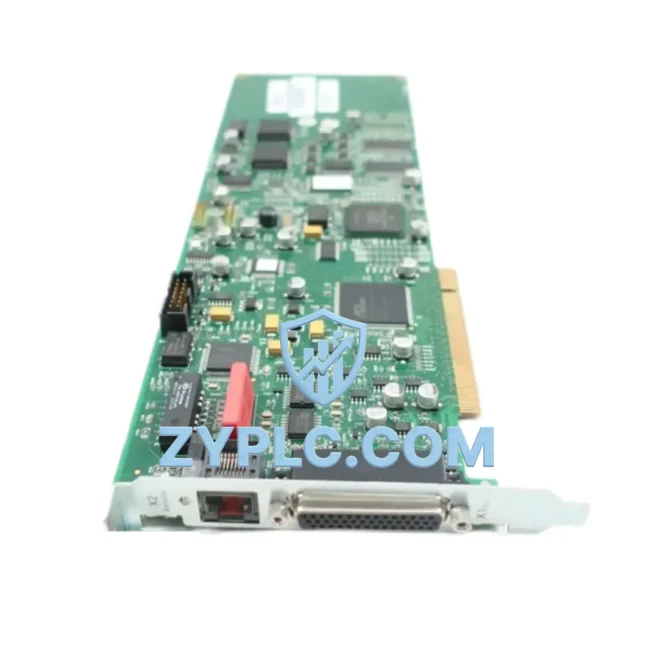

ABB DSQC532B Industrial Network Interface for IRC5 Systems

ABB DSQC532B Industrial Network Interface for IRC5 Systems: Enabling Seamless Smart Factory Data Links

The ABB DSQC532B (3HAC023447-001) is a high-performance I/O PCB Computer Board engineered for ABB IRC5 robot controllers, serving as a critical industrial network interface in modern smart factory environments. Designed to bridge field-level devices with upper-level control and monitoring systems, the DSQC532B enables reliable, real-time data exchange across the full automation stack — from signal acquisition at the sensor layer to SCADA dashboards and MES platforms. Whether deployed in automotive assembly lines, electronics manufacturing, or process automation facilities, this board delivers the communication backbone that keeps production transparent, connected, and responsive.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory, the ABB DSQC532B sits at the heart of the robot controller’s I/O architecture, managing the bidirectional flow of signals between the IRC5 controller and the broader automation network. At the field level, sensors and actuators — including proximity switches, vision systems, and servo drives — feed real-time status data into the DSQC532B’s digital and analog I/O channels. This data is then processed and forwarded upstream through the IRC5’s communication backbone.

When integrated with an ABB DSQC688 EtherNet/IP gateway module or a DSQC667 DeviceNet master board, the DSQC532B enables the IRC5 controller to participate in plant-wide Ethernet or fieldbus networks, allowing seamless handshaking with Siemens S7-series PLCs, Allen-Bradley ControlLogix controllers, or Mitsubishi MELSEC systems on the same network segment. Remote I/O racks — such as those connected via PROFIBUS DP — can be mapped directly into the robot’s I/O table, eliminating the need for dedicated wiring runs and reducing commissioning time significantly.

At the supervisory level, SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC can poll the IRC5 controller’s I/O states via OPC-UA or Modbus TCP gateways, with the DSQC532B providing the physical signal layer that makes this data available. HMI panels — including ABB’s own CP600 series or third-party Weintek and Proface terminals — can display live robot I/O status, alarm states, and cycle counts sourced directly from the DSQC532B’s register map.

For drive-level integration, the DSQC532B coordinates with ABB ACS880 or ACS580 variable frequency drives through hardwired I/O or fieldbus bridges, enabling synchronized motion control and energy monitoring across multi-axis robotic cells. Edge gateway devices — such as those running on Moxa UC-8100 or Advantech WISE-5000 platforms — can aggregate I/O data from multiple IRC5 controllers equipped with DSQC532B boards, forwarding consolidated datasets to cloud-based MES or ERP systems for production analytics and OEE tracking.

This end-to-end data chain — from sensor signal to SCADA dashboard — is made possible by the DSQC532B’s robust I/O processing capability and its compatibility with the IRC5’s modular communication architecture, which also supports optional DSQC652 digital I/O expansion boards and DSQC643 analog I/O modules for extended channel capacity.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, robot controllers, PLCs, and supervisory systems operate in silos, unable to share real-time information efficiently. The ABB DSQC532B directly addresses this problem by providing a standardized, high-density I/O interface that integrates the IRC5 robot controller into the plant’s broader communication fabric.

Protocol Fragmentation: Many production sites run a mix of legacy fieldbus protocols (PROFIBUS, DeviceNet, Interbus) alongside modern Industrial Ethernet standards (EtherNet/IP, PROFINET). The DSQC532B, when paired with appropriate ABB communication gateway modules, acts as a protocol bridge — allowing the IRC5 to communicate with devices regardless of their native protocol, eliminating the need for costly standalone protocol converters.

Remote Monitoring and Diagnostics: With the DSQC532B handling I/O at the controller level, maintenance teams can configure remote diagnostic routines that monitor signal states, detect wiring faults, and trigger predictive maintenance alerts — all without requiring physical access to the robot cell. This capability is especially valuable in hazardous or hard-to-reach production environments.

Production Line Transparency: By connecting the IRC5 controller’s I/O data to SCADA and MES systems, plant managers gain real-time visibility into robot cycle times, I/O fault rates, and production throughput — enabling data-driven decisions that improve OEE and reduce unplanned downtime.

System Scalability: The modular design of the IRC5 platform, anchored by the DSQC532B, allows production lines to scale incrementally. Additional I/O expansion boards can be added as production demands grow, without requiring a complete controller redesign or network reconfiguration.

Every ABB DSQC532B unit supplied by ZYPLC undergoes pre-shipment functional testing to verify I/O channel integrity, communication bus performance, and board-level diagnostics. Units are shipped with a 12-month warranty, ensuring operational confidence from day one of installation.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSQC532B support?
The DSQC532B is an I/O PCB that interfaces with the IRC5 controller’s internal communication bus. When combined with ABB fieldbus gateway modules such as the DSQC688 (EtherNet/IP) or DSQC667 (DeviceNet), the system supports a wide range of industrial protocols including DeviceNet, PROFIBUS DP, EtherNet/IP, and Interbus, making it compatible with most modern PLC and SCADA environments.

Q2: How does the DSQC532B ensure network stability in high-cycle production environments?
The DSQC532B is designed to ABB’s industrial-grade reliability standards, with robust PCB construction and EMI shielding suited for high-cycle, electrically noisy factory floors. Its deterministic I/O processing ensures consistent signal timing, which is critical for synchronized multi-axis robot cells and high-speed assembly applications.

Q3: Can the DSQC532B be integrated with third-party SCADA or HMI systems?
Yes. Through the IRC5 controller’s communication gateway architecture, I/O data managed by the DSQC532B can be exposed to third-party SCADA platforms (Wonderware, Ignition, WinCC) and HMI terminals via OPC-UA, Modbus TCP, or fieldbus protocols. This makes it straightforward to incorporate ABB robot I/O into existing plant-wide monitoring and control infrastructure.

Q4: What warranty and testing does ZYPLC provide for the ABB DSQC532B?
All DSQC532B units supplied by ZYPLC are covered by a 12-month warranty and undergo pre-shipment functional testing, including I/O channel verification and communication bus diagnostics. Units are available from stock and ship globally via DHL or FedEx, with typical lead times of 1–3 business days from order confirmation.
