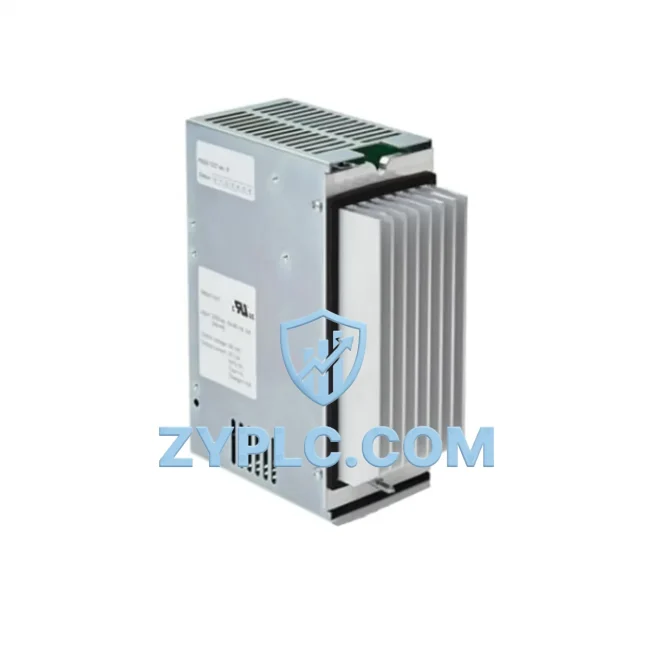

ABB DSQC604 Industrial Power Supply for IRC5 Robot Systems

ABB DSQC604 Industrial Power Supply: Backbone of IRC5 Robot Controller Data Links

The ABB DSQC604 is a dedicated industrial power supply unit engineered for the ABB IRC5 robot controller platform. In modern smart factory environments, stable and conditioned power delivery is not merely a hardware requirement — it is the foundation upon which every layer of industrial communication, real-time data exchange, and automated control depends. The DSQC604 ensures that the IRC5 controller’s internal bus architecture, communication modules, and field I/O interfaces receive clean, regulated power, enabling uninterrupted data flow across the entire automation cell.

As manufacturing sites evolve toward fully connected Industry 4.0 architectures, the power supply unit within a robot controller becomes a critical node in the data chain. From signal acquisition at the sensor level to protocol conversion at the gateway, and from real-time monitoring at the SCADA layer to remote diagnostics via cloud-connected HMI terminals, every link in this chain depends on the reliability of the DSQC604. A voltage fluctuation or power interruption at the controller level can cascade into communication timeouts, fieldbus errors, and unplanned production stoppages — making the DSQC604 not just a power component, but a system-level reliability asset.

ZYPLC maintains verified in-stock inventory of the ABB DSQC604, with each unit subject to pre-shipment functional testing and covered by a 12-month warranty. Global logistics via DHL Express and FedEx International ensures rapid delivery to automation integrators, OEM machine builders, and MRO procurement teams worldwide.

Network Communication Table

Connected Automation Data Flow

Within a typical IRC5-based robotic cell, the DSQC604 power supply sits at the heart of a layered automation architecture. At the field device level, sensors and actuators connected through the ABB DSQC652 digital I/O board rely on the stable 24VDC rail delivered by the DSQC604 to maintain accurate signal states. Upstream, the ABB DSQC651 analog I/O module processes continuous process variables — weld current feedback, torque readings, or vision system outputs — all of which require a noise-free power environment to preserve signal integrity.

The IRC5 controller communicates with plant-level SCADA systems and MES platforms via the ABB DSQC662 EtherNet/IP communication board, which draws its operating power directly from the DSQC604-supplied backplane. In multi-robot workcells, the IRC5 MultiMove configuration links several controllers through a shared Ethernet backbone, with each controller’s DSQC604 independently sustaining its local communication stack. This distributed power architecture ensures that a single controller’s power event does not propagate faults across the network.

For facilities running PROFIBUS-DP fieldbus topologies, the ABB DSQC667 PROFIBUS adapter board integrates with the IRC5 system to connect downstream remote I/O racks, variable frequency drives, and smart sensors into a unified control network. The DSQC604 provides the regulated power necessary for the DSQC667 to maintain cycle-accurate PROFIBUS timing, which is critical in high-speed press-tending or injection molding applications where communication jitter directly impacts part quality.

At the HMI layer, the ABB FlexPendant — connected to the IRC5 via the controller’s teach pendant interface — relies on the DSQC604’s power stability to maintain its real-time display of robot status, alarm logs, and program execution data. In remote monitoring scenarios, the IRC5’s OPC-UA server capability allows SCADA platforms such as Ignition, WinCC, or FactoryTalk to subscribe to live robot data streams, with the DSQC604 ensuring the controller remains online and communicating without interruption.

Edge computing gateways deployed alongside the IRC5 controller — such as those running MQTT brokers or REST API connectors — aggregate robot performance data for transmission to cloud-based analytics platforms. The DSQC604’s role in keeping the IRC5 controller continuously powered is therefore directly linked to the completeness and accuracy of the data reaching these higher-level systems. In predictive maintenance architectures, gaps in controller uptime translate directly into gaps in the vibration, temperature, and cycle-count datasets that machine learning models depend on for anomaly detection.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy robotic installations is the isolation of robot controller data from plant-wide information systems. Older IRC5 installations may rely on proprietary communication stacks or outdated fieldbus configurations that prevent seamless integration with modern SCADA, MES, or ERP platforms. The DSQC604, as the power foundation of the IRC5 system, enables the installation of updated communication option boards — including EtherNet/IP, PROFINET, and DeviceNet adapters — without requiring a full controller replacement.

By maintaining a reliable DSQC604 in service, plant engineers can upgrade the IRC5’s communication capabilities incrementally: adding an ABB DSQC688 PROFINET device board to connect the robot to a Siemens S7-1500 PLC network, or installing a DeviceNet master board to integrate with Allen-Bradley ControlLogix I/O systems. These upgrades transform previously isolated robot controllers into fully networked nodes within the plant’s automation hierarchy, enabling production line transparency, real-time OEE monitoring, and remote alarm management from a centralized control room.

For facilities managing multiple robot brands and communication protocols, the DSQC604-powered IRC5 can serve as a protocol bridge point when paired with third-party industrial gateways. Data from the IRC5 — including cycle times, fault codes, and I/O states — can be translated into Modbus TCP, MQTT, or OPC-UA formats for consumption by unified SCADA dashboards. This eliminates the data silos that typically exist between robotic automation islands and plant-level monitoring systems, enabling true end-to-end production visibility.

Remote diagnostics capabilities are similarly enhanced by a stable DSQC604. ABB’s RobotStudio remote monitoring tools and third-party condition monitoring platforms require continuous controller connectivity to deliver meaningful insights. Power supply degradation — often a precursor to controller failure — can be detected early through voltage monitoring at the DSQC604 output rails, allowing maintenance teams to schedule replacements during planned downtime rather than responding to unplanned failures.

Industrial Connectivity FAQ

Q1: Does the ABB DSQC604 support EtherNet/IP and PROFIBUS communication protocols?
The DSQC604 itself is a power supply unit and does not directly handle fieldbus communication. However, it powers the IRC5 controller’s communication option boards — including the DSQC662 (EtherNet/IP), DSQC667 (PROFIBUS-DP), and DSQC688 (PROFINET) — which provide full protocol support. The DSQC604 must be functioning correctly for any of these communication boards to operate reliably.

Q2: How does a failing DSQC604 affect network stability and communication latency in an IRC5 system?
A degraded DSQC604 can cause voltage sag on the IRC5 backplane, leading to intermittent communication errors on fieldbus networks, increased cycle times due to controller resets, and false alarm triggers in SCADA systems. In time-sensitive applications such as servo press control or vision-guided assembly, even brief power instability can result in communication timeouts that halt production. Replacing a suspect DSQC604 proactively is strongly recommended when voltage irregularities are detected.

Q3: Can the DSQC604 be used in IRC5 systems integrated with Siemens or Rockwell SCADA platforms?
Yes. The DSQC604 powers the IRC5 controller regardless of the upstream SCADA or PLC platform. IRC5 systems equipped with appropriate communication option boards can integrate with Siemens WinCC via OPC-UA, Rockwell FactoryTalk via EtherNet/IP, or Ignition SCADA via OPC-UA or Modbus TCP. The DSQC604 ensures the controller remains continuously powered and network-connected throughout these integrations.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the ABB DSQC604?
Every ABB DSQC604 unit shipped by ZYPLC undergoes functional pre-shipment testing to verify output voltage levels, load regulation performance, and connector integrity. All units are covered by a 12-month warranty from the date of shipment. In the event of a verified defect within the warranty period, ZYPLC provides replacement or repair support. Fast global shipping via DHL Express and FedEx International is available, with export documentation provided for customs clearance.
