ABB DSQC625 3HAC020464-001 Industrial Robot Power Supply for IRC5 Systems

ABB DSQC625 3HAC020464-001: Industrial Robot Power Supply for Intelligent Factory Data Links

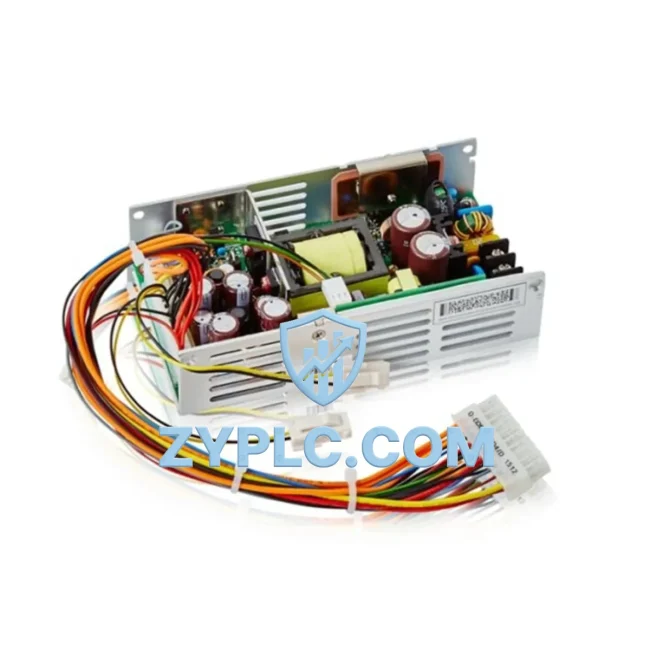

The ABB DSQC625 (3HAC020464-001) is a dedicated power supply module engineered for ABB’s IRC5 robot controller platform — the backbone of high-precision industrial automation in automotive, electronics, metal fabrication, and smart manufacturing environments. As a critical node in the robot controller’s internal power distribution architecture, the DSQC625 ensures stable, regulated voltage delivery to the controller’s computational and communication subsystems, directly supporting uninterrupted data flow between the robot arm, the IRC5 controller cabinet, and upstream SCADA/HMI systems.

In modern smart factories, every millisecond of power instability translates into communication dropout, motion fault, or production halt. The DSQC625 is designed to eliminate that risk — providing clean, conditioned power to the IRC5’s internal bus, enabling continuous real-time data exchange across the entire automation cell.

Network Communication Table

Connected Automation Data Flow

The ABB DSQC625 3HAC020464-001 sits at the heart of the IRC5 controller’s power architecture, and its reliability directly determines the integrity of the entire robot automation data chain. In a typical smart factory deployment, the IRC5 controller cabinet — powered and stabilized by the DSQC625 — communicates with the plant-level SCADA system via an ABB DSQC688 EtherNet/IP adapter or a DSQC679 PROFINET device module, enabling real-time robot status, cycle data, and fault diagnostics to flow upstream to the control room.

At the field level, the IRC5 controller interfaces with ABB IRB 6700 or IRB 2600 robot arms, where servo drives and axis computers — including the DSQC668 axis computer and DSQC645 drive unit — depend on the DSQC625’s stable power output to maintain synchronized motion control and encoder feedback. Any voltage fluctuation at the power supply level cascades directly into axis faults, communication timeouts, and emergency stops.

For facilities running mixed automation architectures, the IRC5 controller’s fieldbus gateway capability — enabled by modules such as the DSQC658 DeviceNet master/slave adapter — allows the robot cell to exchange I/O data with Siemens S7-series PLCs, Allen-Bradley ControlLogix controllers, or Mitsubishi MELSEC systems on the plant floor network. The DSQC625 ensures that these gateway modules remain continuously powered, preventing fieldbus communication interruptions that would otherwise isolate the robot cell from the broader production network.

Remote I/O panels connected to the IRC5 via PROFIBUS-DP or EtherNet/IP — such as ABB’s own DSQC652 digital I/O board or third-party Beckhoff EtherCAT terminals — rely on the controller’s internal power bus, regulated by the DSQC625, to maintain signal integrity for sensor inputs, gripper control outputs, and safety relay feedback. In welding, palletizing, and assembly applications, this I/O reliability is non-negotiable.

At the HMI layer, operators interact with the robot cell through the ABB FlexPendant (IRC5 teach pendant), which draws its operating power and communication link through the IRC5 controller. The DSQC625’s role in maintaining stable internal bus voltage ensures that the FlexPendant’s real-time display of robot position, program status, and alarm messages remains accurate and responsive — critical for both normal operation and fault recovery.

For plants deploying edge computing and IIoT connectivity, the IRC5 controller’s data output — robot cycle times, energy consumption, predictive maintenance signals — is aggregated by edge gateways such as the ABB Ability™ Edge Gateway or third-party devices like the Moxa MGate industrial protocol gateway, which then forward structured data to cloud-based MES or ERP platforms. The DSQC625 underpins this entire data pipeline by keeping the IRC5 controller’s communication subsystems continuously energized.

Solving Data Isolation in Industrial Robot Cells

One of the most persistent challenges in industrial robot integration is data isolation — robot cells that operate as closed islands, unable to share real-time performance data with plant-level SCADA, MES, or ERP systems. This isolation typically stems from power instability causing fieldbus communication resets, protocol incompatibility between the robot controller and plant network infrastructure, or aging power supply modules that introduce voltage noise into the controller’s communication circuits.

The ABB DSQC625 3HAC020464-001 directly addresses the power stability dimension of this problem. By replacing a degraded or failed power supply module with a tested, genuine DSQC625, maintenance teams restore the IRC5 controller’s ability to maintain continuous fieldbus communication — eliminating the sporadic DeviceNet or PROFINET dropouts that cause data gaps in SCADA historian records and trigger false alarms in plant monitoring dashboards.

For facilities pursuing production line transparency, a stable DSQC625 enables the IRC5 controller to sustain uninterrupted OPC-UA or EtherNet/IP data publishing to SCADA platforms such as Ignition, Wonderware, or Siemens WinCC, providing operators with live robot cycle counts, weld quality metrics, and predictive maintenance indicators without communication-induced data loss.

Remote diagnostics capabilities — including ABB’s RobotStudio remote monitoring and third-party IIoT diagnostic tools — depend on the IRC5 controller maintaining a stable network presence. A failing DSQC625 is a common root cause of intermittent remote access failures, where the robot controller drops off the plant network unpredictably. Replacing the DSQC625 restores network stability and enables continuous remote monitoring, reducing the need for on-site engineer visits and supporting predictive maintenance strategies.

For system expansion projects — adding new robot cells, integrating collaborative robots, or upgrading to ABB’s OmniCore controller platform — ensuring that existing IRC5 controllers are running with fully functional DSQC625 modules is a prerequisite for reliable multi-robot network coordination and synchronized production scheduling.

Industrial Connectivity FAQ

Q1: Will the ABB DSQC625 3HAC020464-001 cause communication delays in my IRC5 robot cell?
No. The DSQC625 is a power supply module, not a communication processor. Its function is to provide stable, regulated power to the IRC5 controller’s internal subsystems. A properly functioning DSQC625 eliminates power-induced communication instability, reducing — not causing — fieldbus communication delays and controller resets.

Q2: Is the DSQC625 compatible with all IRC5 controller variants and RobotWare versions?
The DSQC625 (3HAC020464-001) is designed for ABB IRC5 Single Cabinet and Dual Cabinet controllers running RobotWare 5.x and 6.x. It is compatible with the full range of ABB IRB robot models supported by the IRC5 platform. For OmniCore-based systems, please consult the applicable controller documentation or contact our technical team.

Q3: How do you ensure network stability after replacing the DSQC625?
Every DSQC625 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify output voltage regulation, load response, and internal bus compatibility. Upon installation, we recommend performing an IRC5 controller self-test and verifying fieldbus communication status via the FlexPendant system diagnostics menu to confirm stable network operation.

Q4: What warranty and after-sales support is provided with the ABB DSQC625?
All ABB DSQC625 3HAC020464-001 units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our technical team provides remote diagnostic support for installation and integration issues. Global delivery is available via DHL and FedEx Express, with typical lead times of 3–7 business days depending on destination.
