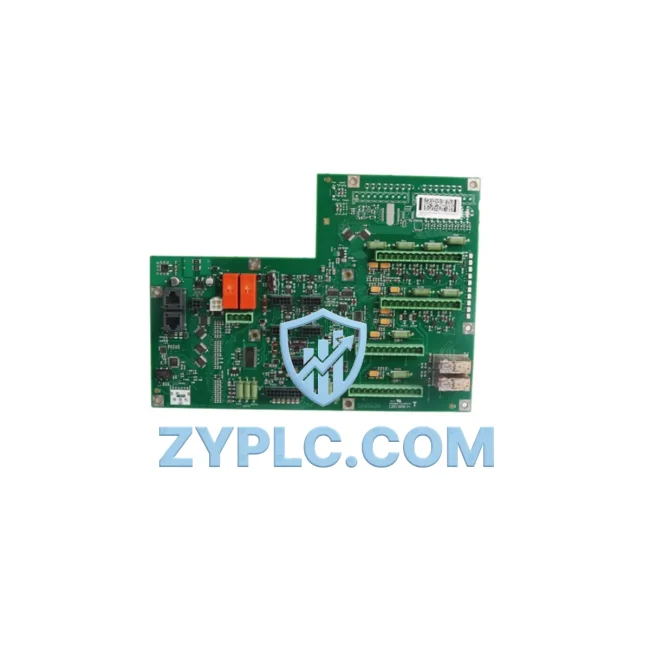

ABB DSQC643 IRC5 Axis Computer Board | Robot Controller

ABB DSQC643 IRC5 Axis Computer: Industrial Data Link for Smart Factory Robot Networks

The ABB DSQC643 is a high-performance Axis Computer Board engineered for the ABB IRC5 Robot Controller series, serving as the critical industrial network interface between multi-axis servo drives, field-level sensors, and upper-level SCADA/HMI supervisory systems. Designed for demanding smart factory environments, the DSQC643 delivers deterministic real-time data exchange, robust protocol bridging, and seamless integration across heterogeneous industrial communication architectures. Whether deployed in automotive body-in-white welding cells, precision assembly lines, or palletizing stations, this board ensures that every axis command, feedback signal, and diagnostic packet reaches its destination with zero tolerance for latency or data loss.

Network Communication Table

Connected Automation Data Flow

In a fully integrated smart factory cell, the ABB DSQC643 sits at the heart of the motion control data pipeline. Signal acquisition begins at the servo motor encoder level, where the ABB DSQC646 Drive Module captures real-time position and velocity feedback from each robot joint. This raw motion data is processed by the DSQC643 Axis Computer, which executes interpolation algorithms and issues corrected torque commands back to the drives within a single servo cycle — typically under 4 ms.

On the field network side, the DSQC643 communicates upstream through the IRC5 controller’s DSQC652 I/O Board, aggregating digital and analog signals from peripheral devices such as welding controllers, vision systems, and pneumatic valve islands. These consolidated I/O states are then forwarded via DeviceNet or PROFIBUS-DP to the plant-level PLC — commonly a Siemens S7-300/S7-400 or Allen-Bradley ControlLogix — which coordinates the robot cell with upstream conveyor systems and downstream quality inspection stations.

For SCADA and MES connectivity, the IRC5 controller pairs with an ABB DSQC639 Main Computer Board, which hosts the RobotWare runtime and exposes OPC-UA or Ethernet/IP data endpoints to the plant historian and Wonderware InTouch or Ignition SCADA platforms. Operators at the ABB FlexPendant HMI terminal receive live axis load, cycle time, and fault status data — all routed through the DSQC643’s real-time communication fabric.

Remote diagnostic capability is enabled through the IRC5’s DSQC604 Power Supply Unit and the integrated ABB Remote Service Gateway, which tunnels encrypted diagnostic telemetry over industrial Ethernet to ABB’s cloud monitoring infrastructure. This allows maintenance engineers to perform predictive fault analysis, firmware updates, and parameter backups without physical access to the robot cell — a critical capability for geographically distributed manufacturing sites.

Additional network nodes in a typical DSQC643-anchored architecture include the ABB DSQC656 Fieldbus Adapter for legacy PROFIBUS segment bridging, Moxa NPort industrial serial device servers for RS-232/RS-485 peripheral integration, and Phoenix Contact FL Switch industrial Ethernet switches providing managed Layer 2 connectivity between robot controllers, PLCs, and the plant backbone network. Each of these components relies on the DSQC643’s deterministic data scheduling to maintain synchronization across the entire automation cell.

Solving Data Isolation in Industrial Sites

Legacy robot installations frequently suffer from protocol fragmentation — IRC5 controllers running proprietary ABB RAPID motion buses that cannot natively exchange data with Siemens PROFINET or Rockwell EtherNet/IP plant networks. The ABB DSQC643 addresses this challenge by acting as the authoritative axis data concentrator within the IRC5 architecture, providing a single, consistent data interface that upstream gateway modules can translate into any required plant protocol.

Data silos are eliminated by centralizing all six-axis motion telemetry — position, velocity, torque, temperature, and fault codes — into a unified data stream that the IRC5 Main Computer can publish to OPC-UA servers, MQTT brokers, or REST API endpoints for MES and ERP consumption. This transforms previously opaque robot cells into fully transparent production assets visible on plant-wide dashboards.

Remote monitoring challenges are resolved through the DSQC643’s tight integration with the IRC5 service information system, which logs over 500 diagnostic parameters per axis cycle. Combined with the ABB Remote Service platform, maintenance teams can set threshold-based alarms for axis load, motor temperature, and gear backlash — receiving SMS or email alerts before a fault causes unplanned downtime.

Production line transparency is further enhanced by the DSQC643’s support for cycle time stamping and event logging, enabling OEE (Overall Equipment Effectiveness) calculations to be performed directly from robot controller data without additional hardware. System expansion is straightforward: additional IRC5 drive modules and I/O boards connect to the same backplane bus managed by the DSQC643, allowing robot cell capacity to scale from 6 to 9 axes with no changes to the network architecture.

All units supplied by ZYPLC undergo a comprehensive pre-shipment functional test protocol, including axis communication loop verification, protocol handshake validation, and 48-hour burn-in testing, backed by a 12-month warranty and in-stock availability for immediate global dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSQC643 support, and is it compatible with Siemens or Rockwell PLCs?
The DSQC643 operates on the ABB IRC5 internal backplane bus and supports DeviceNet and PROFIBUS-DP for field-level communication. Integration with Siemens S7 or Allen-Bradley ControlLogix PLCs is achieved through the IRC5 fieldbus adapter modules (e.g., DSQC656), which bridge the ABB motion network to the plant PLC network without requiring changes to the DSQC643 itself.

Q2: How does the DSQC643 ensure network stability and low latency in high-speed robot applications?
The DSQC643 uses a dedicated real-time operating system kernel with deterministic interrupt scheduling, ensuring axis command and feedback cycles complete within 4 ms regardless of network load. Hardware watchdog circuits automatically detect communication timeouts and trigger safe-state routines, preventing axis runaway in the event of a network fault.

Q3: Can the DSQC643 be integrated into an existing SCADA or HMI system without replacing the entire IRC5 controller?
Yes. The DSQC643 is a board-level replacement that slots into the existing IRC5 controller chassis. SCADA and HMI integration is handled at the IRC5 Main Computer level (DSQC639), which exposes OPC-UA and Ethernet/IP endpoints independently of the axis computer hardware. Replacing the DSQC643 does not require reconfiguration of SCADA data points or HMI screen bindings.

Q4: What does the 12-month warranty cover, and how are units tested before shipment?
Every ABB DSQC643 supplied by ZYPLC is tested through a multi-stage protocol: visual inspection, backplane bus communication verification, axis interpolation loop test, and 48-hour thermal cycling. The 12-month warranty covers hardware defects, communication failures, and component-level faults identified under normal operating conditions. Expedited replacement units are available from in-stock inventory to minimize production downtime.
