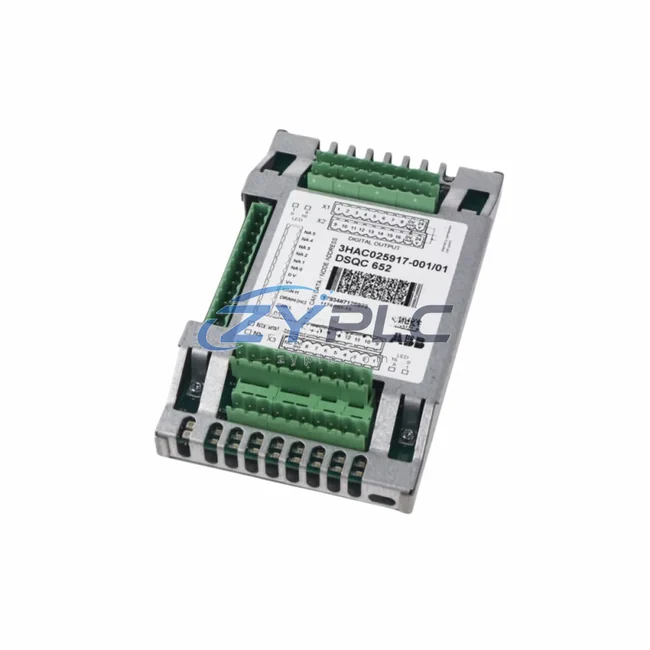

ABB DSQC652 3HAC025917-001 I/O Module IRC5: Control System and system integration

The ABB DSQC652 (3HAC025917-001) is a dedicated digital I/O module engineered for deployment within the IRC5 robot controller architecture. Rather than functioning as a standalone peripheral, this module occupies a precise position within a layered automation hierarchy — bridging the control layer, I/O layer, and fieldbus communication layer to deliver deterministic signal management, scalable I/O expansion, and long-term system maintainability across demanding industrial environments.

In modern robotic and process automation systems, the integrity of the I/O layer directly determines the reliability of the entire control architecture. The DSQC652 addresses this requirement by providing 16 digital inputs and 16 digital outputs through a DeviceNet fieldbus interface, enabling the IRC5 controller to communicate with field devices — sensors, actuators, safety relays, and end-of-arm tooling — with consistent cycle-time performance and minimal latency. Its role within the IRC5 cabinet is not incidental; it is a system-defined component that participates in the controller’s internal I/O bus topology alongside other DSQC-series modules.

Product Specification Table

System Compatibility Notes

The DSQC652 does not operate in isolation. Its value is realized through its integration with the broader IRC5 system architecture, where multiple DSQC-series modules collaborate to form a complete, redundant, and scalable control platform.

At the controller level, the DSQC651 (3HAC025784-001) — the companion digital I/O module — is frequently deployed alongside the DSQC652 to expand the total I/O count available to the IRC5 main computer. The DSQC639 (3HAC025562-001) main computer board serves as the central processing unit that coordinates all I/O transactions, motion planning, and program execution, while the DSQC662 (3HAC026253-001) fieldbus adapter extends DeviceNet communication to additional network segments or remote I/O stations.

Power distribution within the IRC5 cabinet is managed by the DSQC661 (3HAC026254-001) power supply unit, which provides regulated 24 VDC to the DSQC652 and other I/O modules. Stable power delivery is critical for maintaining signal integrity across all 32 I/O channels, particularly in high-cycle applications such as automotive body welding lines or palletizing systems.

For applications requiring analog signal processing — pressure transducers, flow meters, or temperature sensors — the DSQC355A analog I/O module complements the DSQC652’s digital capabilities, enabling a mixed-signal I/O architecture within a single IRC5 cabinet. Safety-rated I/O functions are handled by the DSQC643 (3HAC025338-001) safety I/O module, which interfaces with emergency stop circuits, safety light curtains, and dual-channel safety relays in compliance with PLd/SIL2 requirements.

At the human-machine interface layer, the FlexPendant (3HAC028357-001) provides the operator with real-time visibility into I/O states, program execution status, and system diagnostics — all of which depend on accurate data from the DSQC652’s I/O channels. For supervisory control and SCADA integration, the DSQC668 (3HAC031670-001) Ethernet/IP communication module bridges the IRC5 controller to plant-level networks, enabling the DSQC652’s I/O data to be consumed by upstream MES or DCS systems.

This coordinated architecture — spanning the DSQC639 main computer, DSQC661 power supply, DSQC651/652 digital I/O modules, DSQC643 safety I/O, DSQC355A analog I/O, DSQC662 DeviceNet adapter, DSQC668 Ethernet/IP module, and FlexPendant HMI — represents the complete IRC5 control stack within which the DSQC652 performs its defined system role.

Industrial Application Notes

The DSQC652 is deployed across a wide range of industrial sectors where the IRC5 platform is the standard robotic controller:

Automotive Manufacturing: In body-in-white welding cells, the DSQC652 manages discrete I/O signals between the IRC5 controller and weld gun solenoids, clamp actuators, part-present sensors, and conveyor interlocks. Its DeviceNet interface ensures deterministic communication with the cell PLC, typically a Siemens S7-300 or Allen-Bradley ControlLogix, via a DeviceNet scanner module.

Electronics Assembly: In PCB handling and component placement lines, the DSQC652 coordinates pick-and-place sequences by managing vacuum gripper solenoids, vision system trigger outputs, and conveyor stop signals. The module’s 16-output capacity supports complex multi-device sequencing without requiring additional I/O expansion hardware.

Palletizing and Packaging: In end-of-line palletizing systems, the DSQC652 interfaces with layer-forming conveyors, slip-sheet dispensers, and pallet transfer systems. Its integration with the IRC5 motion controller enables synchronized I/O events tied to robot path execution, reducing cycle time variability.

Power Generation and Utilities: In turbine maintenance and nuclear fuel handling applications, the DSQC652 supports remote I/O architectures where the IRC5 controller must interface with field instruments over DeviceNet, maintaining signal integrity in electrically noisy environments through proper cable shielding and node addressing.

Metal Fabrication and Foundry: In die-casting extraction and CNC machine tending applications, the DSQC652 manages high-cycle I/O operations — part ejection signals, door interlock outputs, and coolant control — in environments with elevated ambient temperatures and vibration, within the DSQC652’s rated operating envelope.

Product Compatibility FAQ

Q1: Is the DSQC652 compatible with both IRC5 Single Cabinet and IRC5 Compact controllers?
The DSQC652 (3HAC025917-001) is designed for the IRC5 Single Cabinet controller. While the IRC5 Compact shares the same software platform (RobotWare), its internal I/O bus architecture and cabinet form factor differ. Compatibility with IRC5 Compact should be verified against the specific RobotWare version and hardware revision in use. For IRC5 Compact applications, the DSQC651 or DSQC355A may be more appropriate depending on I/O type requirements. ZYPLC’s technical team can assist with compatibility verification prior to order.

Q2: How many DSQC652 modules can be installed in a single IRC5 system, and what are the DeviceNet node addressing requirements?
The IRC5 DeviceNet network supports up to 63 nodes per segment, with each DSQC652 occupying one node address. In practice, the number of DSQC652 modules is limited by the IRC5 I/O bus capacity and the available 24 VDC power budget from the DSQC661 power supply. Node addresses are configured via rotary switches on the module and must be unique within the DeviceNet segment. For systems requiring more than 8–10 I/O modules, a DeviceNet repeater or secondary power tap may be required to maintain signal integrity across the network segment.

Q3: What does the warranty terms confirmed during quotation cover, and what is the replacement process for a failed DSQC652 in a production environment?
ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. In the event of a module failure, ZYPLC provides advance replacement shipping to minimize production downtime — a critical consideration for automotive and electronics customers operating on just-in-time schedules. The DSQC652’s modular design allows hot-swap replacement without disturbing adjacent I/O modules, provided the IRC5 controller is placed in a safe state prior to module removal. ZYPLC maintains buffer stock of DSQC652 units to support rapid replacement requests globally.

ABB DSQC652 3HAC025917-001 I/O Module IRC5: Compatibility and Replacement Notes

The ABB DSQC652 (3HAC025917-001) is a 24-channel digital I/O module engineered specifically for the ABB IRC5 robot controller platform. Within a layered industrial automation architecture, this module occupies the critical I/O layer — the interface between the controller’s computational core and the physical process signals that drive actuators, sensors, and safety interlocks. Its role is not merely signal conversion; it is the structural backbone that determines how reliably a robot cell communicates with the broader control system, how quickly faults are detected, and how efficiently engineers can commission, expand, or maintain the installation over its operational lifetime.

In modern robot-based manufacturing cells, the IRC5 controller is rarely deployed in isolation. It operates as part of a coordinated system that typically includes the DSQC1000 main computer board, the DSQC662 fieldbus adapter for DeviceNet or PROFIBUS communication, the DSQC611 drive unit for axis power management, and the DSQC400 series power supply modules that deliver regulated 24 VDC to the I/O backplane. The DSQC652 integrates directly into this ecosystem via the IRC5 internal I/O bus, ensuring deterministic signal timing and eliminating the latency penalties associated with external fieldbus-connected I/O expansions.

From a system architecture perspective, the DSQC652 supports both sourcing and sinking configurations on its digital outputs, making it compatible with a wide range of PLC-side interfaces, safety relay modules, and pneumatic valve terminals. Engineers integrating this module into a cell that also includes a DSQC643 analog I/O module or a DSQC658 digital I/O module for expanded channel counts will find that the IRC5 backplane arbitration handles all modules transparently under the RobotWare I/O configuration framework — no additional gateway hardware is required.

Redundancy and fault tolerance are central considerations in high-availability robot installations. When the IRC5 controller is configured in a dual-cabinet or MultiMove topology — coordinating multiple robot arms through a shared DSQC1000 or DSQC1024 main computer — the DSQC652 participates in the system’s unified I/O namespace. This means that a single RobotStudio configuration file governs signal mapping across all cabinets, dramatically reducing the risk of cross-cabinet signal conflicts during commissioning and simplifying the audit trail for safety-certified installations operating under IEC 62061 or ISO 13849.

At the network layer, the DSQC652 complements fieldbus gateway modules such as the DSQC667 for EtherNet/IP or the DSQC669 for PROFINET, which handle upstream communication to supervisory PLCs, SCADA systems, or MES platforms. The digital I/O signals managed by the DSQC652 — end-of-travel limits, gripper confirmation, conveyor synchronization pulses, and safety door interlocks — are mapped through RobotWare’s I/O system to symbolic signal names that the fieldbus gateway exposes to the plant network. This architecture ensures that the HMI operator panel, whether a FlexPendant TP or a remote SCADA workstation, always receives accurate, real-time process state information without polling delays.

For maintenance engineers, the DSQC652 offers significant long-term operational advantages. Its modular form factor allows hot-swap replacement within the IRC5 cabinet without disturbing adjacent modules or requiring a full controller shutdown in non-safety-critical configurations. The module’s LED status indicators provide immediate visual diagnostics for each I/O channel, reducing mean time to repair (MTTR) in production environments where downtime costs are measured in thousands of dollars per hour. Combined with ABB’s RobotWare diagnostic logging, fault events on the DSQC652 are timestamped and stored in the controller’s event log, enabling root-cause analysis and predictive maintenance scheduling.

Inventory availability and supply chain continuity are equally important in long-lifecycle robot installations. The DSQC652 / 3HAC025917-001 remains a current, actively supported spare part within ABB’s IRC5 ecosystem, ensuring that facilities operating first-generation IRC5 controllers alongside newer IRC5 Compact or IRC5 Panel Mounted Controller variants can maintain a unified spare parts inventory. All units supplied by ZYPLC are tested under load conditions, verified against ABB’s original electrical specifications, and covered by a warranty terms confirmed during quotation — providing procurement teams with the confidence to plan multi-year maintenance contracts without single-source supply risk.

Product Specification Table

System Compatibility Notes

The DSQC652 achieves its full architectural value when deployed as part of a complete IRC5 control system rather than as a standalone replacement part. In a typical robot welding cell, the system architecture begins at the controller layer with the DSQC1000 main computer board, which executes RobotWare motion and I/O tasks. Power to the I/O backplane is supplied by the DSQC400 power supply module, which provides regulated 24 VDC with overcurrent protection. The DSQC652 occupies one or more backplane slots alongside the DSQC643 analog I/O module — handling weld current feedback and torch temperature signals — and the DSQC658 digital I/O module for additional discrete channel capacity.

At the network layer, a DSQC667 EtherNet/IP adapter or DSQC669 PROFINET adapter bridges the IRC5 I/O namespace to the plant’s supervisory PLC — typically a Siemens S7-1500 or Allen-Bradley ControlLogix — enabling the SCADA system to monitor gripper states, conveyor synchronization signals, and safety interlock status in real time. The operator interface is provided by the ABB FlexPendant TP, which displays I/O signal states mapped from the DSQC652 through RobotWare’s I/O configuration. In multi-robot cells using ABB’s MultiMove technology, a DSQC1024 dual-drive computer coordinates axis motion across two IRC5 cabinets, with the DSQC652 in each cabinet maintaining independent I/O namespaces that are unified at the RobotWare application level. Safety functions are implemented through a DSQC400 series safety relay module that monitors emergency stop chains and safety door contacts wired to the DSQC652’s input channels.

Industrial Application Notes

The DSQC652 is deployed across a broad spectrum of industrial automation environments where the IRC5 platform is the robot controller of choice. In automotive body-in-white manufacturing, the module manages spot welding gun confirmation signals, part presence sensors, and fixture clamp status — all of which must be processed with sub-millisecond determinism to maintain weld cycle times. In electronics assembly and semiconductor packaging lines, the DSQC652 handles pick-and-place confirmation, tray indexing signals, and vision system trigger outputs, where signal integrity directly affects yield rates.

In power generation and electrical substation applications, IRC5-based robot systems equipped with the DSQC652 perform cable termination, busbar assembly, and switchgear testing tasks, where the module’s optocoupler isolation protects the controller from high-voltage transients present in the surrounding electrical environment. Petrochemical and refinery installations use IRC5 robots for valve manipulation and pipe inspection in hazardous areas, with the DSQC652 interfacing to intrinsically safe barriers that condition field signals before they enter the controller cabinet.

In food and beverage packaging lines, the module coordinates with conveyor encoders, reject gate solenoids, and checkweigher interfaces, supporting high-throughput operations that demand continuous uptime. Metal fabrication and press tending applications rely on the DSQC652 to manage press stroke confirmation, part ejection signals, and die protection inputs — functions where a single missed signal can result in tooling damage worth tens of thousands of dollars. Across all these applications, the module’s proven reliability within the IRC5 ecosystem, combined with ZYPLC’s warranty terms confirmed during quotation and tested inventory, ensures that replacement cycles do not introduce unplanned production interruptions.

Product Compatibility FAQ

Q1: Is the DSQC652 (3HAC025917-001) compatible with all IRC5 controller variants, including the IRC5 Compact and IRC5 Panel Mounted Controller?
Yes. The DSQC652 uses the standard ABB IRC5 internal I/O bus interface, which is consistent across all IRC5 hardware variants — the full-size IRC5 cabinet, the IRC5 Compact, and the IRC5 Panel Mounted Controller. The module is configured identically in RobotWare regardless of the cabinet form factor, and no hardware adaptation is required. Engineers migrating from a full-size IRC5 to an IRC5 Compact installation can reuse the same DSQC652 units and RobotWare I/O configuration files without modification.

Q2: How many DSQC652 modules can be installed in a single IRC5 controller, and are there backplane slot limitations?
The IRC5 backplane supports up to 10 I/O modules in a standard configuration, with the exact slot allocation depending on the combination of digital and analog modules installed. Multiple DSQC652 units can occupy adjacent slots, and RobotWare automatically assigns unique unit numbers to each module during system startup. For installations requiring more than 10 I/O modules, ABB’s fieldbus-connected I/O expansion — using DSQC667 or DSQC669 adapters with external I/O nodes — provides virtually unlimited channel expansion without architectural constraints.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims on DSQC652 units supplied by ZYPLC?
The warranty terms confirmed during quotation covers manufacturing defects, electrical component failures, and functional non-conformance to ABB’s original specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the unit’s serial number, purchase order reference, and a description of the fault. ZYPLC will arrange return logistics and provide a replacement or repaired unit within the agreed lead time, minimizing production downtime for your facility.
