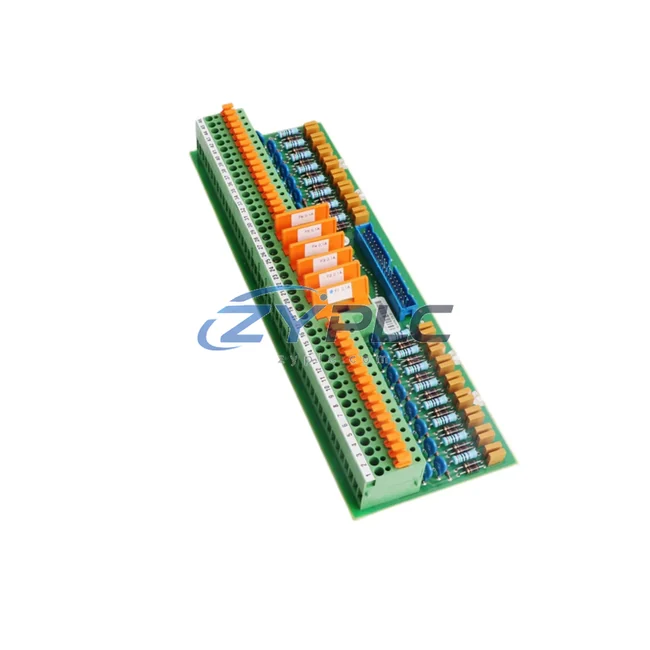

The ABB DSTA131 57120001-CV is a precision-engineered analog connection unit designed to serve as a critical interface layer within the ABB Advant OCS distributed control system architecture. Rather than functioning as a standalone component, this module occupies a defined role in the signal conditioning and I/O termination layer, bridging field instrumentation with the higher-level control and processing modules that govern plant-wide automation. In complex industrial environments — from continuous process plants to discrete manufacturing lines — the integrity of the connection layer directly determines the reliability of the entire control loop. The DSTA131 57120001-CV addresses this requirement with robust electrical design, standardized termination geometry, and full compatibility with the Advant OCS modular backplane ecosystem.

Understanding the DSTA131 57120001-CV requires viewing it within the broader Advant OCS system hierarchy. The Advant OCS platform organizes control functions across multiple layers: the controller layer (housing CPU modules such as the PM511 or PM864), the I/O layer (comprising analog and digital input/output modules), the communication layer (supporting PROFIBUS, MODBUS, and MasterBus protocols), the power supply layer (using dedicated PS modules), and the field termination layer where the DSTA131 57120001-CV operates. At this termination layer, the module receives raw analog signals from transmitters, sensors, and transducers, conditions them for upstream processing, and ensures that signal integrity is maintained across the full operating range of the installation.

Product Specification Table

System Compatibility Notes

The DSTA131 57120001-CV achieves its full value when integrated within a coordinated Advant OCS control cabinet. In a typical system configuration, the module is paired with analog input modules such as the DSAI130 or DSAI133, which handle signal acquisition from field transmitters. These I/O modules mount directly to the Advant OCS backplane — typically the DSBC172 or DSBC176 bus connection board — which provides both mechanical support and electrical continuity across the module rack. The DSTA131 57120001-CV connects to these I/O modules via the standardized termination interface, allowing field cables to be landed cleanly without disturbing the upstream electronics during maintenance or replacement activities.

At the controller level, the PM511V16 or PM864 processor modules manage the execution of control strategies, reading analog values from the I/O layer and issuing setpoints to analog output modules such as the DSAO120. The DSTA131 57120001-CV’s role in this chain is to ensure that field signals arrive at the I/O modules with minimal noise, correct polarity, and proper loop integrity. Power to the rack is supplied by dedicated SD821 or SD822 power supply modules, which maintain stable 24 VDC across all connected modules including the termination units. For installations requiring communication with supervisory systems, DSSB170 or CI520 communication interface modules handle PROFIBUS DP or MasterBus/90 connectivity, enabling the Advant OCS system to exchange data with SCADA platforms, historian servers, and higher-level MES systems.

In redundant architectures — common in power generation, oil and gas, and chemical processing applications — the DSTA131 57120001-CV supports dual-channel wiring configurations that allow seamless switchover between primary and backup I/O paths. This design philosophy, consistent across the Advant OCS platform, ensures that a single module failure does not interrupt process control. Engineers can replace the DSTA131 57120001-CV or its associated I/O module without shutting down the field loop, provided the system is configured for hot-swap operation. This capability significantly reduces planned maintenance windows and eliminates unplanned downtime caused by connection unit degradation over time.

Industrial Application Notes

The DSTA131 57120001-CV finds application across a wide range of industrial sectors where the Advant OCS platform has been deployed. In power generation and utilities, the module supports analog signal termination for turbine control loops, boiler instrumentation, and generator excitation monitoring systems, where signal accuracy and long-term stability are non-negotiable. In oil and gas processing and petrochemical plants, it serves as the field interface for pressure transmitters, flow meters, and temperature sensors integrated into safety instrumented systems and basic process control systems operating under IEC 61511 guidelines.

In water and wastewater treatment facilities, the DSTA131 57120001-CV enables reliable analog signal handling for pump control, chemical dosing, and level monitoring applications, where the Advant OCS system manages both continuous process control and sequential batch operations. Mining and mineral processing operations use the module within crusher control systems, conveyor monitoring loops, and flotation cell automation, where the harsh electrical environment demands robust termination hardware capable of withstanding induced noise and ground potential differences. In metallurgical and steel production plants, the module supports temperature and flow signal termination for furnace control, rolling mill automation, and cooling system management.

For packaging and discrete manufacturing lines that have integrated Advant OCS for process coordination, the DSTA131 57120001-CV provides the analog interface layer for tension control, speed regulation, and quality measurement systems. Across all these applications, the module’s compatibility with the existing Advant OCS infrastructure means that replacement or expansion projects can be executed without requiring controller reprogramming or backplane reconfiguration, preserving the engineering investment made in the original system design.

Product Compatibility FAQ

Q1: Is the DSTA131 57120001-CV compatible with all Advant OCS backplane configurations, and can it be used alongside newer ABB 800xA I/O modules?
The DSTA131 57120001-CV is designed specifically for the Advant OCS modular rack system and is fully compatible with DSBC172 and DSBC176 bus connection boards. It is not directly interchangeable with ABB 800xA S800 I/O termination units, which use a different mechanical and electrical interface standard. However, in migration projects where Advant OCS and 800xA systems coexist within the same control room, the DSTA131 57120001-CV can continue to serve its original I/O channels while new 800xA modules handle expanded or migrated control loops. Our technical team can advise on hybrid architecture configurations to support phased migration strategies.

Q2: What installation and commissioning considerations apply when replacing a DSTA131 57120001-CV in a live Advant OCS system?
Replacement of the DSTA131 57120001-CV in an operating system should follow the Advant OCS maintenance procedures outlined in ABB’s system documentation. In non-redundant configurations, the associated field loop must be placed in manual mode at the controller level before the termination unit is disconnected, preventing spurious output signals from reaching final control elements. In redundant I/O configurations, the backup channel can be activated prior to removal, allowing the replacement to proceed without process interruption. All field wiring connections should be documented before removal and verified against the as-built drawings after reinstallation. The warranty terms confirmed during quotation covers functional verification testing performed at our facility prior to dispatch, ensuring the replacement unit meets original ABB performance specifications.

Q3: How does sourcing the DSTA131 57120001-CV through ZYPLC support long-term maintenance planning for aging Advant OCS installations?
As the Advant OCS platform approaches end-of-life support from ABB, maintaining a reliable supply of critical termination and I/O modules becomes a strategic priority for plant operators. ZYPLC maintains inventory of DSTA131 57120001-CV units and related Advant OCS components, providing a consistent supply source for both emergency replacements and planned maintenance stock. Each unit supplied carries a warranty terms confirmed during quotation and undergoes functional testing to confirm electrical integrity and system integration compatibility within the target system architecture. This approach supports long-term asset management strategies, allowing facilities to extend the operational life of their Advant OCS installations without compromising control system reliability or process safety.
