ABB DSTA171 3BSE018311R1 Industrial Network Interface for AC800M Systems

ABB DSTA171 3BSE018311R1: Industrial Data Link for AC800M Smart Factory Networks

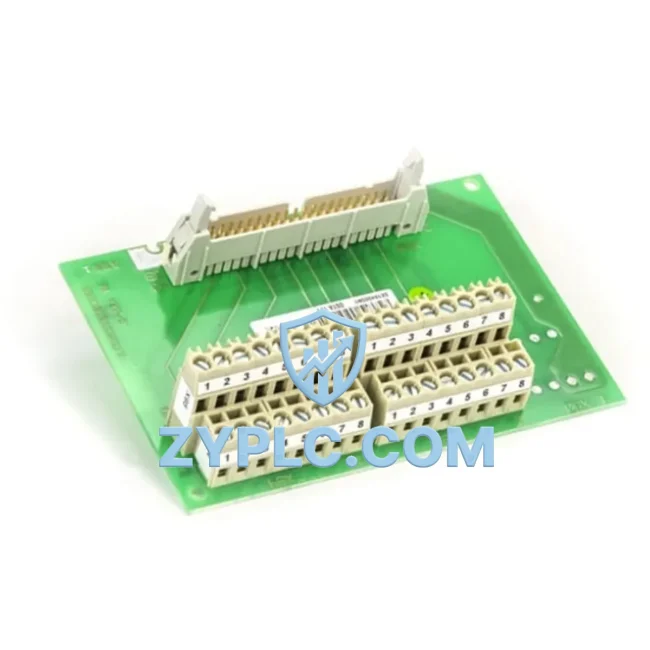

The ABB DSTA171 3BSE018311R1 Connection Unit Module is a precision-engineered industrial network interface designed for seamless integration within ABB’s AC800M Distributed Control System (DCS) architecture. As a critical node in the S800 I/O communication bus, the DSTA171 bridges field-level devices — including sensors, actuators, and remote I/O stations — with the AC800M controller platform, enabling deterministic, real-time data exchange across the entire automation network. Whether deployed in continuous process industries, power generation, oil and gas, or advanced discrete manufacturing, this module delivers the connectivity backbone that modern smart factories demand.

At ZYPLC, we maintain verified in-stock inventory of the ABB DSTA171 3BSE018311R1, backed by a 12-month warranty and full pre-shipment functional testing. Every unit undergoes outgoing inspection to confirm communication integrity before dispatch, ensuring your production line receives a module that performs from day one.

Network Communication Table

Connected Automation Data Flow

In a fully integrated AC800M control architecture, the DSTA171 3BSE018311R1 serves as the physical and logical gateway between the controller’s processing core and the distributed field network. Data originates at the sensor layer — pressure transmitters, flow meters, temperature probes, and discrete limit switches — where raw analog and digital signals are conditioned and digitized by ABB S800 I/O modules such as the AI810 analog input module and the DI810 digital input module. These I/O modules communicate upstream through the S800 I/O bus, with the DSTA171 acting as the connection unit that anchors this bus segment to the AC800M controller.

The ABB PM864A or PM866 processor module within the AC800M rack receives structured process data from the DSTA171, executing control logic at scan rates optimized for process-critical applications. Simultaneously, the controller pushes setpoints and command signals back downstream through the same data path — closing the control loop with sub-millisecond determinism. For applications requiring extended reach, the DSTA171 supports connection to ABB TB820V2 remote I/O bus extenders, allowing field devices located hundreds of meters from the control cabinet to remain tightly integrated within the same logical network segment.

At the supervisory layer, ABB System 800xA SCADA and HMI platforms poll the AC800M controller via OPC-DA or OPC-UA communication paths, aggregating real-time process variables — flow rates, tank levels, motor speeds, valve positions — into operator displays and historian databases. The DSTA171’s role in maintaining a clean, low-latency I/O bus directly impacts the quality of data presented at the SCADA level: any communication fault at the connection unit layer propagates immediately as an alarm condition in the 800xA environment, enabling operators to isolate faults before they escalate to process upsets.

For drive integration, ABB ACS880 variable frequency drives connected via PROFIBUS DP or Ethernet/IP gateways feed speed feedback and torque data into the same AC800M control loop, with the DSTA171 ensuring that the I/O bus remains synchronized with the drive network’s update cycle. In safety-instrumented applications, the DSTA171 works alongside ABB DSDO115A digital output modules and safety relay interfaces to maintain SIL-rated signal paths between the controller and final control elements.

Edge computing nodes — such as ABB-compatible industrial PCs running ABB Ability™ Edge software — tap into the AC800M’s data stream via the OPC-UA server embedded in the controller, enabling local analytics, predictive maintenance algorithms, and condition monitoring without burdening the primary control network. The DSTA171’s stable, high-integrity bus connection is the foundation that makes this edge data pipeline reliable.

Solving Data Isolation in Industrial Sites

Legacy industrial sites frequently suffer from fragmented automation architectures: islands of PLCs, standalone HMI panels, and proprietary field networks that cannot exchange data without manual intervention. The ABB DSTA171 3BSE018311R1 directly addresses this challenge within the AC800M ecosystem by providing a standardized, high-reliability connection point that unifies remote I/O, field instruments, and the DCS controller into a single coherent data domain.

Protocol heterogeneity is one of the most persistent barriers to plant-wide transparency. Sites that have evolved over decades may combine HART-enabled transmitters, PROFIBUS DP drives, Modbus RTU legacy devices, and newer PROFINET instruments — all of which must ultimately report into a common SCADA historian. The DSTA171, as part of the AC800M platform, supports gateway configurations that normalize these diverse protocol streams into the S800 I/O bus data model, eliminating the data silos that prevent operators from seeing a unified production picture.

Remote monitoring and diagnostics are equally transformed. With the DSTA171 maintaining a stable I/O bus connection, the AC800M controller can expose full device-level diagnostics — module health, communication error counters, signal quality indicators — to the 800xA SCADA system and, via secure remote access solutions, to engineering teams located off-site. This capability reduces mean time to repair (MTTR) by enabling remote fault isolation before a technician is dispatched to the field, a critical advantage in geographically distributed or hazardous-area installations.

Production line transparency — the ability to track OEE, batch traceability, and energy consumption in real time — depends on the integrity of the data path from sensor to enterprise system. The DSTA171 ensures that this path remains unbroken, supporting the continuous data flow that MES and ERP integration layers require. System expansion is equally straightforward: additional S800 I/O modules can be added to the bus segment anchored by the DSTA171 without reconfiguring the controller’s communication stack, making capacity upgrades non-disruptive to ongoing production.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSTA171 3BSE018311R1 support?
The DSTA171 operates natively on the ABB S800 I/O bus protocol within the AC800M DCS architecture. The AC800M controller platform supports gateway configurations to PROFIBUS DP, Modbus, and OPC-UA, allowing the DSTA171’s I/O bus segment to exchange data with broader plant networks and SCADA systems.

Q2: Is the DSTA171 compatible with both older and newer AC800M controller revisions?
Yes. The DSTA171 3BSE018311R1 is designed for compatibility across the AC800M controller family, including PM864A and PM866 processor modules. For specific firmware revision compatibility, ZYPLC’s technical team can provide pre-sale verification based on your existing system configuration.

Q3: How does ZYPLC ensure network stability and communication integrity before shipment?
Every ABB DSTA171 3BSE018311R1 unit shipped by ZYPLC undergoes pre-shipment functional testing that verifies bus communication, connector integrity, and module identification. Units that do not pass outgoing inspection are quarantined and not dispatched. All shipped units are covered by a 12-month warranty from the date of delivery.

Q4: Can the DSTA171 support system expansion without disrupting existing I/O bus segments?
Yes. The S800 I/O bus architecture supported by the DSTA171 allows additional I/O modules to be added to the bus segment incrementally. Expansion does not require reconfiguration of the DSTA171 itself, and the AC800M controller’s I/O configuration can be updated online in many cases, minimizing production interruption during capacity upgrades.
