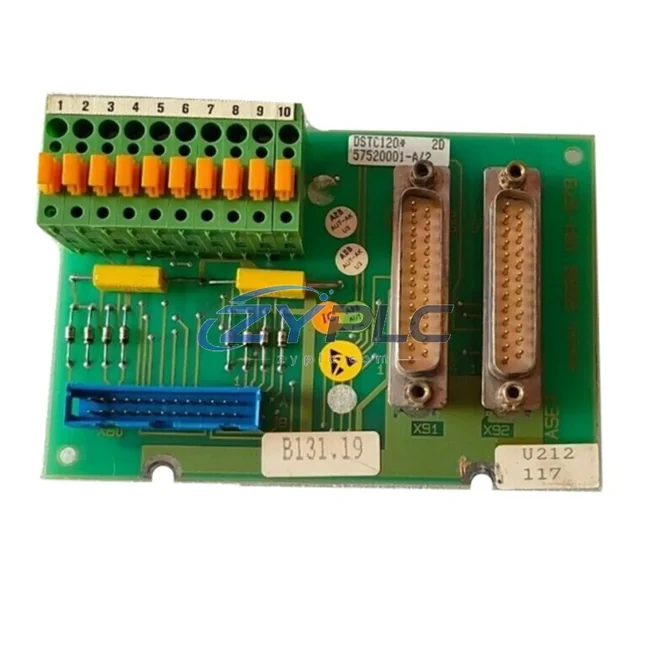

ABB DSTC120 57520001-A Communication for Advant/DCS

ABB DSTC120 57520001-A Communication for Advant/DCS

The ABB DSTC120 57520001-A is a dedicated communication module engineered for deployment within ABB’s Advant Controller and distributed control system (DCS) architectures. Rather than functioning as a standalone component, the DSTC120 57520001-A is designed to serve as a critical communication bridge within a layered automation hierarchy — connecting the control layer, I/O subsystems, field networks, and supervisory interfaces into a coherent, high-availability control platform. Its role in the system is to ensure deterministic data exchange, reduce latency across process loops, and maintain signal integrity under demanding industrial conditions including high electromagnetic interference, wide temperature ranges, and continuous 24/7 operation.

In modern industrial automation, the reliability of a control system is only as strong as its communication backbone. The DSTC120 57520001-A addresses this by providing stable, protocol-consistent data routing between the Advant Controller CPU modules — such as the PM511 and PM510 processor units — and the downstream I/O layers managed by S800 I/O modules or TB820 Modulebus optical links. This system integration capability ensures that the module does not merely pass data, but participates actively in the system’s logical architecture, supporting coordinated control across multiple process segments.

From an engineering perspective, the DSTC120 57520001-A is particularly valuable in architectures where communication redundancy and fault tolerance are non-negotiable. When paired with redundant CPU configurations and dual-channel fieldbus arrangements, the module contributes to a system design that can sustain process continuity even during partial hardware failures. This makes it well-suited for critical applications in power generation, petrochemical processing, water treatment, and metallurgical operations where unplanned downtime carries significant operational and safety consequences.

The module’s compatibility with ABB’s Advant OCS (Open Control System) platform means it can be integrated into both greenfield installations and brownfield upgrade projects without requiring wholesale replacement of existing infrastructure. Engineers working on system expansions can introduce the DSTC120 57520001-A alongside existing CI522 communication interface modules, DSBC172 bus connection units, and DSMB176 Modulebus modules, preserving the existing control architecture while extending its capacity and communication reach.

For system integrators managing multi-vendor environments, the DSTC120 57520001-A’s adherence to ABB’s internal communication standards ensures predictable behavior within mixed-generation control cabinets. When installed in the same rack as DSDO115 digital output modules, DSDI110 digital input modules, or DSAI130 analog input modules, the communication module maintains consistent scan cycle performance, supporting the high-throughput data demands of process-intensive industries. The module’s compact form factor and DIN-rail or backplane mounting options further simplify cabinet layout and cable management during commissioning.

Long-term maintenance efficiency is another key advantage of the DSTC120 57520001-A within an established Advant DCS environment. Because the module uses standardized ABB connector interfaces and follows the same firmware update pathways as other Advant-series components, maintenance teams can perform diagnostics, replacements, and configuration changes without specialized tooling beyond the standard ABB Engineer’s Workbench or Control Builder software environment. This reduces mean time to repair (MTTR) and supports predictive maintenance strategies that are increasingly central to modern industrial asset management.

All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, ensuring that your investment in control system infrastructure is protected. Our inventory is sourced from verified supply chains, and each module undergoes functional verification prior to dispatch. With export shipping options available and dedicated pre-sales technical support, ZYPLC is positioned to support both urgent replacement requirements and planned system expansion projects.

Product Specification Table

System Compatibility Notes

The DSTC120 57520001-A achieves its full potential when deployed as part of a coordinated Advant DCS architecture. At the control layer, it interfaces directly with ABB PM511 or PM510 CPU modules, which execute the process control logic and rely on the communication module to relay I/O data with minimal cycle-time overhead. The power layer, typically served by SS822 or SS823 redundant power supply modules, feeds the subrack backplane, ensuring that the DSTC120 57520001-A and its neighboring modules receive stable, conditioned DC power even during grid fluctuations.

At the I/O layer, the module coordinates with DSDI110 digital input modules and DSDO115 digital output modules to aggregate field signals from sensors, actuators, and protective relays. Analog process variables — temperature, pressure, flow — are handled by DSAI130 analog input modules, whose data streams pass through the communication module on their way to the CPU for PID loop processing. For installations requiring optical isolation and extended Modulebus reach, the TB820 Modulebus optical port module is commonly deployed alongside the DSTC120 57520001-A to extend the I/O network across larger physical distances within the plant.

At the network layer, the Advant DCS architecture may incorporate CI522 communication interface modules to bridge the internal Advant bus with external PROFIBUS DP or MasterBus 300 networks, enabling integration with third-party field devices, variable frequency drives, and remote I/O stations. The DSTC120 57520001-A’s stable internal communication performance is a prerequisite for reliable data exchange at this network boundary. For human-machine interface connectivity, ABB OP series operator panels or third-party SCADA systems connect to the supervisory layer via the Advant MMS (Manufacturing Message Specification) or OPC server interfaces, with the DSTC120 57520001-A supporting the underlying data pipeline that feeds these displays.

Industrial Application Notes

The DSTC120 57520001-A is deployed across a wide range of process-intensive industries where the Advant DCS platform has established a long operational track record. In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the module supports boiler control, turbine governor loops, and auxiliary system monitoring, where communication reliability directly affects plant safety and grid stability. In petrochemical and refinery environments, it is integrated into distillation column control, reactor temperature management, and compressor surge protection systems, where millisecond-level communication latency can influence product quality and process safety.

In water and wastewater treatment plants, the DSTC120 57520001-A enables centralized monitoring of pump stations, chemical dosing systems, and filtration processes across geographically distributed sites connected via the Advant DCS backbone. Mining and metallurgical operations use the module within ore processing lines, smelter control systems, and conveyor automation architectures, where the harsh electromagnetic environment demands robust, shielded communication hardware. In packaging and discrete manufacturing lines, the module supports high-speed I/O scanning for machine sequencing, quality inspection triggers, and production line synchronization, contributing to overall equipment effectiveness (OEE) improvements.

Across all these applications, the DSTC120 57520001-A’s system integration capability — its ability to function as a coherent participant in the broader control architecture rather than an isolated component — is the defining characteristic that makes it a preferred choice for system engineers managing long-lifecycle DCS installations.

Product Compatibility FAQ

Q1: Is the DSTC120 57520001-A compatible with both older and newer generations of the ABB Advant Controller platform?
A: Yes. The DSTC120 57520001-A is designed for the ABB Advant OCS platform and is compatible with Advant Controller 110, 160, and 450 series configurations. It can coexist in the same subrack with other Advant-series communication and I/O modules, making it suitable for both legacy system maintenance and phased modernization projects. Engineers should verify subrack slot assignments and firmware revision compatibility using ABB’s system configuration documentation prior to installation.

Q2: Can the DSTC120 57520001-A be used in a redundant communication architecture, and what additional components are required?
A: The module supports deployment in redundant Advant DCS configurations when paired with a redundant CPU module set (e.g., dual PM511 units) and a dual-bus Modulebus topology using TB820 optical port modules for physical separation. Redundancy switchover behavior is managed at the CPU level, and the DSTC120 57520001-A participates in this architecture by maintaining consistent bus communication state. Consult ABB’s redundancy configuration guidelines and your system’s FAT documentation to confirm the specific redundancy scheme applicable to your installation.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover, and what is the process for warranty claims?
A: The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions as specified in ABB’s product documentation. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the module’s rated environmental parameters. To initiate a warranty claim, contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with your order reference and a description of the observed fault. ZYPLC will coordinate return logistics and provide a replacement or repaired unit within the agreed service timeline.
