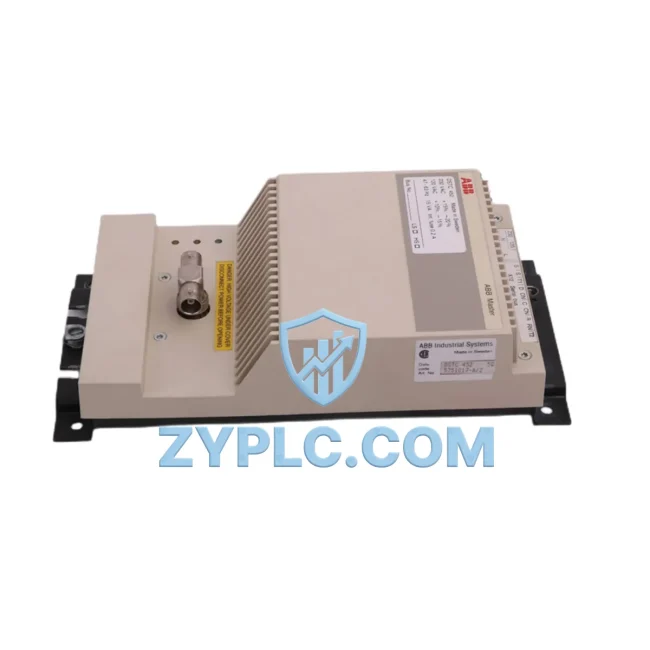

ABB DSTC452 5751017-A Analog Output Board for Advant Controller Systems

ABB DSTC452 5751017-A: Industrial Data Link for Advant Controller DCS Networks

The ABB DSTC452 5751017-A is a precision-engineered Analog Output Board designed for seamless integration within ABB’s Advant Controller distributed control system (DCS) architecture. As a critical node in the industrial data chain, this module bridges the gap between digital control logic and physical field devices — converting digital command signals into accurate analog outputs that drive actuators, control valves, variable frequency drives (VFDs), and process instruments across demanding manufacturing and process automation environments.

In a modern smart factory, the data flow begins at the sensor layer — thermocouples, pressure transmitters, and flow meters feed real-time process values into the field bus network. The DSTC452 5751017-A sits at the heart of this architecture, receiving setpoint commands from the Advant Controller’s central processing unit and translating them into 4–20 mA or 0–10 V analog signals that directly govern downstream field equipment. This closed-loop signal path ensures that SCADA systems and HMI workstations receive accurate feedback, enabling operators to monitor, adjust, and optimize production processes without latency or data loss.

Network Communication Table

Connected Automation Data Flow

Understanding how the ABB DSTC452 5751017-A fits into a complete industrial automation architecture is essential for system integrators and plant engineers. In a typical Advant Controller deployment, the data flow originates at the I/O layer. Analog input boards such as the ABB DSAI130 collect raw sensor signals — temperature, pressure, flow — and pass them through the Advant Fieldbus 100 (AF 100) backplane to the controller’s CPU module, such as the ABB DSPC172 or DSPC110 processor board. The controller executes the control algorithm and issues output commands, which are then routed to the DSTC452 5751017-A analog output board for conversion into field-level signals.

These analog output signals directly command downstream devices: ABB ACS series variable frequency drives (VFDs) receive speed reference signals, pneumatic control valves respond to 4–20 mA positioner commands, and process heaters are regulated via analog power controllers. At the same time, the DSTC452 5751017-A‘s output data is mirrored back to the SCADA layer — platforms such as ABB System 800xA or third-party SCADA solutions connected via OPC-DA/OPC-UA gateways — where operators on HMI terminals can visualize real-time output states, configure alarm thresholds, and initiate remote diagnostic routines.

For plants integrating legacy Advant systems with modern Ethernet-based networks, protocol gateway modules such as the ABB CI854 PROFIBUS DP communication interface or third-party Modbus TCP/PROFIBUS gateways bridge the AF 100 fieldbus to higher-level plant networks. Remote I/O stations connected via ABB S800 I/O modules extend the reach of the control system to distributed field cabinets, while edge computing gateways aggregate data from multiple Advant controllers for cloud-based analytics and predictive maintenance platforms. The DSTC452 5751017-A is a foundational component in this layered connectivity architecture, ensuring that control commands are faithfully executed at the field level with the precision and reliability that process industries demand.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the inability to share real-time process data across different control systems, protocols, and network layers. Legacy DCS platforms like the ABB Advant Controller were designed for reliability and determinism, but their proprietary fieldbus architectures can create barriers to integration with modern SCADA platforms, MES systems, and cloud-based analytics tools.

The ABB DSTC452 5751017-A addresses this challenge by providing a stable, high-accuracy analog output interface that remains compatible with both legacy field devices and modern signal conditioners. When paired with protocol conversion gateways — such as PROFIBUS-to-Modbus TCP bridges or OPC-UA servers — the analog signals generated by the DSTC452 5751017-A can be digitized, tagged, and transmitted to enterprise-level systems, breaking down data silos and enabling full production line transparency.

Remote monitoring becomes achievable when the Advant Controller’s I/O data — including the output states of the DSTC452 5751017-A — is aggregated by an edge gateway and published to a centralized SCADA or historian platform. Alarm management systems can then trigger notifications based on output deviation thresholds, while remote diagnostic tools allow engineers to assess module health, verify signal integrity, and plan preventive maintenance without requiring physical access to the control cabinet. This capability is especially valuable in geographically distributed plants, offshore facilities, and critical infrastructure sites where downtime costs are high and on-site engineering resources are limited.

System expansion is equally straightforward: additional DSTC452 5751017-A boards can be installed in available Advant Controller rack slots to increase analog output capacity, supporting phased plant expansions without requiring a full DCS migration. This scalability, combined with the module’s proven reliability in harsh industrial environments, makes it a preferred choice for plant engineers seeking to extend the operational life of their Advant Controller investments while progressively modernizing their automation infrastructure.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSTC452 5751017-A support?
The DSTC452 5751017-A operates as an analog output board within the ABB Advant Controller DCS, communicating via the Advant Fieldbus 100 (AF 100) internal backplane. At the field device level, it outputs standard 4–20 mA and 0–10 V DC analog signals compatible with HART-enabled instruments, pneumatic positioners, and VFD analog inputs. Integration with PROFIBUS-DP, Modbus TCP, or OPC-UA networks is achievable through dedicated protocol gateway modules.

Q2: How is network stability and signal integrity ensured in Advant Controller deployments?
The Advant Controller architecture is designed for deterministic, real-time control with high noise immunity. The DSTC452 5751017-A incorporates galvanic isolation and signal conditioning to maintain output accuracy in electrically noisy industrial environments. Regular firmware updates, redundant power supply configurations, and periodic calibration routines further ensure long-term network stability and signal integrity.

Q3: Can the DSTC452 5751017-A be integrated with modern SCADA and HMI systems?
Yes. While the DSTC452 5751017-A is a native Advant Controller module, its output data can be exposed to modern SCADA platforms — including ABB System 800xA, Wonderware, and Ignition — via OPC-DA/OPC-UA servers or protocol gateways. HMI terminals connected to the SCADA network can display real-time analog output values, configure setpoints, and receive alarm notifications based on output deviation thresholds.

Q4: What quality assurance and warranty coverage is provided for the DSTC452 5751017-A?
Every ABB DSTC452 5751017-A supplied by ZYPLC undergoes pre-shipment functional testing and visual inspection to verify module integrity and output accuracy. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch via DHL or FedEx international express, with full export documentation provided. For volume orders or urgent requirements, contact our technical sales team for lead time confirmation and competitive pricing.
