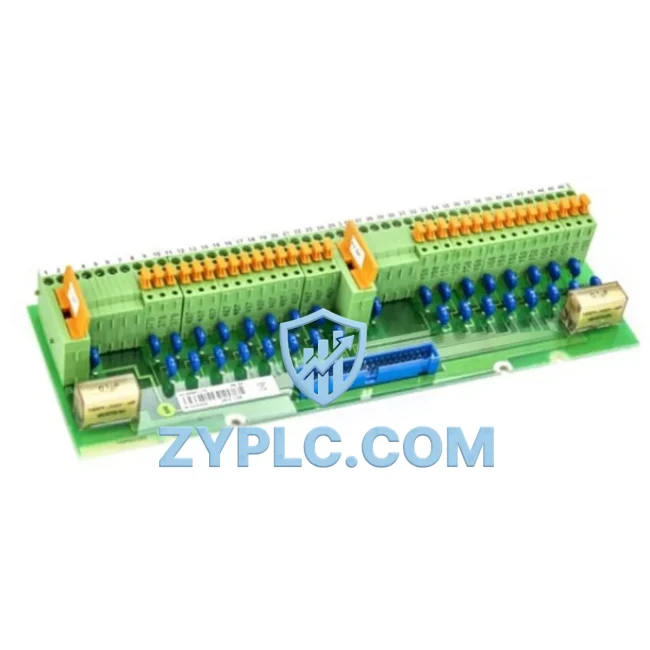

ABB DSTD110A 57160001-TZ Industrial Network Interface for AC800M Systems

ABB DSTD110A 57160001-TZ: Industrial Data Link for AC800M Smart Factory Networks

The ABB DSTD110A 57160001-TZ is a high-reliability digital output card engineered for the ABB AC800M controller platform — one of the most widely deployed distributed control systems in process automation, power generation, and heavy industry. Designed to bridge the gap between field-level actuators and upper-layer control networks, this module plays a critical role in the industrial data chain: from signal conditioning at the I/O layer, through protocol-compliant transmission across the control bus, to real-time visibility in SCADA and HMI environments.

In modern smart factory architectures, the integrity of every output signal directly impacts production continuity. The DSTD110A 57160001-TZ delivers deterministic digital output switching with the electrical isolation and noise immunity required in high-interference industrial environments — including motor control centers, switchgear panels, and distributed field cabinets.

Network Communication Table

Connected Automation Data Flow

In a fully integrated AC800M control architecture, the DSTD110A 57160001-TZ sits at the heart of the output execution layer. Field commands originate from the ABB PM866 or PM891 processor module, which processes logic and issues output instructions over the internal Modulebus. The DSTD110A receives these commands and drives downstream actuators — solenoid valves, relay coils, motor starters, and indicator lamps — with precise timing and electrical isolation.

Upstream, the AC800M system communicates with plant-level SCADA platforms via the ABB CI858 PROFIBUS DP communication interface, enabling real-time data exchange between the controller and supervisory systems such as ABB System 800xA or third-party SCADA platforms running on Ethernet/IP or Modbus TCP. The CI854 Ethernet interface module further extends connectivity to OPC-UA-based historian servers and MES platforms, ensuring that every output state change is logged and traceable.

For remote I/O expansion in distributed plant layouts, the DSTD110A integrates seamlessly with the ABB S800 I/O family, including the AI810 analog input module and DI810 digital input module, forming a complete I/O cluster that feeds both process data and status signals back to the controller. In multi-loop control scenarios, the ABB AO810 analog output module works in parallel with the DSTD110A to manage both discrete and continuous control outputs within the same rack.

At the HMI layer, operator panels such as the ABB CP600 series HMI or third-party Weintek and Siemens TP series panels connect to the AC800M via PROFIBUS or Ethernet, displaying real-time output states driven by the DSTD110A. Alarm conditions — such as output overcurrent or field device fault — are propagated through the data chain to the SCADA alarm management system within milliseconds, enabling rapid operator response.

For edge computing and remote diagnostics, the DSTD110A’s output status data can be forwarded through an industrial edge gateway (such as the ABB Edge Connect or compatible Moxa MGate series protocol converter) to cloud-based asset management platforms, supporting predictive maintenance workflows and remote commissioning without physical site access.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where field devices, PLCs, DCS controllers, and SCADA systems speak different communication languages, creating data silos that prevent plant-wide visibility. The ABB DSTD110A 57160001-TZ, as part of the AC800M ecosystem, directly addresses this challenge.

By operating natively on the ABB Modulebus and interfacing with PROFIBUS DP and Modbus RTU at the system boundary, the DSTD110A enables seamless protocol bridging between field-level binary signals and network-level data frames. This eliminates the need for standalone protocol converters in many applications, reducing wiring complexity and potential failure points.

In brownfield retrofit projects — where legacy Advant OCS or MOD 300 systems are being upgraded to modern AC800M platforms — the DSTD110A provides backward-compatible I/O mapping, preserving existing field wiring while enabling new SCADA integration. This dramatically reduces migration costs and downtime risk.

For production line transparency, every output channel state is continuously monitored and reported to the controller’s diagnostic register, making it possible to detect field device failures, wiring faults, or load anomalies before they escalate into unplanned shutdowns. Remote diagnostic access via the CI854 Ethernet module allows maintenance engineers to interrogate output states from the control room or remotely via VPN — without interrupting production.

System scalability is another key advantage: the AC800M rack architecture supports hot-swap module replacement and online I/O expansion, meaning additional DSTD110A cards can be added to the system without controller restart, supporting phased capacity expansion in growing manufacturing facilities.

All units supplied by ZYPLC are sourced from verified channels, undergo pre-shipment functional testing, and are covered by a 12-month warranty. Global logistics via DHL and FedEx ensure fast delivery to industrial sites worldwide, with full export documentation for customs clearance.

Industrial Connectivity FAQ

Q1: What communication protocols does the ABB DSTD110A 57160001-TZ support?
The DSTD110A operates on the ABB Modulebus for internal rack communication within the AC800M system. At the system boundary, it integrates with PROFIBUS DP via the CI858 interface module and supports Modbus RTU through compatible gateway modules. For Ethernet-based SCADA connectivity, the CI854 module provides OPC-UA and Modbus TCP bridging.

Q2: Is the DSTD110A 57160001-TZ compatible with third-party SCADA and HMI systems?
Yes. The AC800M platform, which hosts the DSTD110A, supports open communication standards including PROFIBUS DP, Modbus RTU/TCP, and OPC-UA. This enables integration with major SCADA platforms such as Wonderware, Ignition, Inductive Automation, and Siemens WinCC, as well as a wide range of HMI panels from third-party manufacturers.

Q3: How does ZYPLC ensure the quality and reliability of the DSTD110A before shipment?
Every DSTD110A 57160001-TZ unit supplied by ZYPLC undergoes pre-shipment functional verification, including output channel continuity testing and visual inspection for component integrity. Units are sourced from verified supply channels and backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q4: Can the DSTD110A be added to an existing AC800M system without shutting down the controller?
The AC800M platform supports online I/O expansion in many configurations, allowing additional I/O modules including the DSTD110A to be inserted into the rack while the controller remains operational. However, hot-swap capability depends on the specific firmware version and system configuration. ZYPLC’s technical team can provide pre-sales consultation to confirm compatibility with your existing system setup.
